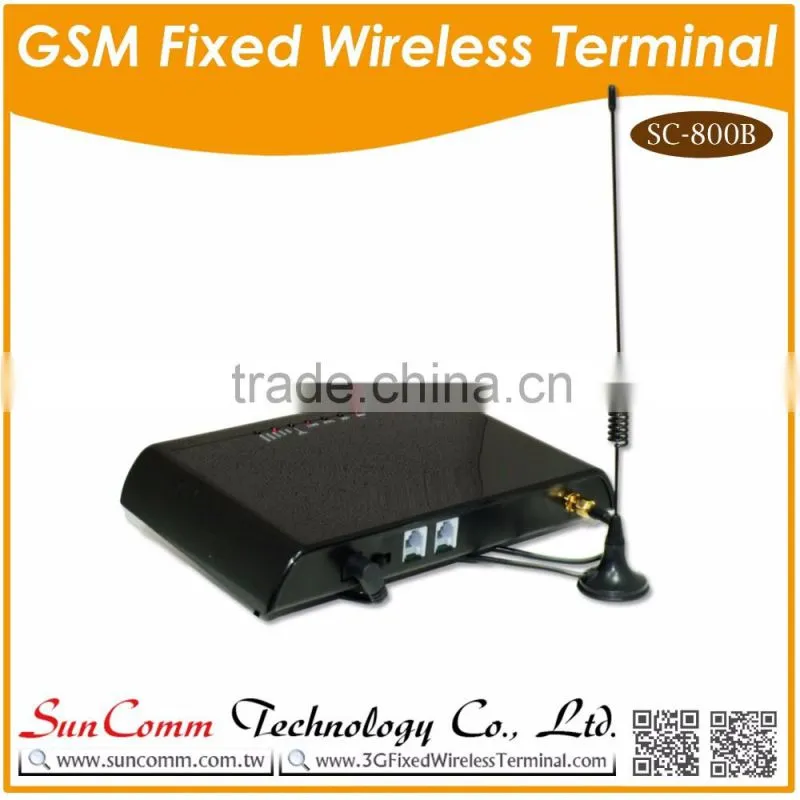

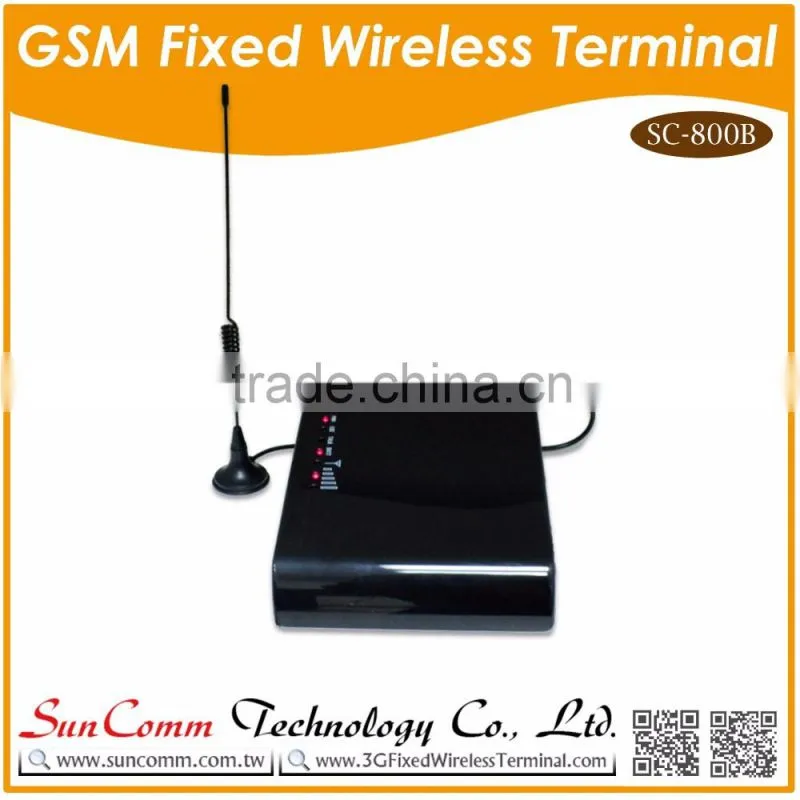

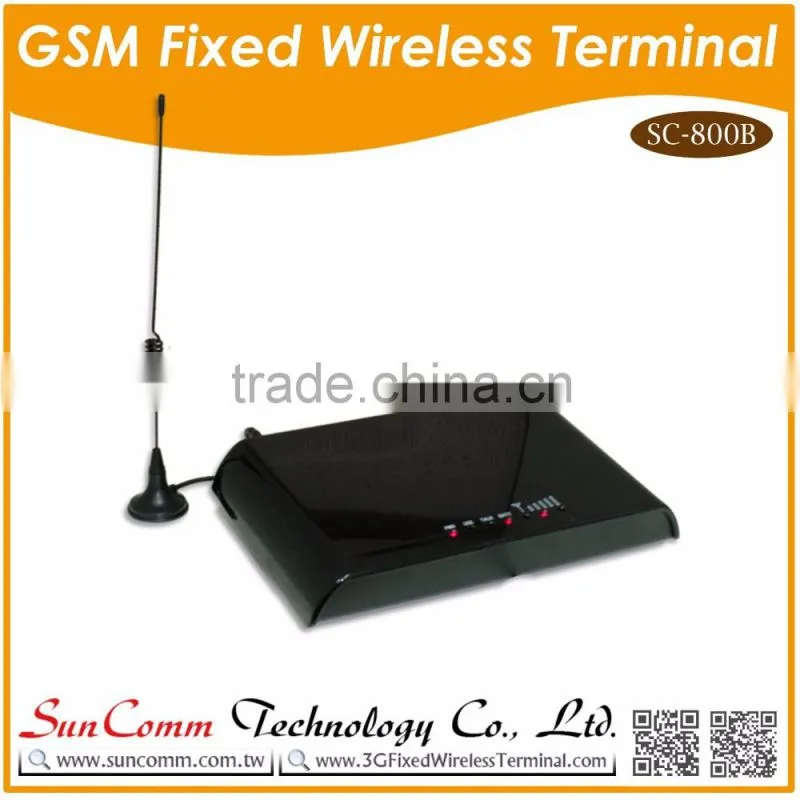

SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal

SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal thumbnail-1
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal thumbnail-2
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal thumbnail-3
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal thumbnail-4
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal thumbnail-5
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal thumbnail-6
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal photo-1
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal photo-2
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal photo-3
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal photo-4
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal photo-5
SC-800B With 1sim, 1tel, Internal Battery GSM Fixed Wireless Terminal photo-6
US$ 1 - 60 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SunComm
Model Number:
SC-800B
Contact Supplier Request Quote Chat Now
Suncomm Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SunComm
Model Number SC-800B
Type GSM
Port Number 1
Working Frequency Quadband 850/900/1800/1900Mhz

SC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminal

SC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminalSC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminalSC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminal



SC-800PB GSM Fixed Wireless Terminal with internal Battery is with LCR (Low Cost Routing) function to choose route automatically.



When you dial out from your SC-800PB, it will check the prefix Number You preset into the device, then it will call out through GSM or PSTN according to the Pre-setting rules and both GSM/ PSTN call in. When you are in phone call through GSM line, and at the same time another call to PSTN No., the caller will hear busy tone, and vice versa.



It will dial out from your mobile without distinguishing if you don’t connect the PSTN Line. and it will dial out from your PSTN without distinguishing if you don’t insert SIM Card or GSM network has no signal.



Product Description

Appearance and Structure



Material

ABS (Acrylonitrile Butadiene Styrene)



Dimension

170mm×118mm×30mm

Excluding antenna

Weight

400g

Weight of Main unit

Power Switch

Rocker switch



Power Socket

12V DC input



Phone interface

RJ11

2 RJ-11 ports

Antenna interface

SMA-female

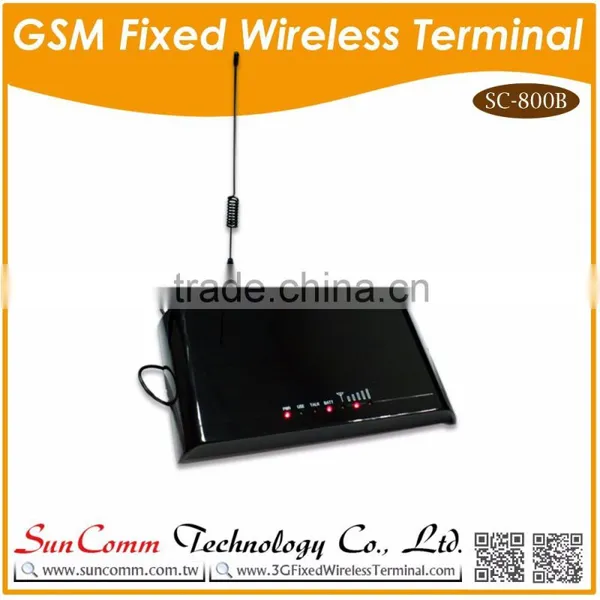

LED display

No.1: Power, No.2.in use, No.3, in talk, No.4, Battery, if have, No. 5-7, Signal strength

From left to right (front side view)

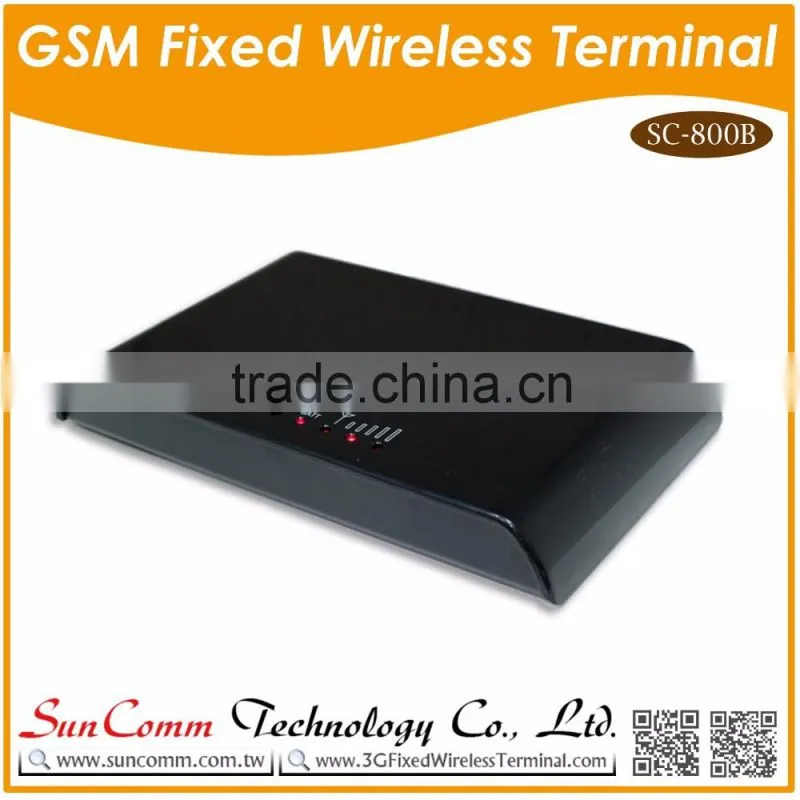

Front side

LEDs display for Signal strength, Power, Working Status, Talking and Battery indicator;



Rear side

1pcs SMA antenna connectors, 2 RJ-11 output, Power port and switch;

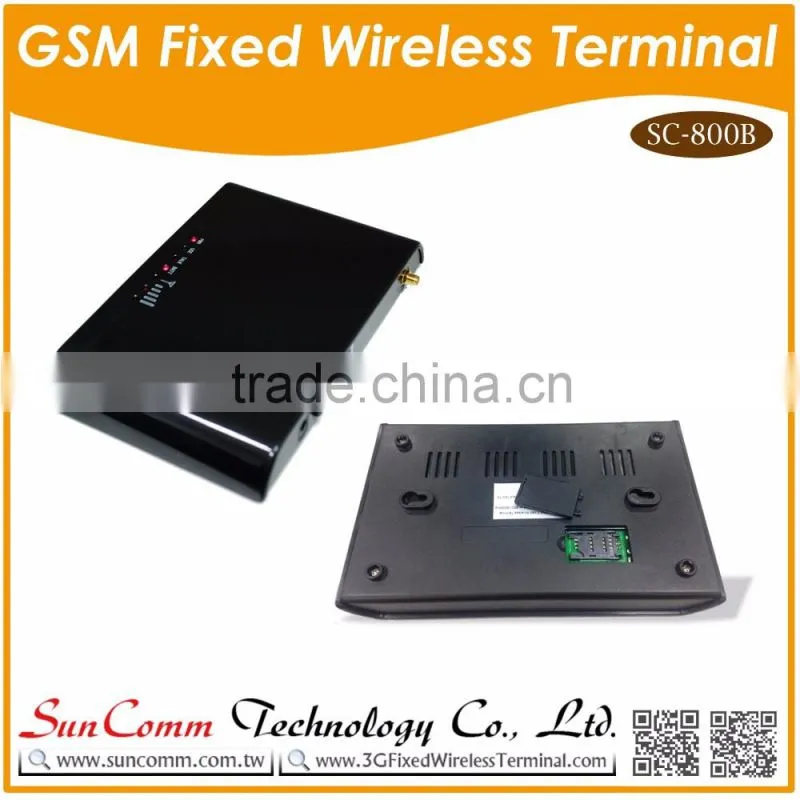

Bottom side

1pcs SIM card holder slots, you can insert SIM card into the slot.





2. Features and Functions:

♦ Auto-select economic route (Low cost routing-LCR function)

♦ GSM isn’t ready, call will be forced to dial out from PSTN.

♦ When not connecting to PSTN line, GSM will provide the forced dial-out function

♦ Simple to install and easy to maintain

♦ IMEI changeable

♦ Steady module and reliable design ensures good performance

♦ Provide optimized circuit directly connecting the exchange device for extensions.

♦ Compatible to most telephones, PBX device.

♦ Strong signals with high gain antenna

♦ Attractive plastic casing

♦ SIM card supported (1.8V,3V)

♦ Caller ID display

♦ Provides reversal polarity signal for metering

♦ No noise and clear voice

♦ Suitable for wide voltage range and low power consumption

♦ Suitable for all kinds of weather and environment

♦ RJ-11 ports (1 FXO for PSTN line and 1 FXS port)

♦ Locking PIN / network (optional)





4. Specifications:

♦ Air interface standard: GSM850/1900Mhz, 900/1,800Mhz phase 2+ full band
♦ Frequency ranges:

 A) GSM 850                                   GSM 1900:
 I) Transmission: 869.2 ~ 893.8MHz      I) Transmission: 1, 930 ~ 1, 990MHz
 Ii) Reception: 824.2 ~ 848.2MHz         Ii) Reception: 1, 850 ~ 1, 910MHz
 B) GSM 900:                                  GSM 1800:
 I) Transmission: 890 ~ 915MHz           I) Transmission: 1, 710 ~ 1, 785MHz
 Ii) Reception: 935 ~ 960MHz              Ii) Reception: 1, 805 ~ 1, 880MHz

♦ Channel space: 200Khz

♦ User line, bell signal: in line with GB/T15279

♦ Max power: 0.25W / 0.5W

♦ Consumption:

 a) Immobility: less than 25mAh

 b) Transmission: less than 400mAh

♦ Sensitivity: ♦  105dB

♦ Dial tone frequency: 450MHz (standard)

♦ Surrounding temperature:- 10℃ ~ +40℃

♦ Relative humidity: 45% ~ 90%(without frost)

♦ Atmosphere pressure: 86 ~ 106KPa

♦ Environment noise: <60dB

♦ Antenna amplifying: 3.5dB (omni directional),12dB(certain direction /chosen direction)

♦ AC power: DC 10V~20V

♦ Input: AC100~230V,50 / 60Hz

♦ Output: 12V 1A

♦ Switching type / transformer type AC adapter (optional)

♦ Connector of power:

♦ Dimensions (L × W × H)(average):185 ×135 ×22mm

♦ Weight:

 a) FWT: 450g

 b) Full set with AC adapter, antennal and box: 750g

♦ Colors: white / black (optional)

♦ Antenna connection: SMA antenna connection



5. Packing List

Name

Quantity

Remark

SC-800PB

1pcs

Dual band or Quad band

Ac-adapter

1pcs

AC- 110-240V,

DC12V/1A

Antenna

1pcs

Magnetic Antenna with 3m cable

User's Manual

1pcs

English

G.W: 0.75kg per unit. 20pcs/CTN, 16kg /CTN,CTN Size: 55cmX34.5cmX32.5cm

Packaging & Shipping

 SC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminalSC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminal







SC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminal



Our Services

SC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminal     SC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminal

SC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminalSC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminal



CE Certifications

We also have CE Certifications/ FCC ID for

SC-9039-3G, SCG-4QE/ SCG-8QE, SC-368W, SC-396-GP3G/ SC-393-GP3G

SC-9079-3G, SC-9068-GH3G

SC-800B with 1sim, 1tel, internal Battery GSM fixed wireless terminal
