HK-1052 X-Ray Fluorescence Sulfur-in-Oil Analyzer
Overview
HK-1052 sulfur-in-oil analyzer has been the overwhelming choice in the petroleum industry for years. Continuous improvements in performance and usability allow us to offer a better instrument to suit your requirements.
Our XRF sulfur analyzers comply with ASTM D4294 standard Test Method for Sulfur in Petroleum and Petroleum Products by Energy-Dispersive X-ray Fluorescence Spectrometry,while offering the most cost effective alternative for sulfur in petroleum measurement.
Features
1.Our analyzer got electromechanical integration design of computerization, large screen LCD display, man-machine dialogue operation, concise and beautiful;
2. High measurement range, fast detection speed and small quantity sample consumption.
3. We adopt Fluorescence intensity ratio analysis method, can calibrate temperature, atmospheric pressure and carbon hydrogen ratio (C/H).
5. Using disposable sample cup, can avoid cross contamination; also user may record the sample batch number, S%(m/m) date;
6. Highly accurate sample platform location, it’s very easy to put or replace oil samples.
7. Big storage for at least 1000 test datas, user may check the content detection results and calibrated curve anytime.
8. We equip thermal printer for the analyzer.
9. The analyzer is equipped with standard RS-232C interface, can be connected to each PC.
Main Application
1. Our sulfur in oil analyzer can measure crude oil, heavy oil, diesel, kerosene, gasoline, naphtha and other kinds of petroleum products.
2. It can also test coal chemical products, for example, total sulfur content in primary benzene.
3. It can also test total sulfur or sulfide content in other liquid solid powder samples.
Technical Parameters
asuring range: 7ppm~5%;
2.Accuracy: a, repeatability (r):<0.02894(X+0.1691);b reproducibility (R):<0.1215(X+0.05555);
3.sample volume: 2~3ml(sample height 3mm~4mm);
asuring period: 60,120,240,300,600 seconds,Arbitrary set;
5.single sample auto test ,measured times: 2,3,5,10,50 Arbitrary set ,it can provide AVG and standard deviation at every end of measurement;
6. Calibrated curve: our analyzer can store 9 calibrated curves, five of linear line with one unknown; 4 of Binomial parabola
7.Working Condition: temperature:5~35℃;humidity:≤85%(30℃);power:AC220V±20V,50Hz;Power: 30W;
8.Dimension and Weight: 468mm×368mm×136mm;13kg
Included Accessories
Sample cell (three parts): 200sets,
Sample cell film (6μm Mylar) 200pics
Leakage protection device (two parts)
Multifunctional pressure shaping device(two parts)
Dust shield of leakage protection device
Printing paper(57 mm in width: 30mm)
Calibration sample (10ml/piece)
Power supply wire (250V/6A) 1piece
3ml pipette 200 pieces

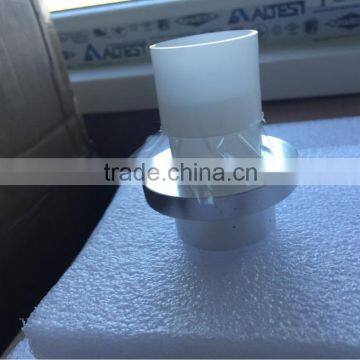

Sample cell - three parts,used for contain oil sample.
sample cell dimension
our X ray software
ASTM D4294 X ray sulfur calibration sample.

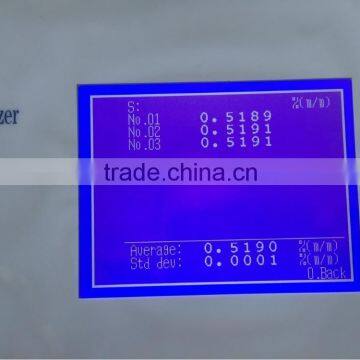

Testing Results, we can test for triple data and get the averaging value
Calibration Samples from SINOPEC Research Institute of Petroleum Processing.
| X- RAY calibration sample | |
| light oil | heavy oil |
| 0ppm | 2ppm |
| 5ppm | 5ppm |
| 50ppm | 50ppm |
| 100ppm | 100ppm |
| 150ppm | 150ppm |
| 200ppm | 200ppm |
| 350ppm | 350ppm |
| 500ppm | 500ppm |
| 700ppm | 700ppm |
| 1000ppm | 1000ppm |
| 2000ppm | 2000ppm |
| 3000ppm | 3000ppm |
| 5000ppm | 0.50% |
| 10ml/piece | 0.70% |
| 1.00% | |
| 2.00% | |
| 3.00% | |
| 5.00% | |
| 10ml/piece | |
