Home > Products > Flash Point > HK-1002B Fully automatic open (closed) cup flash point tester for petroleum products

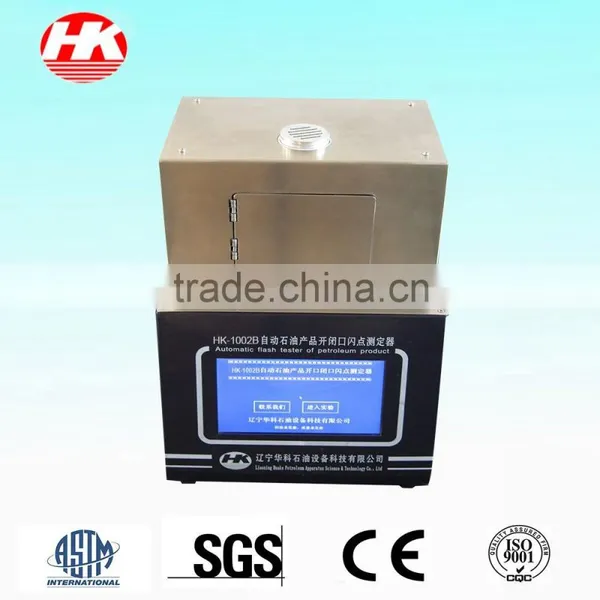

HK-1002B Fully automatic open (closed) cup flash point tester for petroleum products
- 10 Set / Sets per Month
- Dalian
- T/T Credit Card PayPal
- Automatic Doypack Seal Machine (insert and sealing machine)
- Sand Water Filter/Water treatment plants
- Liquid level transmitter
- IPX3/IPX4 Hand-held Water Spray Nozzle Test Device IEC 60529
- IPX5,IPX6 Jet Nozzle of IEC 60529, Brass material
- Adjustable and multifunctional Spring Impact Hammer IK01-IK07 Level Tester
Product Details
Place of Origin: | Liaoning, China | Brand Name: | HK | Model Number: | HK-1002B |
Product Description
Overview
Most of the open cup and closed cup flash point testers for petroleum products presently used in testing of petroleum products national wide are manually operated. The so-called full automatic instrument can not realize the full automatic function, only semi-automatic in fact. The open cup and closed cup flash point tester is a fission machine, not combined one. We take advanced Russian technology to combine the open cup flash point tester with the closed cup flash point tester for petroleum products, simultaneously on-line testing the burning points of open and closed cup. Full automatic open (closed) cup flash point tester for petroleum products changes traditional idea and adopts advanced technology, and it is a real full automatic integrated machine. The machine uses high precise electronic temperature sensor, automatic ignition, automatic result display, and it is easy to operate and integrates open cup with closed cup flash point tester. At present, the demands for such instruments exceed supplies in Russian and other countries, and large quantities of the instruments were sold to markets abroad. The test result of the instrument meets US ASTM standard, Russian standard and Chinese standard. The product is applicable to the advanced technology products in line with international practice. Customers are welcomed to use the speedy, simple and precise full automatic open (closed) cup flash point tester.
Technical parameters
Measurement range for flash temperature:
closed cup flash point: 30~260°C
open cup flash point: 102~280°C
Range of permissible absolute error of the recorder:
Closed cup flash point: 30~104°C(including 104°C) ±2°C
over 104°C ±5°C
Open cup flash point: ±5°C
Convergence of measurement results (recurrence rate):
Closed cup flash point: 30~104°C (including 104°C) 2°C
over 104°C 5°C
Open cup flash point: 5°C
Repeatability of measurement results:
Closed cup flash point: 30~104°C(including 104°C) 4°C
over 104°C 8°C
Open cup flash point: 16°C
Heating rate before flash point of the test sample: 5~6°C /minute
Discontinuity of spark-discharge, second:
Closed cup flash point: 30~104°C(including 104°C)≤10°C
over 104°C ≤24°C
External dimensions: 300×260×180mm(L×W×H)
Weight: less than 10kg
Consumed power: less than 70VA
Supply voltage: 220+10%-15%
Frequency: 50±1Hz
gas tank holder
