Specifications
We are manufacturer and OEM1.Frequency Range:DC-3GHz
2.High quality and Reasonable price
3.Short Lead Time&Fast Delievery

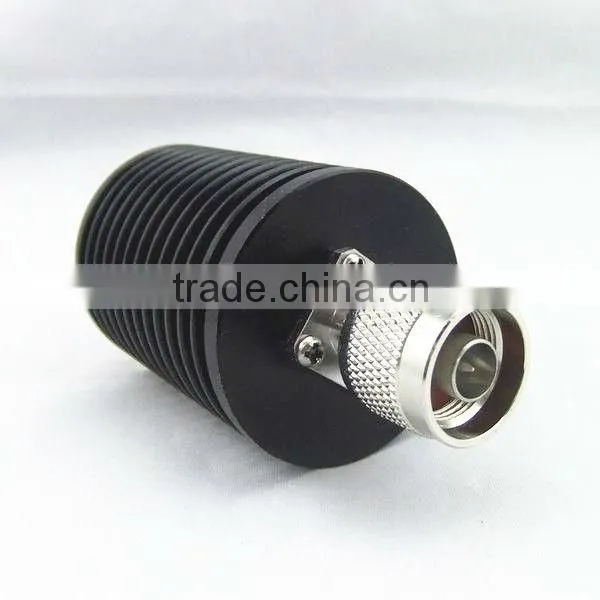

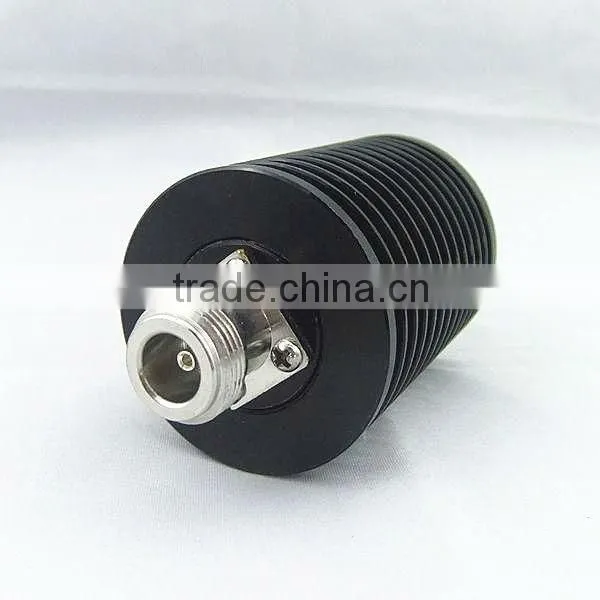

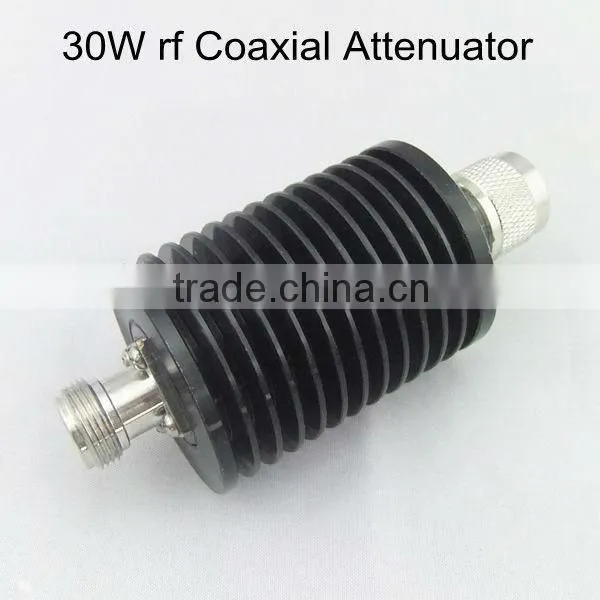

Techanical Specifications of 30W RF Coaxial Attenuator DC-3.0GHz 10dB:
Model |
YF-RFCA-30W-N |
Frequency( GHz ) |
DC-3.0GHz |
Impendence(Ohm ) |
50 Ohm |
VSWR |
≤1.20:1 |
Application |
Indoor |
Attenuation( dB ) |
6/10/20/30/40/50/60dB |
Tolerance( dB ) |
±2.0 |
Interface |
N-male/N-female |
Temperature( °C ) |
-40 ~ + 80 |
IP Grade |
IP60 or IP65 |
Color |
Black |
Average Power ( W ) |
30W |
Weight(kg) |
0.175kg |
Note:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
30W Coaixal RF Coaxial Attenuator is just one of SETSAIL's RF Attenuator Products Line. SETSAIL is capable of manufacturing and providing 1w,2w,5w,10w,25w,30w,50w,100w,200w
Coaxial Attenuator.The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G,DC-20,DC-26G.RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type
Applications:
Attenuators are used in a wide variety of applications and can satisfy almost any requirement where a reduction
in power is needed. Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers,
reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design.
Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
1.Mobile Communication Network Optimization and In-door distribution system.
2.Cluster communication, satellite communication,shortwave communication and hopping radio.
3.Radar, electronic navigation and electronic confrontation.
4.Aerospace equipment system
