DC-3GHz 100w 3/6/10/20/30/40/50/60dB rf Coaxial Fixed Attenuator
- 500 Piece / Pieces per Month
- Shanghai/Ningbo/Shenzhen
- T/T Credit Card
- 30dB rf Coaxial Attenuator 50W N type DC-3GHz
- 3/5/6/10/20/30/40/50/60dB N type 30w RF Coaxial Attenuator (DC 0-3000MHz)
- 30dB N type Coaxial RF Attenuator 25W
- RF 20dB N type Coaxial Fixed 20W Attenuator (DC-8GHz)
- Good quality DC- 8GHz 20 W 20dB RF Coaxial Attenuator
- China supplier DC- 8GHz 20 W 20dB RF Coaxial Attenuator competitive price
Product Details
Place of Origin: | Anhui, China | Brand Name: | SETSAIL | Model Number: | YFTX-RFCA-100W-N |
Packaging Details
1.Standard Export Cartons for 100w rf Coaxial Fixed Attenuator 2. Dimensions of Carton: 450mm*340mm*350mm 3.Quantity in Each Carton: 50pcs 4. Gross Weight of Each Packing Carton: Around 30kg
Product Description
Specifications
1.We are manufacturer and OEM2.Frequency Range:DC-3GHz
3.Short Lead Time and Fast Delievery
4.High quality and Best price
Techanical Specifications of 100w RF Coaxial Attenuator 6/10/20/30/40/50/60dB:
Model | YF-RFCA- 5W-N | YF-RFCA- 10W-N | YF-RFCA- 30W-N | YF-RFCA-- 50W-N | YF-RFCA-100W-N | YF-RFCA-200W-N | ||||
Frequency( GHz ) | DC-3.0GHz | |||||||||
Impendence(Ohm ) | 50 Ohm | |||||||||
VSWR | ≤1.20:1 | |||||||||
Application | Indoor | |||||||||
Attenuation( dB ) | 3-6dB | 10dB | 20dB | 30dB | 40dB | 50dB | 60dB | |||
Tolerance( dB ) | ±0.5 | ±0.8 | ±1.0 | ±1.0 | ±2.0 | ±2.5 | ±3.0 | |||
Interface | N-male or N-female or DIN-male or DIN-female or SMA-male or SMA-female | |||||||||
Temperature( °C ) | -40 ~ + 80 | |||||||||
IP Grade | IP60 or IP65 | |||||||||
Color | Black | |||||||||
Average Power(W) | 1-5W | 10W | 30W | 50W | 100W | 200W | ||||
Weight(kg) | 0.080 | 0.110 | 0.175 | 0.420 | 0.705 | 2.610 |
Note:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
Applications:
1.Mobile Communication Network Optimization and In-door distribution system.
2.Cluster communication, satellite communication,shortwave communication and hopping radio.
3.Radar, electronic navigation and electronic confrontation.
4.Aerospace equipment systems.

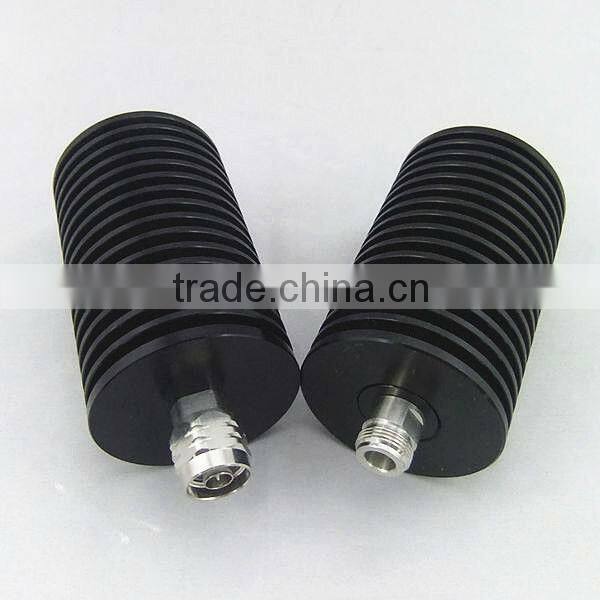

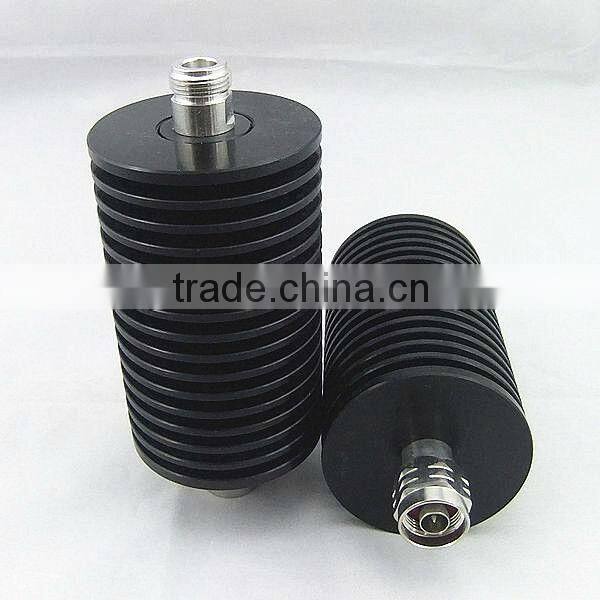

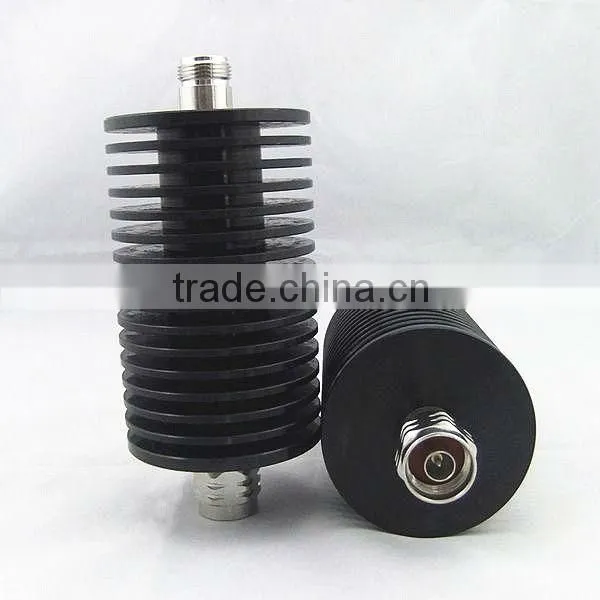

100w RF Coaxial Attenuator:

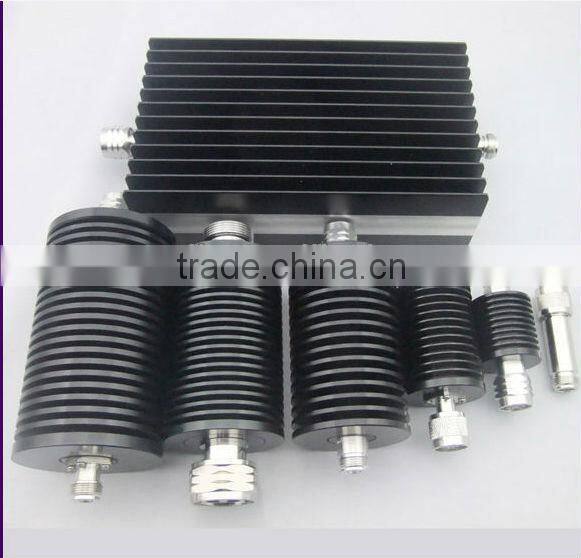

5W/10W/30W/50W/100W/200W RF Coaxial Attenuator:
Company Profile
Hefei Setsail Telecom,Co,Ltd (established in 2002) is an Professional
Manufacturer of RF Passive Components:Power Spliter, Directional
Coupler, 3dB Hybrid Coupler, Combiner, Dummy Load/Termination, Attenuator, Duplexer, Isolator, Cable, Connector and Antenna.
1. Hefei Setsail Telecom,Co,Ltd is established in 2002.located in Hefei National Hi-tech Industry Development Zone.We focus on Microwave Technology Research,RF,Microwave Components and System Industry Development.Our products are widely used in communication network,satellite orientation,radar and military field.We offer a highly diversified product line that serves top tier telecom,satellite companies.
2. Products include 10 series and 100 designs with their own property right and authority approval.The products line have Hybrid Coupler,Power Splitter,Directional Coupler ,Coaxial Attenuator,Coaxial Termination,Cable
Assembly,Connector,Arrester,Filter,Duplexer,Combiner and so on .Customer designs (OEM/ODM) are also available.
3. Headquarters of Setsail is located at hi-tech developing district in Hefei Anhui,includeing two factories, At the same time,Setsail's market network has been all over the world.
4. Setsail company has a tremendous fellowship that is compased of many high-level technologists .And also has established a research institution which cooperating with some famous universities.(University of Science and Technology of China.)
5.All the staffs are filled with confidence ,attending the market cpmpetition and offering clients the exquisite technology,reasonable price,excellent quality and best service.
