Specifications
Hydraulic Traveling Head Cutting Machine1.bag cutting machine
2.excellent operating visual field
3.gantry frame structure
Description:
Hydraulic Traveling Head Cutting Machine
USE AND CHARACTERISTICS:
1. Gantry frame structure made of profile steel is adopted, with high intensity and
without deformation.
2. The cutting head can automatically move horizontally, with excellent operating
visual field and safe and reliable operation.
3. The hydraulic system specially designed is featured by low noise and low oil
consumption.
4. The lifting position of pressing board can be freely set to reduce idle travel and
enhance work efficiency.
5. The movement of cutting head is controlled by automatic speed variation to realize
flexible movement with high speed and accurate positioning and without impact.
6. Differential oil way is adopted to allow rapid and convenient cutting.
7. Products of special specifications can be customized.
Main technical parameters:
| Model number | JSJX T250 | JSJX T250A | JSJX T250B | JSJX T500 | JSJX T500A | JSJX T500B |
| Max Cutting Force | 250KN | 250KN | 250KN | 500KN | 500KN | 500KN |
| Worktable Area | 1600×500mm | 1800×500mm | 2000×500mm | 1600×550mm | 1800×550mm | 2000×550mm |
| Cutting Head | 500×500mm | 500×500mm | 500×500mm | 550×550mm | 550×550mm | 550×550mm |
| Adjustable Stroke | 5-150mm | 5-150mm | 5-150mm | 5-150mm | 5-150mm | 5-150mm |
| Main Motor Power | 2.2KW | 2.2KW | 2.2KW | 4.0KW | 4.0KW | 4.0KW |
| Electric Supply VoltageMachine Dimensions | 3x440/415/400/380/220/200V, 50/60 HZ | |||||
| 2200×720×2000mm | 2400×720×2000mm | 2600×720×2000mm | 2200×720×2000mm | 2400×720×2000mm | 2600×720×2000mm | |
| Weight | 1600kg | 2100kg | 3000kg | 3000kg | 3800kg | 5000kg |

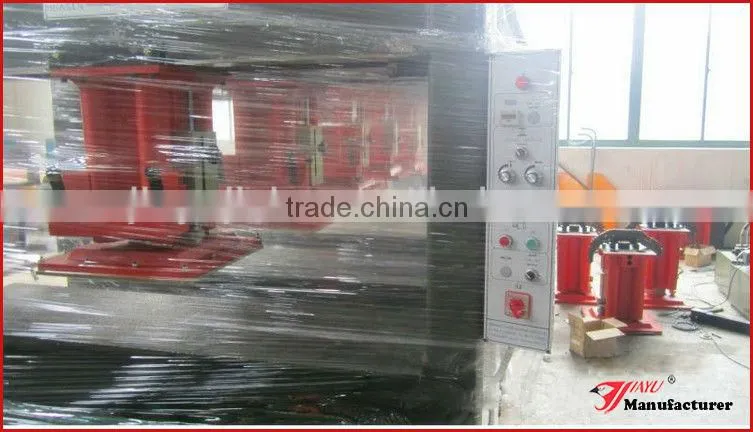

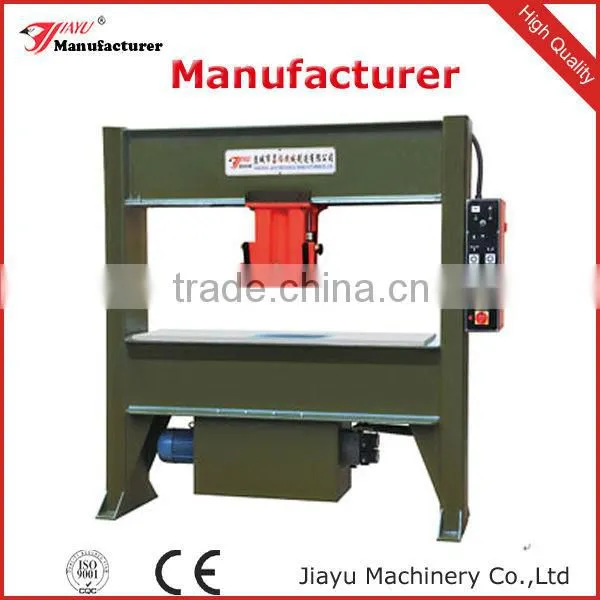

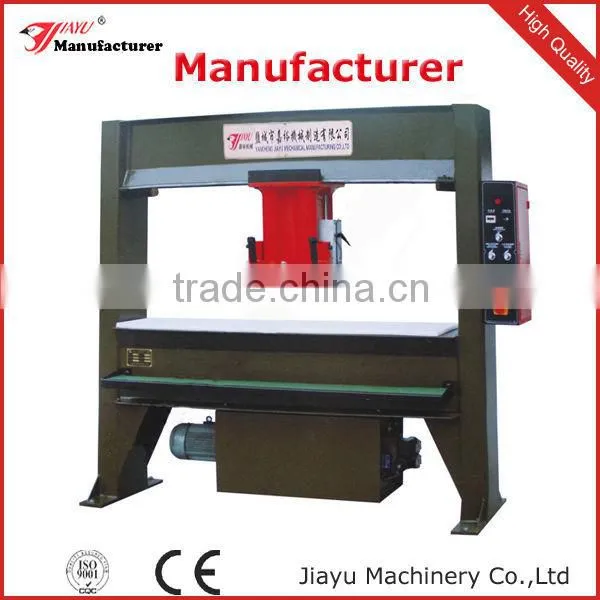

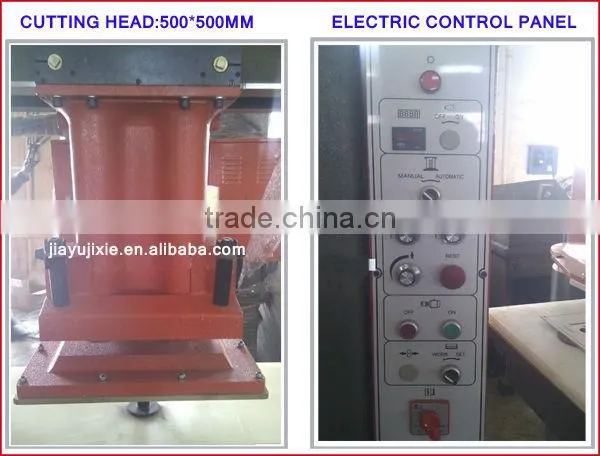

Product Pictures:
Contact Information:
Welcome to vist our factory.
We'll offer you the quotation as soon as possible once receive your inquiry,so please don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
Factory direct sale; Guarantee Period one year.
