It is used to cut one layer or multi-layer of leather, rubber, plastic, hard papers, fiber, and chemical fiber.

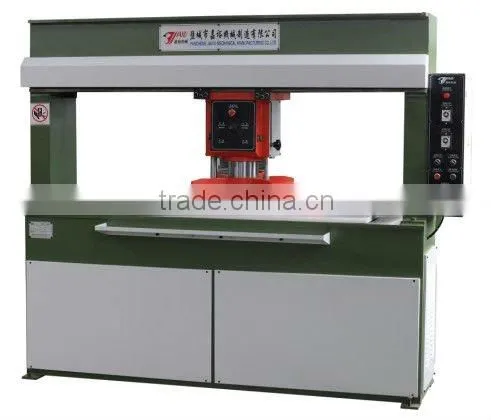

XCLLP2-250 Hydraulic Travelling Head Cutting
MachineIt is used to cut one layer or multi-layer of leather, rubber, plastic, hard papers, fiber, and chemical fiber;
1. Gantry frame structure is adopted, with high intensity and without deformation.
2. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
4. The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.
5. Differential oil way is adopted to allow rapid and convenient cutting.
Main technical parameters:
Maximum cutting force |
25 Tons |
Adjustment range of travel |
5-150mm |
Size of worktable |
1600×510mm |
Cutting head size |
500×500mm |
Electric Supply Voltage |
3x440/415/400/380/220/200V, 50/60 Hz |
Main motor power |
2.2KW |
Packing size |
2320×750×2200mm |
Machine weight |
1700Kg |
