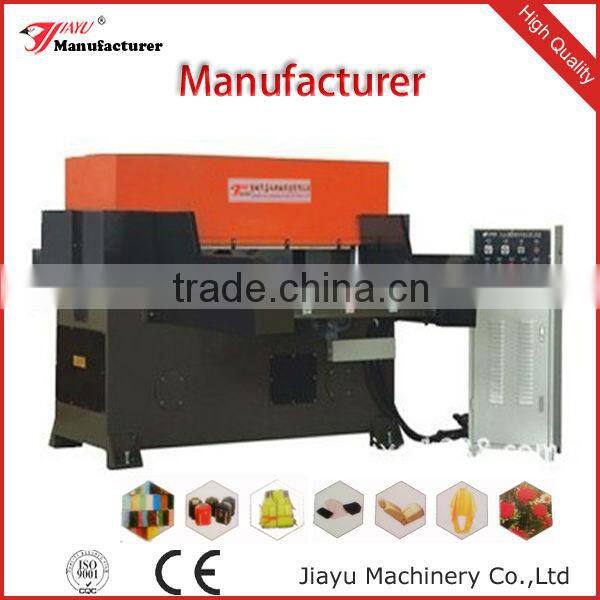

80T XCLP3 die cutting machine for healthcare shoe
Description:
80T XCLP3 die cutting machine for healthcare shoe
Use And Character:
1.The machine is applicable for whole-broken or semi-broken operation of various nonmetal slices materials by die cutter. For example: such industries as plastics packing, pearl cotton packaging, rubber and printing etc.
2. Microcomputer controlled(MITSUBISHI or SIEMENS PLC), with simple ,prompt and accurate operation.
3.The main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism, which an guarantee that the cutting depth at every cutting position is same.
4. The pressing board carries out slow cutting when it presses downward to contact the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees the service life and precision of machine.

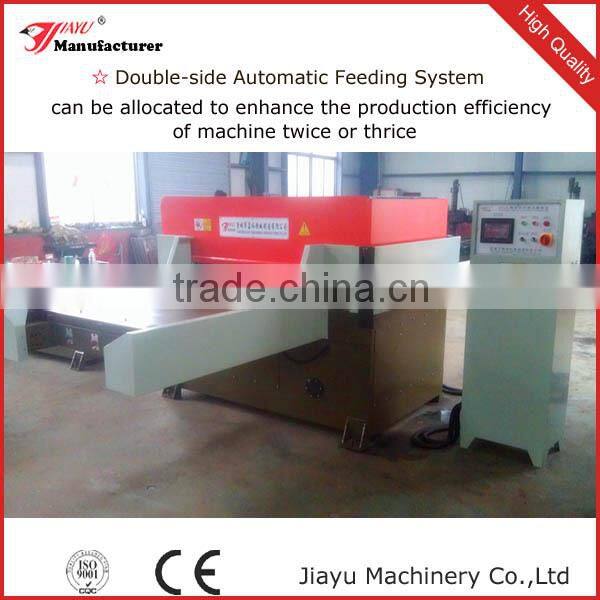

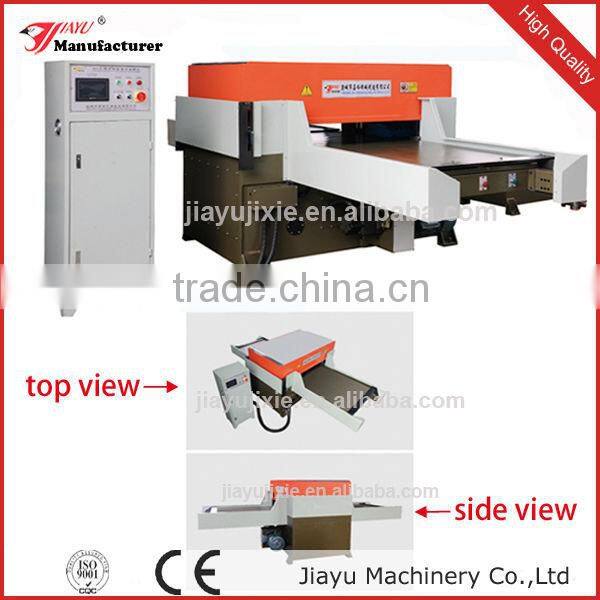

6.Single-side or double-side automatic feeding system can be allocated to enhance the production efficiency of machine twice or thrice.
7. Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.
8. Die cutter pneumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt.
9.Products of special specifications can be specially designed and manufactured according to customer requirements.
Optional: 1) single-side and double-side automatic feeding systems;
2) cutting board micro-movement device;
3) die cutter pneumatic clamp device.
Main Technical Parameters:
| Maximum cutting force | 40Tons | 50Tons | 60Tons | 80Tons | 100Tons | 150Tons | 200Tons |
| Distance from upper pressing board to worktable | 50-200mm | 50-200mm | 50-200mm | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Cutting area | 1600×610mm | 1600×800mm | 1600×900mm | 1600×900mm | 1600×900mm | 1600×1000mm | 1600×1000mm |
| 1400×610mm | 1400×800mm | 1400×900mm | 1400×900mm | 1400×900mm | 1400×1000mm | 1400×1000mm | |
| Main motor power | 3KW | 4KW | 5.5KW | 7.5KW | 7.5KW | 11KW | 11KW |
| Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz | ||||||
| Machine weight (approximate) | 3000Kg | 4000Kg | 5500Kg | 6500Kg | 8000Kg | 10000Kg | 12000Kg |
| 2800Kg | 3700Kg | 5000Kg | 6000Kg | 7600K | 9200Kg | 11200Kg | |

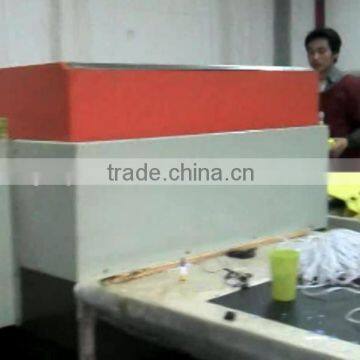

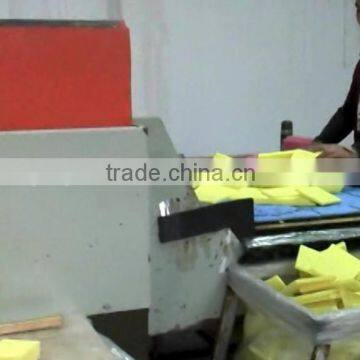

Product Pictures:
Contact Information:

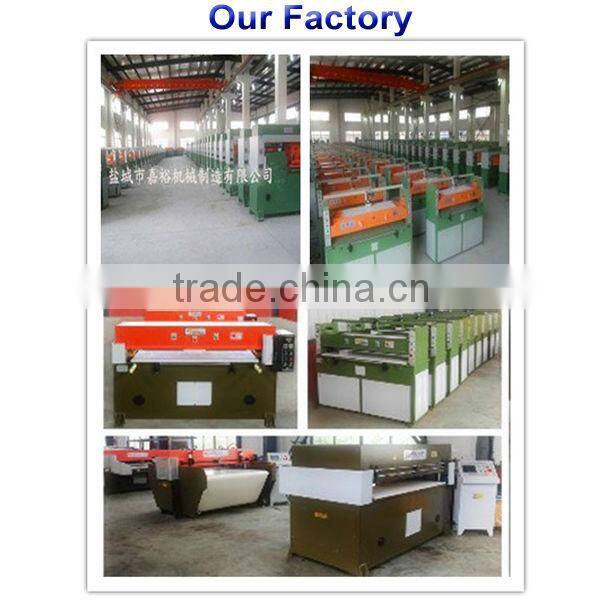

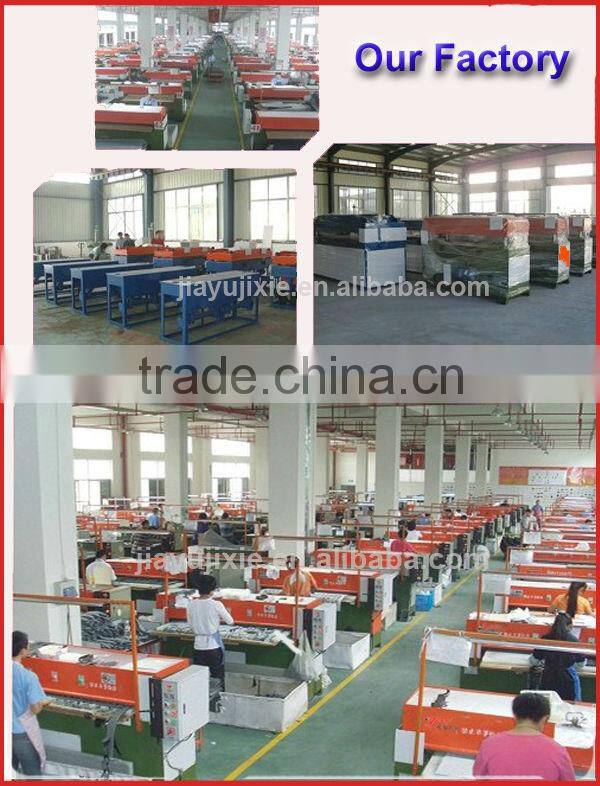

Welcome to visite our factory.
We'll offer you the quotation as soon as possible once receive your inquiry,so please don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
Factory direct sale; Guarantee Period one year.
