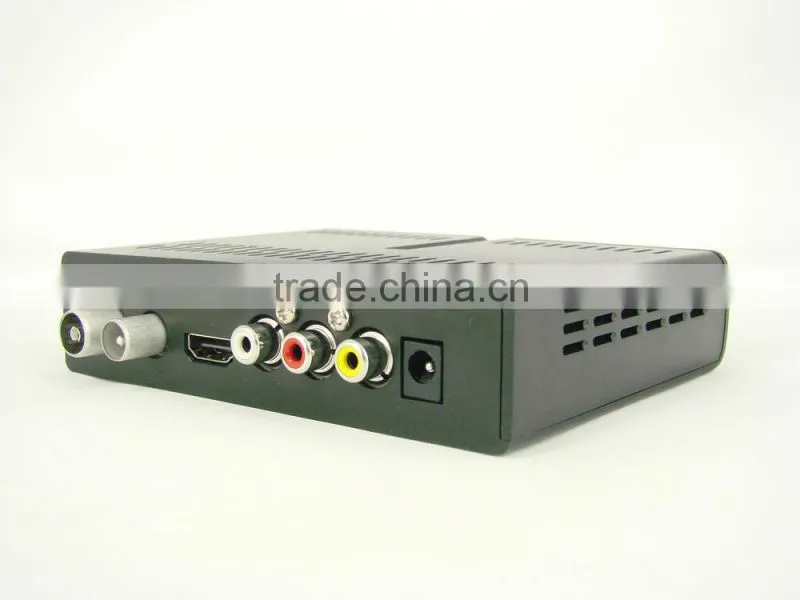

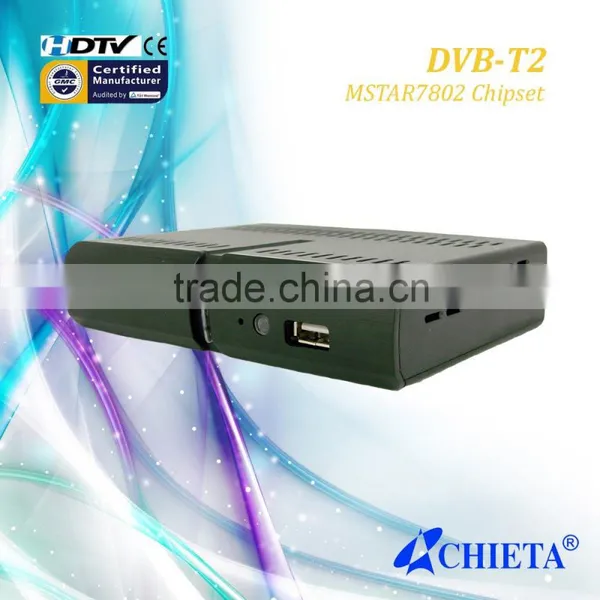

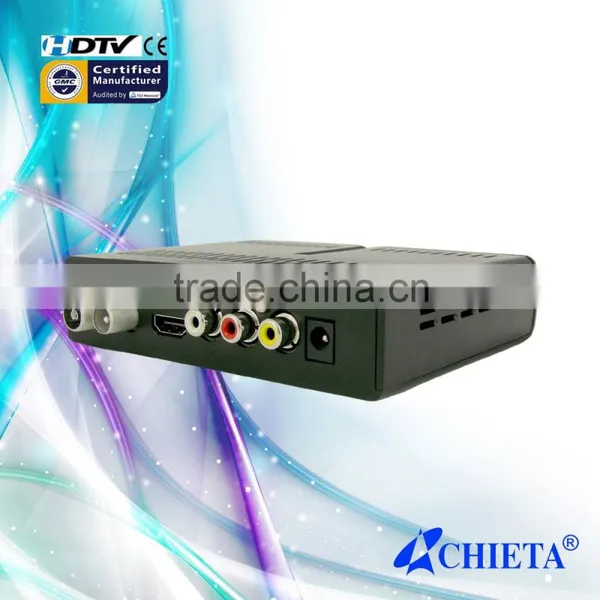

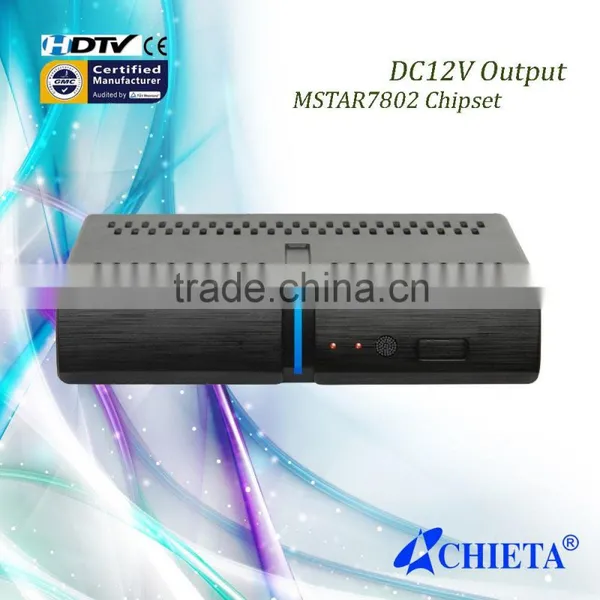

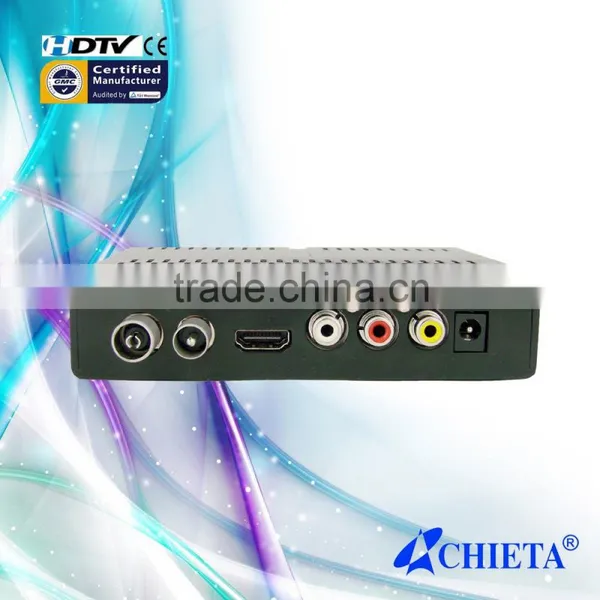

Low Cost Mini DVB-T2 Full HD 1080p Digital TV Set Top Box
US$ 10 - 20
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chieta DVB-T2
Model Number:
DVB-T2-008 TV Box
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai/ Shenzhen/ Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Full HD 1080p DVB-T2 Terrestrial TV Receiver Tuner Set Top BoxUS$ 10 - 20MOQ: 2000 Pieces -
Cheap DVB-T Terrestrial Digital TV Tuner BoxUS$ 10 - 20MOQ: 2000 Pieces
-
Full HD 1080p DVB-T2 Terrestrial Digital TV Receiver DecoderUS$ 10 - 20MOQ: 2000 Pieces
-
Low Cost 1080P DVB-T2 Digital Terrestrial TV Tuner BoxUS$ 10 - 20MOQ: 2000 Pieces
-
Hot Item Full HD DVB-T2 TV Decoder Set Top BoxUS$ 10 - 20MOQ: 2000 Pieces
Place of Origin
Guangdong, China
Brand Name
Chieta DVB-T2
Model Number
DVB-T2-008 TV Box
Low Cost Mini DVB-T2 Full HD 1080p Digital TV Set Top Box
Product Description
* Fully compliant with DVB-T2 standard
* MPEG-2 MP@ML/ MPEG-4, H.264 SD& HD Decoding
* MPEG Layer 1& 2, Stereo Audio Decoding(Optional)
* Supports AVI, MPG, VOB, MPEG, DIV, etc multimedia play formats
* Video resolution support: 1080P/ 1080i/ 720P/ 720i/ 576
* Multi language menu supported
* 1000 TV channels and radio programs available
* Supports USB upgrade, PVR playback
* Standard Electronic Program Guide(EPG)
* Supports multi-search function, including automatic/ manual/ list search
* Screen display ratio: 4:3 and 16:9
* Various channel editing function(Favorites, Move, Skip, Lock, and Delete)
* Switch power supply of AV 90-250V
Specification Detail
| MPEG4 | Fully SD/HD DVB-T/T2, SD/HD MPEG2 and MPEG4 AVC H.264 |
| Resolution | Full HD,support up to 1080P |
| PAN/NTSC | Automatic PAL/NTSC conversion |
| Scan | Auto and manually scan all available TV and radio channels |
| Channels Number | Aspect ratio 16:9 and 4:3, 1000 channels memory |
| OSD Language | OSD language:Arabic, Bosnian, French, German, Russian, English |
| EPG | Small windows screen picture with EPG graphic menu,7-Day EPG function |
| Channel Search | Auto search & Manual search function |
| SoftUpgrade | Software upgrade via USB |
| Teletext | Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle, compliant with ETS1 |
| control | Parental control |
| Save Channel | Automatic save for last channel |
| LCN | Support Logic Channel Number(LCN) |
| USB | USB2.0 Front Panel, |
| Multimedia Format | Picture: JPEG,BMP,PNG |
| Audio: MP3,WMA | |
| Video: DivX,MPG,MKV,MP4,AV | |
| 1.Main Chip Sets | MSTAR7802 |
| Flash Memory | 32MB Serial Flash |
| DDR2 Memory | 512MB |
| Demodulator IC | |
| 2.Tuner | |
| Input Frequency | VHF: 174~230MHz,UHF: 470~862MHz |
| RF input Level | -20~-81dBm |
| IF Bandwidth | 7MHZ and 8MHZ |
| Modulation | QPSK,16QAM,64QAM,256QAM |
| 3.USB Decode | |
| DVR supporting | Stereo/MONO/Left/Right |
| Media Supporting | USB2.0 Port, playback the media in USB flash disk or USB HDD |
| USB2.0 HOST | DVR with USB HDD, Time shifting with USB HDD |
| 4.Multimedia support format | |
| music | MP3,WMA |
| photo | JPEG,BMP,PNG |
| 5.Video Decode | |
| Decode Format | MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format, H.264MP@HL, VC-1,RM&RMVB(Optional) |
| Output Format | 1080p,1080i,720p,576p,576i,480p,480i |
| Aspect Ratio | 4:3/16:9/Letterbox/ selectable |
| Output Port | HD(V1.3C),YPbPr,CVBS |
| 6.Audio Decode | |
| Decode Format | MPEG-1,MPEG-2 (Layer I/II),MP3 |
| Audio output | S/PDF(Coaxial),RCAX2(L/R) |
| 7.AV Output | |
| Video Bandwidth | 5.5MHz(-3dB) |
| Video Impedance | 75Ω |
| Video Voltage Level | 1.0 Vp-p |
| Audio Freq. Range | 20~20KHz |
| Audio Impedance | 600Ω |
| Audio Voltage Level | 2V rms(5.6Vp-p) |
OSD Menu View
Certifications
Packaging & Shipping
| Unit Packing Size | PCS/ Carton |
| N/A | 30 pcs |
| Carton CBM (0.03m3) | QTY per Container |
| N/A | 20GP: 14000pcs |
| Box Type | 40GP: 27000pcs |
| Color/ Neutral | 40HQ: 34000pcs |
| Unit Weight: | Carton Weight: |
| 307kg | 10.0kg |
