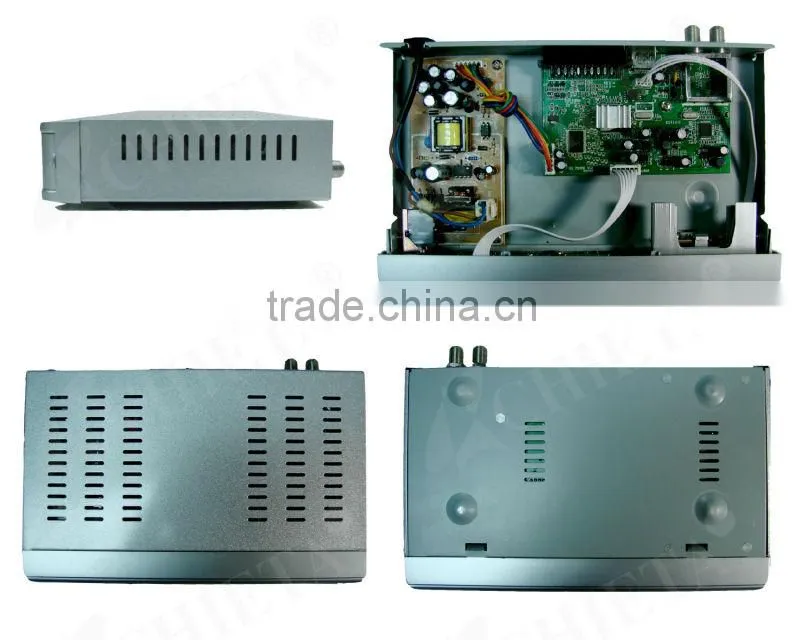

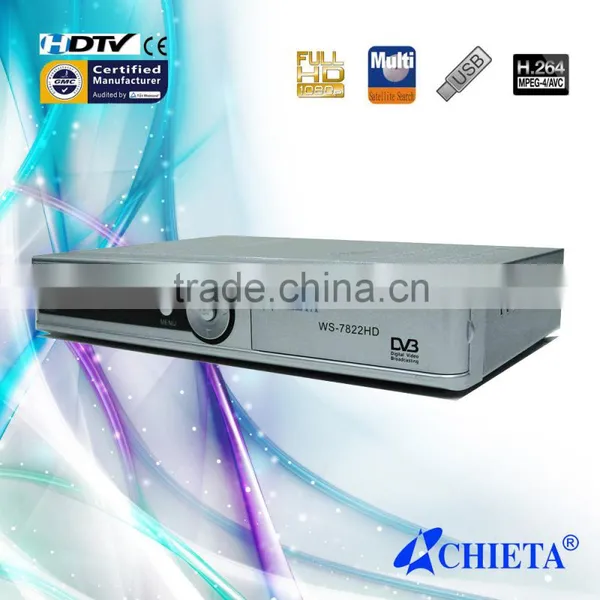

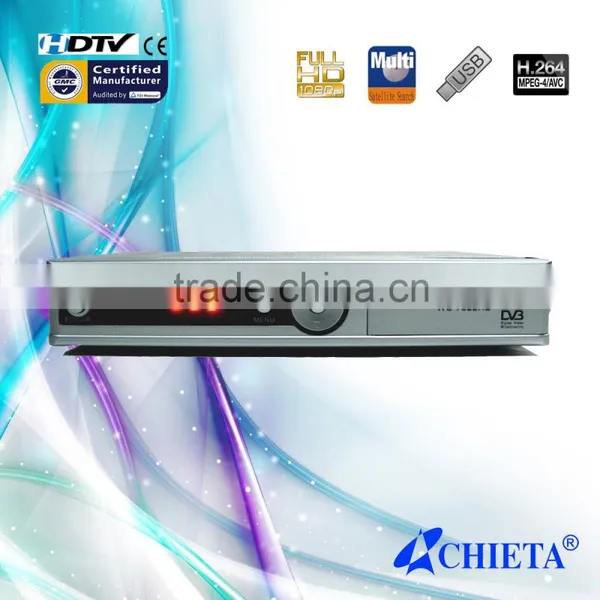

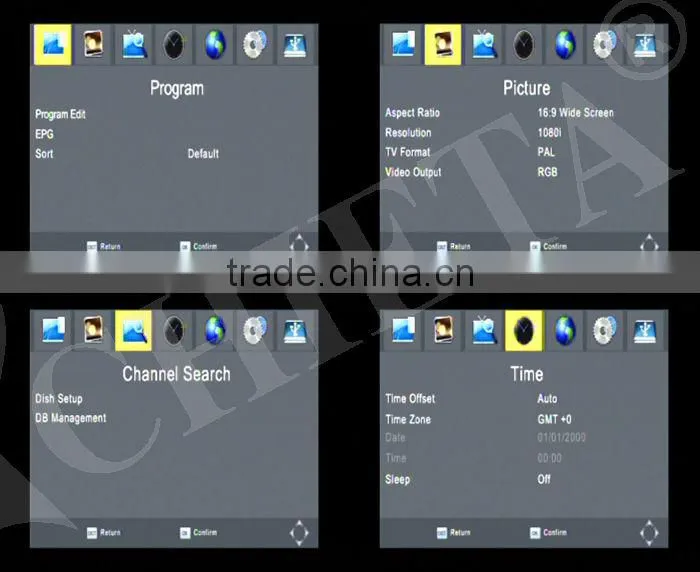

HD DVB-S2 Satellite Digital TV Tuner Decoder

English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech

Input Frequency

950~2150MHz

Loop Out Frequency

950~2150MHz

Input Level

-65~ -25dBm

Input Impedance

75Ω

LNB Power

Auto/14v/18v/OFF

Video Decoder

Video Compression

MPEG-2& MPEG-1 compatible, H.246

Video Formats

4:3 / 16:9

Letterbox for 4:3 TV-Device

Audio Decoder

Audio Compression

MPEG-1 & MPEG-2 Layer I and II, MP3

Audio Mode

Dual (main/sub), Stereo

Frequency

32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz 24 kHz

Digital Output

Output Level

0,5 Vss on 75 Ohm

Sampled Data Filtering

32 kHz, 44.1 kHz, 48 kHz

S/PDIF-Output optical, Toslink

Video Parameter

Input Level

FBAS 1 Vss +/- 0.3 dB on 75 Ohm

Teletext filter in conformity with ETS 300 472 Standard

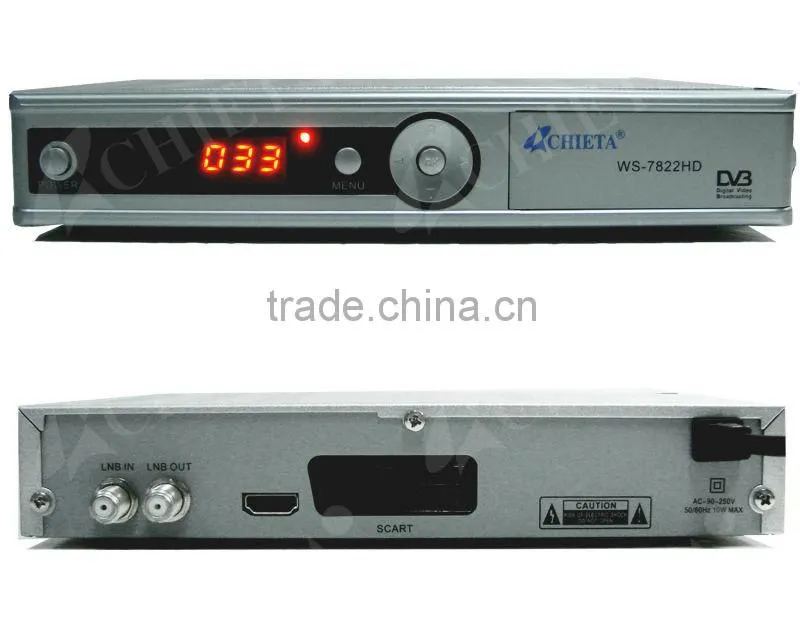

Console Interface

LNB In

IEC169-24.F-Type.Female

LNB Out

IEC169-24.F-Type.Female

Video Output

1×CVBS/1×YpYbYr/1×HD port(optional)

Audio Output

1×RCA

USB

1×USB2.0 Host Type-A

LNB Power and Polarisation Per Tuner

LNB Voltage Vertical

< 14V no load, > 11,5V at 400mA

LNB Voltage Horizontal

< 20V no load, > 17.3V at 400mA

Count of Active Satellite Position

DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION

DiSEqC - Rotor Control
