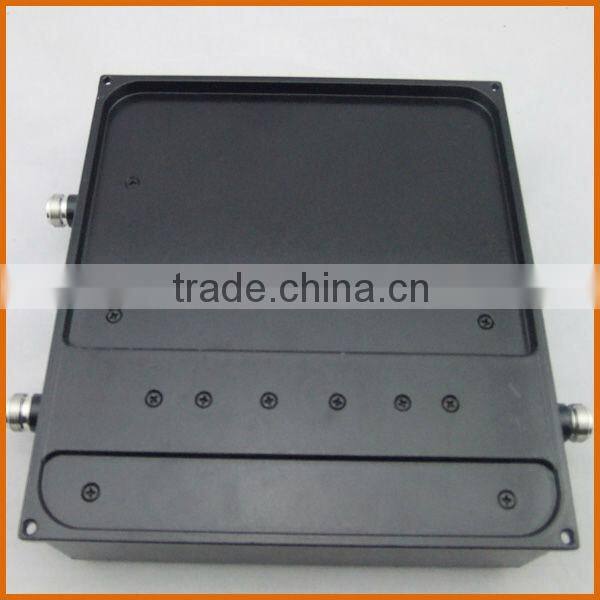

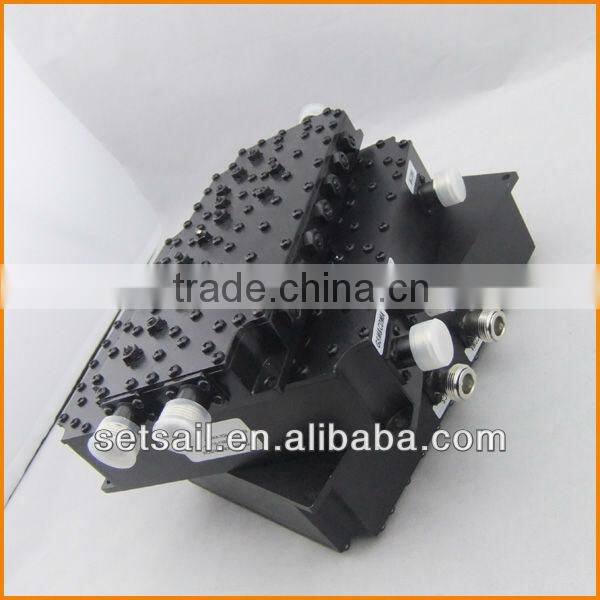

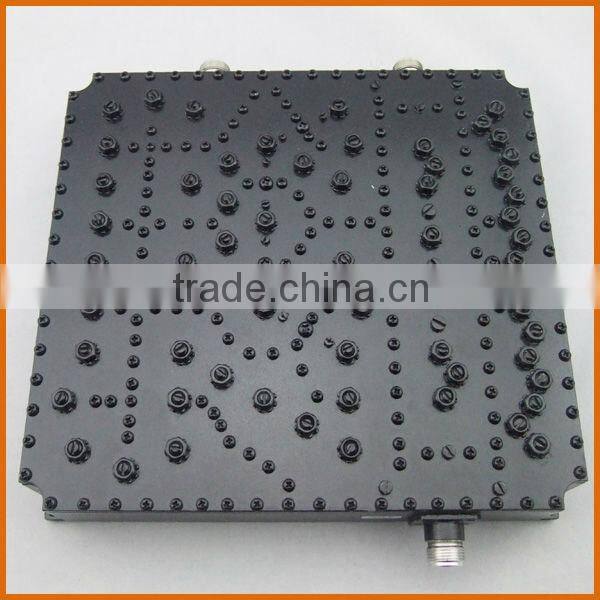

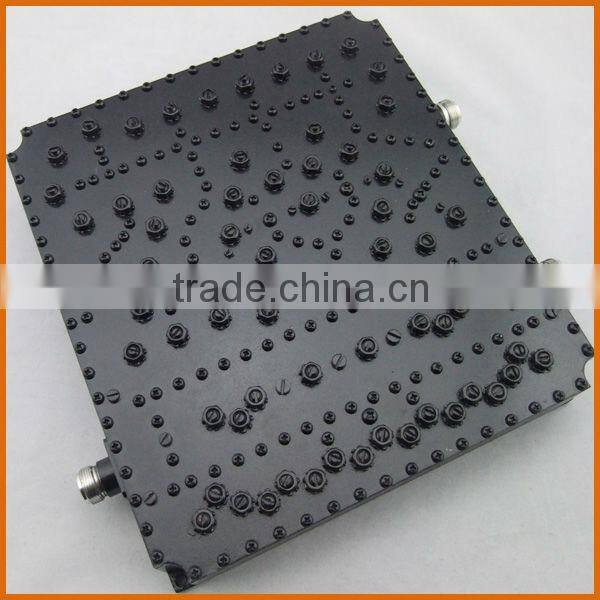

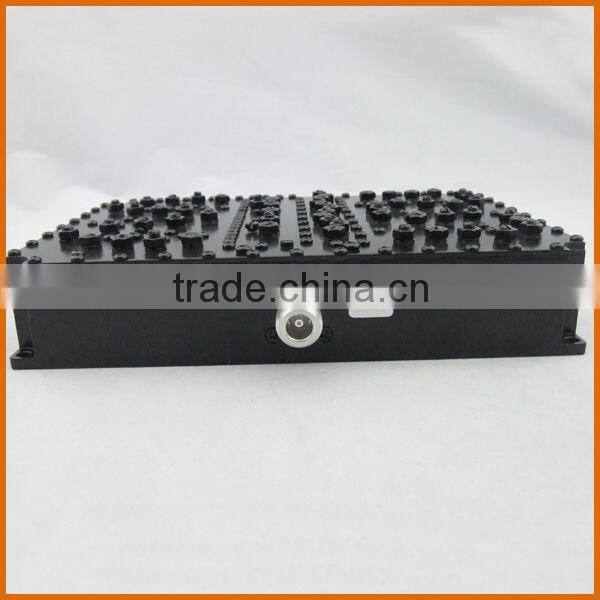

GSM&DCS&TD(F&A&E)/WLAN Diplexer
Technical Specifications:
Model | YF-RFCOM-2-03N | |
CH1:GSM&DCS&TD(F&A&E) | CH2:WLAN | |
Frequency(MHz) | 885-954&1710-2025& 2300-2380MHz | 2400-2500MHz |
Insertion Loss(dB) | ≤0.9dB | ≤1.0dB |
Passband Ripple(dB) | ≤0.4dB | ≤0.7dB |
Out band Rejection(dB) | ≥80@CH2 | ≥80@CH1 |
VSWR | ≤1.25 | |
IM3 | ≤-120dBc or -140dBc@2×43dBm | |
Impedance(ohm) | 50 | |
Power(W) | 200 | |
Operating Temperature(deg) | -30~+65°C | |
Connector Type | N-F | |
Dimensions(mm) | 218*199*40 (Without Connectors) | |
Weight(kg) | 1.800 | |
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
