1350HA Refractory Insulation Fiber Module for Furnace Linear

1350HA Refractory Insulation Fiber Module for Furnace Linear thumbnail-1
1350HA Refractory Insulation Fiber Module for Furnace Linear thumbnail-2
1350HA Refractory Insulation Fiber Module for Furnace Linear thumbnail-3
1350HA Refractory Insulation Fiber Module for Furnace Linear thumbnail-4
1350HA Refractory Insulation Fiber Module for Furnace Linear thumbnail-5
1350HA Refractory Insulation Fiber Module for Furnace Linear photo-1
1350HA Refractory Insulation Fiber Module for Furnace Linear photo-2
1350HA Refractory Insulation Fiber Module for Furnace Linear photo-3
1350HA Refractory Insulation Fiber Module for Furnace Linear photo-4
1350HA Refractory Insulation Fiber Module for Furnace Linear photo-5
US$ 1.5 - 1.5 MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENGRUI
Model Number:
1350HA
Contact Supplier Request Quote Chat Now
Zhumadian Hengrui H-Temperature Energy-Saving Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name HENGRUI
Model Number 1350HA
Application Heat Insulation
Grade ST (Standard)
Dimensions 1350HA
Working Temperature 1350C
Fiber Diameter 3-5um
Thermal Conductivity 0.09-0.175
Shrinkage (1800℉, 3h) 1.3%
Product Description

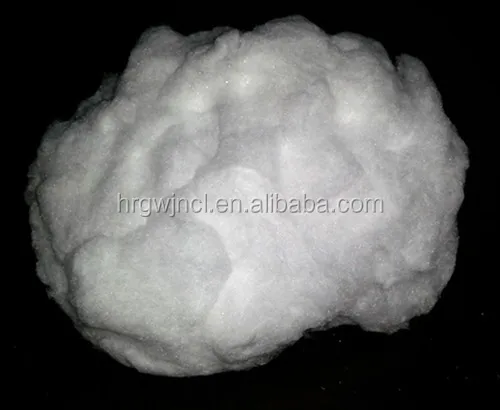

Hengrui Refractory insulation fiber module is made of Hengrui ceramic fiber blanket which is folded or cut by experienced professional technicians.We use special equipment for producing module to confirm the precise dimensions and keep smooth surface of module, and then be applied to the lining of various thermal equipment. The products have some characteristics such as reliable quality, quick installation, superior insulation properties.


Hengrui Refractory insulation fiber module use the enhanced M-type anchors, which have greater strength, closer to the cold face. It can make sure the strength in high temperature. The fixed link was welding together with the high quality heat-resistance steel and stamping butterfly plate. The two round fixed link were embedded in the module system, enlarged the bearing area and ensured the firm of anchor system.

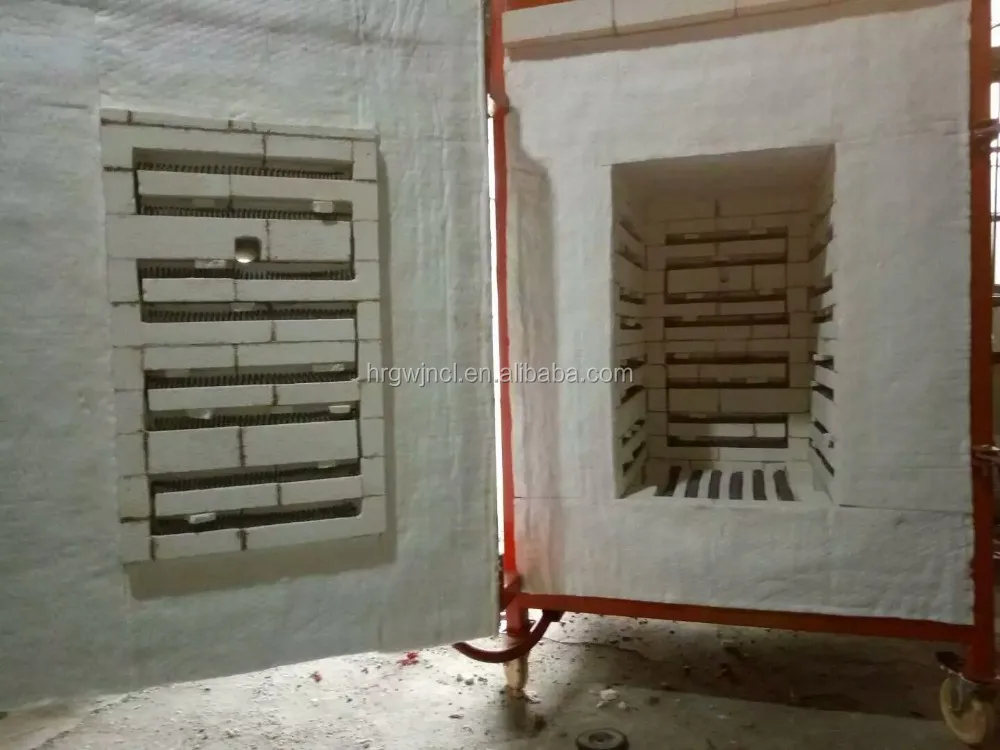

Applications

 Ceramic Industry:Tunnel kiln, shuttle kiln, roller kiln.

 Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc.

 Iron and Steel Industry: Ladle cover, annealing furnace,rotary furnace,bell furnace,walking beam furnace,hot air and flue pipes etc.

 Green energy industry:Waste incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc.

Main Features


 Low bulk density,low thermal conductivity.

 Resistance to heat-shock, ability to resist the scouring of airflow.

 Excellent mechanical strength ,built-in anchor, safety performance.

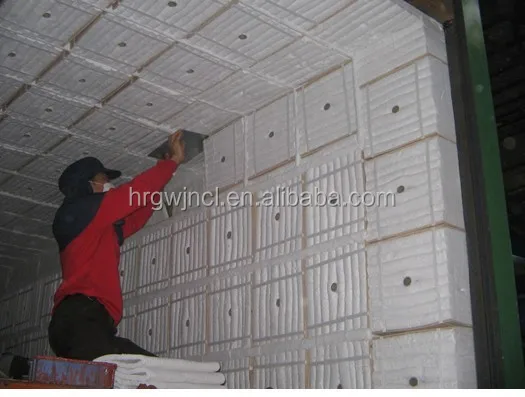

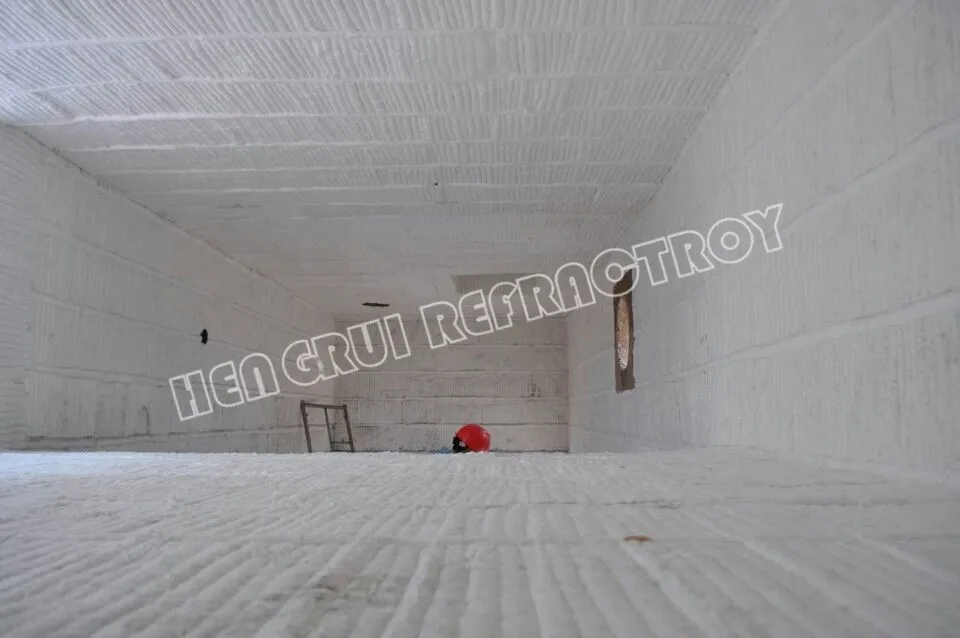

 Easy to install. after installing the lining form a seamless space, good insulation effect.

Technical Index

Refractory insulation fiber module
HR1050
 HR1260ST
HR1260HP
 HR1350HA
HR1430Zr
HR1600PMF
Classification Temperature(℃)
1050
 1260
 1260
1350
 1430
1600
192kg/m3/at( ℃/24h)
Linear Shrinkage Rate(%)
 ≤2.0
850℃
 ≤2.0
1000℃
≤2.2
1050℃
 ≤2.2
1100℃
 ≤2.5
1200℃
 ≤1.5
1450℃
Density(KG/M3)
172-240
172-240
172-240
172-240
172-240
172-240
Thermal Conductivity Rate(W/m.k)
400℃
0.08
0.08
 0.08
 0.08
 0.08
-
600℃
0.15
0.15
0.15
0.12
0.12
0.12
800℃
 0.22
 0.20
 0.19
 0.18
 0.16
 0.15
1000℃
--
--
 0.22
 0.12
 0.19
 0.18
Chemical Composition(%)
Al2O3
 42-44
45-46
 47-49
 52-55
 38-44
72-75
Al2O3+SiO2
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0
ZrO3
-
-
-
-
15-17
-
Other
 ≤1.0
 ≤1.0
 ≤1.0
 ≤1.0
 ≤1.0
 ≤1.0
Certifications
Our Service

Pre-Sales Service

*We can do OEM for trading company.

* We can delivery product in 2-7 days quickly .

*We can provide free samples for customers

After-Sales Service

* Training how to install the products.

* Engineers available to do service overseas.

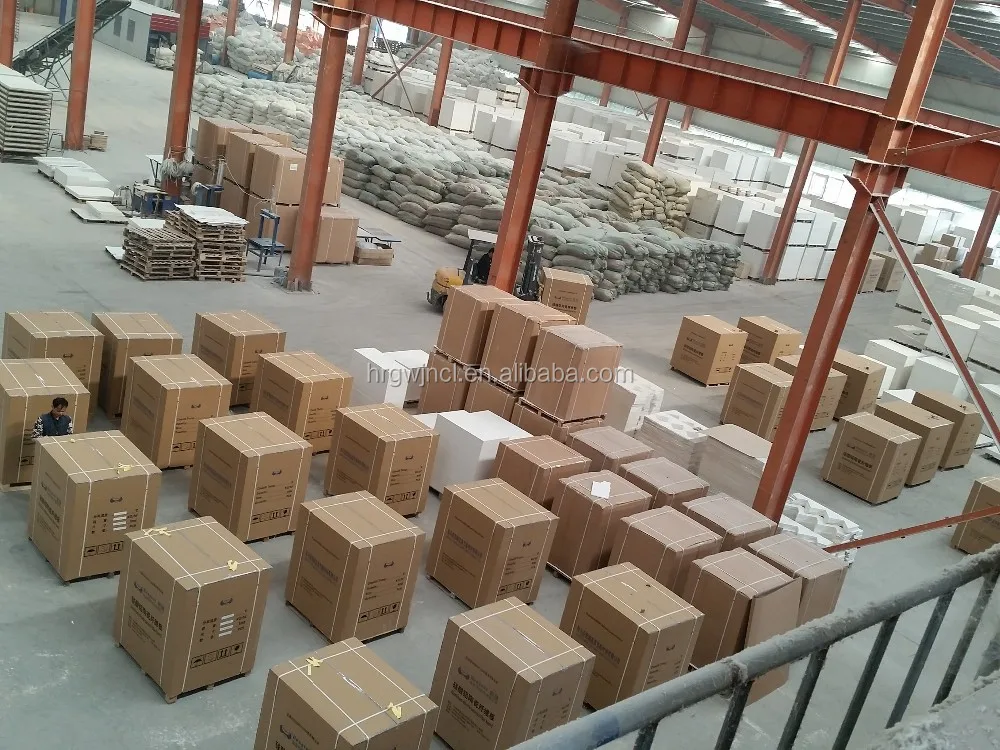

Packing & Delivery
Packaging
Size
130(L) * 100 (W) * 105 (D)
Weight
1.2 T



Packaging Details

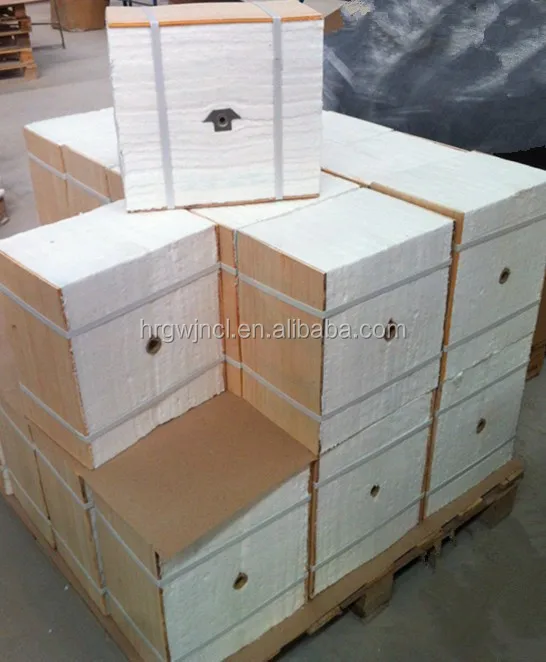

The module & board& carton&blanket is packed by carton box(Size: L*W*H). bulk will be packed by bag.
Packaging
Size
123 (L) *123 (W) * 100(D)
Weight
1T



Packaging Details
We will do package according to products model and container size.
