Thermal Heat Insulation Material for Oven

Thermal Heat Insulation Material for Oven thumbnail-1
Thermal Heat Insulation Material for Oven thumbnail-2
Thermal Heat Insulation Material for Oven thumbnail-3
Thermal Heat Insulation Material for Oven thumbnail-4
Thermal Heat Insulation Material for Oven thumbnail-5
Thermal Heat Insulation Material for Oven photo-1
Thermal Heat Insulation Material for Oven photo-2
Thermal Heat Insulation Material for Oven photo-3
Thermal Heat Insulation Material for Oven photo-4
Thermal Heat Insulation Material for Oven photo-5
US$ 2 - 2 MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Grade:
COM (Common)
Application:
Liners Of Industrial Furnace
Thickness:
6-50mm
Contact Supplier Request Quote Chat Now
Zhumadian Hengrui H-Temperature Energy-Saving Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Grade COM (Common)
Application Liners Of Industrial Furnace
Thickness 6-50mm
Width 610/1220mm
Length 3600/7200/146400mm
Chemical Composition AL2O3+SIO2
Working Temperature 1050-1600
Fiber Diameter 3-5um
Shrinkage (1800 ℉, 3h) 3%(24 Hours)
Thermal Conductivity 0.09-0.16
Model Number Standard
Brand Name hengrui
Place of Origin Henan, China
Descriptions

Hengrui thermal heat insulation material for oven is made of special ceramic fiber through double needle-punching processing. The double needle-punching techniques improve the degree of fiber intertexture, and the performance of delamination resistance as well as tensile strength. The thermal heat insulation material for ceramic chamber kiln does not contain any bonding agent and with the characteristics of stable chemical performance, resistance to the erosion of most chemicals,The physical property like refractory and insulation keep same when meet with oil,water or steam.

Applications

◊ Internal and external lining for industry furnace.

◊ Internal and external insulation for Pipeline.

◊ Insulation for home application, nuclear power and aerospace .

◊ Joint sealing and filing insulation.

◊ Expansion seals/pipe coverings.

Technical Index
thermal heat insulation material for oven HR1050 HR1260ST HR1260HP

HR1350

HA

HR1430

Zr

HR1600

PMF
Classification Temperature(°C) 1050 1260 1260 1350 1430 1600
Working Temperature(°C) 900 1050 1050 1200 1250 1400
Density(KG/m3) 96-160 96-160 96-160 96-160 96-160 96-160

Liner Shrinkage

(24h,128 Kg/M3) 		≤2.4
(900℃)		 ≤2.3(1000℃) ≤2.4
(1050℃)		 ≤2.2
(1150℃)		 ≤3
(1250℃)		 ≤1.5
(1400℃)

Tensile Strength

Kpa(128Kg/M3) 		40 80 80 80 80 100

Thermal Conductivity Rate(128 Kg/M3

,W/m.k) 		400 0.08 0.08 0.08 0.08 0.08 -
800 0.16 0.16 0.16 0.16 0.16 0.16
1000 - 0.23 0.23 0.23 0.21 0.20
Chemical Composition(%) Al2O3 42-44 45-46 47-49 52-55 38-42 72-75
Al2O3+SiO2 ≥99.0 ≥99.0 ≥99.0 ≥99.0 ≥99.0 ≥99.0
ZrO3 -- -- -- -- 15-17 --
Other ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0





Our Services

We can provide free samples for customers

We can delivery goods quickly in 2-7 days

We can do OEM for trading company

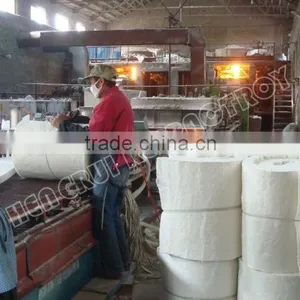

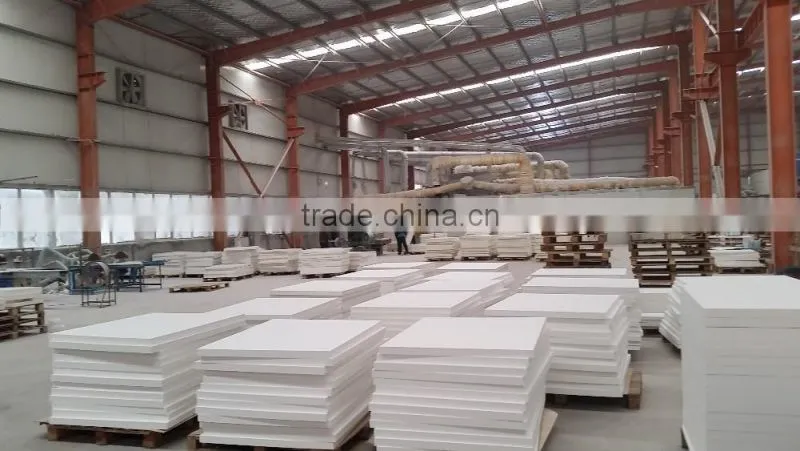

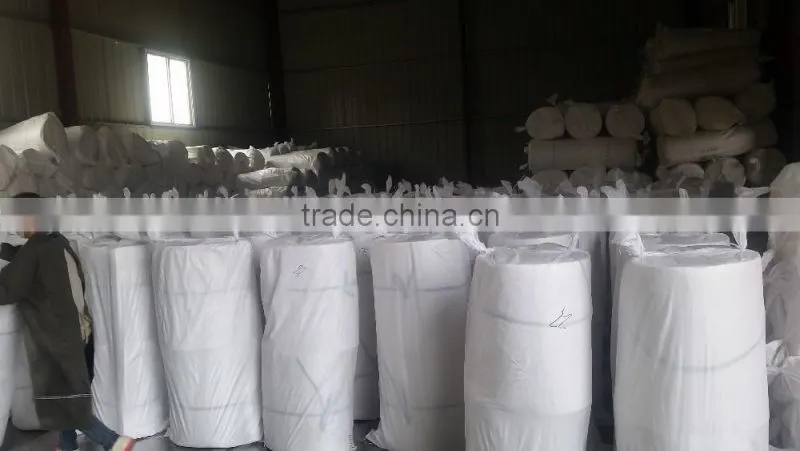

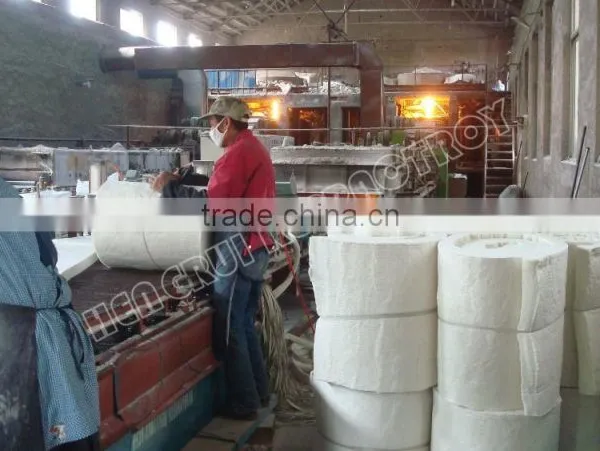

Factory picture

thermal heat insulation material for oventhermal heat insulation material for oventhermal heat insulation material for oven
