Chip Resistor 0805 J 1K8
Features for 0805 SMD Resistor 1K8
1) Power rating of 1 / 16W,1/10W,1/8W,1/4W,1/2W and so on
2) Highly reliable chip resistor Ruthenium oxide dielectric offers superior resistance to the elements.
3) Electrodes not corroded by soldering
Thick film makes the electrodes very strong.
4) Leading the world in development and mass production.
Since start of production in 1976 (first in the wold), this component has established a solid reputation as a general–purpose SMD resistor.
5) ROHM resistors have approved ISO9001- / ISO/TS 16949- certification.
Design and specifications are subject to change without notice.
Carefully check the specification sheet before using or ordering.
Ratings for 0805 SMD resistor 1K8

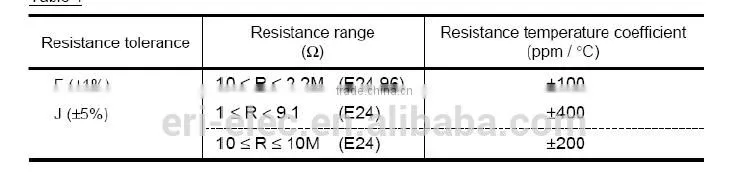

Characteristics for 0805 SMD resistor 1K8

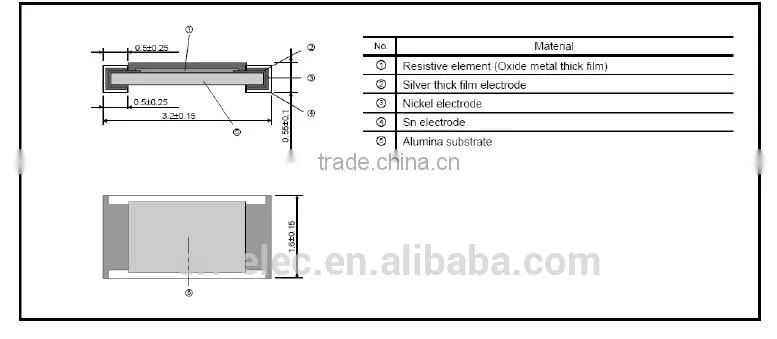

Dimensions(Unit:mm) for 0805 SMD resistor 1K8

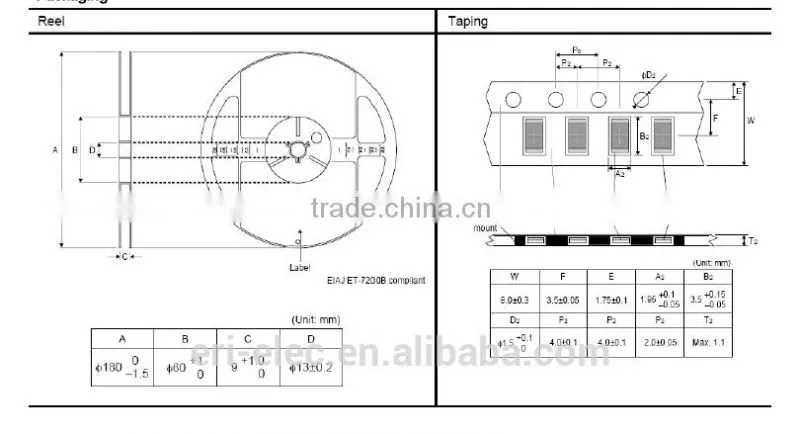

Packaging for 0805 SMD resistor 1K8 :

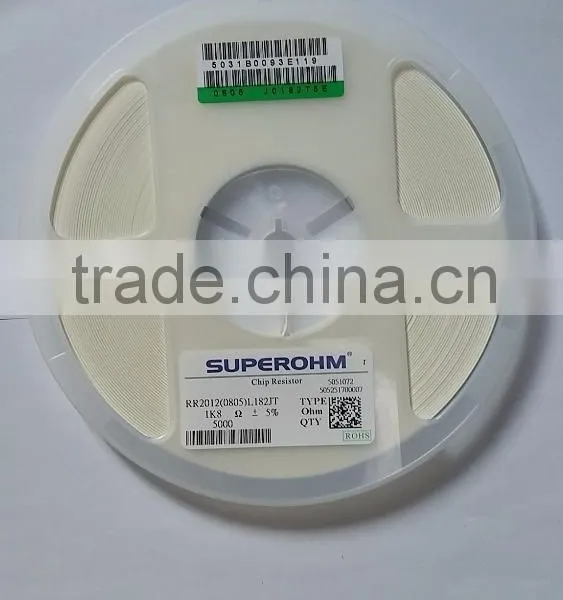

Reel package.
Shipping time:3days once we received the payment.
Shipping way:all express way(DHL,FEDEX,TNT,UPS,EMS AND SO ON) and customer's forwarder.
1.Quick response
2.Reasonable price based on good quality
3.Provide one-stop service(components, OEM)
4.Abundant inventory & Habitual material preparation
Our Company Information:
Shenzhen ERI Electronics Co.,Ltd was founded in 2009.
We have great experience in the field of electronic components.
We have a very stable and reliable resource.
We can provide electronic components one-stop service.
Based on the principle of win-win on both sides, we provide good price, good quality,
Good service to the customer.
We are looking forwarder to be your business cooperation partner.
