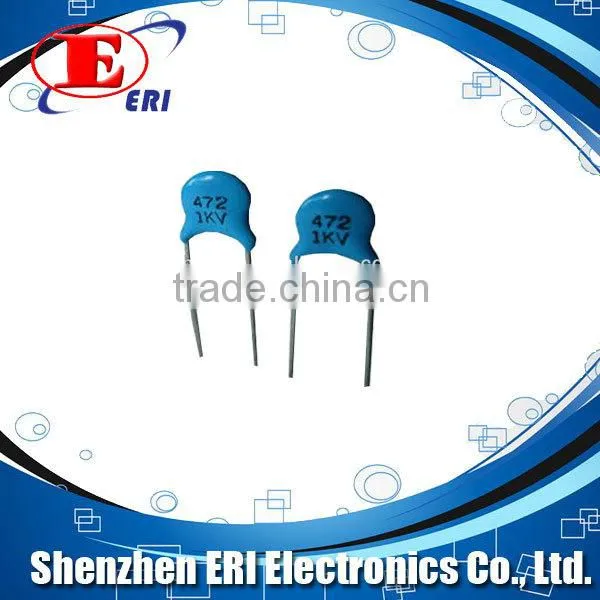

High voltage Ceramic Disc Capacitor 472 1KV
These Ceramic Disc Capacitors are specifically designed for AC applications and meet the safety requirements of various safety standards agencies.These capacitors are ideal for across the line and line by-pass applications.
1.Ideal for across the line applictions
2.Safety standards recognized for AC applictions
Features:
1.Ideal for across the line applictions
2.Compact size
3.Cost effective product
4.Safety standards recognized for AC applictions
Recommended Applications:
1.Filtering circuit of high-voltage power
2.High-voltage circuit of television set and monitor
3.High-voltage circuti of various electronic equipments, like lighting ballast, power supply, telecommunications
4.Working as snubber, EMI/RFI filter
More specifications for you
| Type | class I | class II | class III |
| Item | CC1/CC81 | CT1/CT81 | CS1 |
| Operating Temperature Range | -25~+85º C | -25~+85º C(Y5P)+10~+85º C(Z5U, Z5V) | -25~+85º C |
| Capacitance | Within the tolerance at 25± 2º C, 1± 0.1MHz, 1± 0.1Vrms. | Within the tolerance at 25± 2º C, 1± 0.1KHz, 1± 0.2Vrms. | Within the tolerance at 25± 2º C, 1± 0.1KHz, 1± 0.1Vrms. |
| Test voltage | 50VDC, 500VDC: 2UR (50mA and under) 1~5s 1KVDC, 2KVDC: 2UR (50mA and under) 1~5s | 50VDC, 500VDC: 2UR (50mA and under) 1~5s 1KVDC, 2KVDC: 2UR (50mA and under) 1~5s 3 ~ 5KVDC (175%) 6 ~ 15KVDC (150%) | 16VDC, 25VDC, 50VDC: 2UR (50mA and under) 1~5s |
| Insulation resistance | 10, 000MΩ min. at rated voltage for 60± 50 seconds | ≥ 10, 000MΩ or(200/CR)MΩ whichever is the smaller CR: Capacitance(µ F) | 16VDC, 25VDC, 50VDC: 2UR (50mA and under) 1~5s |
| Q Factor/Dissipation Factor(tanδ ) | At 1± 0.1MHz, ± 0.1Vrms, 25± 2º C C≥ 30pF Q≥ 1, 000 C< 30pF Q≥ 400+20C | At 1± 0.1KHz, 1± 0.2Vrms, 25± 2º C Y5P, Z5U: tanδ ≤ 2.5% Z5V: tanδ ≤ 5.0% | At 1± 0.1KHz, 0.1Vrms, 25± 2º C 16V: tanδ ≤ 7.5% 25V, 50V: tanδ ≤ 5.0% |
Packaging: bag package.
Shipping Day:1-3days once we have received the payment.
Shipping way:all express way(DHL, Fedex, TNT, UPS, EMS and so on),and customer's forwarder and so on.
1. Invaluable experience of electronic components item
2.Fast leadtime for most of items
3.Reasonable price based on good quality
4.We provide one-stop service for all electronic components
5.Abundant inventory & Habitual material preparation
6.We can provide profession advice when you have the any query.
Shenzhen ERI Electronics Co.,Ltd was founded in 2009.
We have great experience in the field of electronic components.
We have a very stable and reliable resource.
We can provide electronic components one-stop service.
Based on the principle of win-win on both sides, we provide good price, good quality,
good service to the customer.
We are looking forwarder to be your business cooperation partner.
