High voltage ceramic capacitor 22PF 20kv
Specification for you
| Type | class I | class II | class III |
| Item | CC1/CC81 | CT1/CT81 | CS1 |
| Operating Temperature Range | -25~+85º C | -25~+85º C(Y5P)+10~+85º C(Z5U, Z5V) | -25~+85º C |
| Capacitance | Within the tolerance at 25± 2º C, 1± 0.1MHz, 1± 0.1Vrms. | Within the tolerance at 25± 2º C, 1± 0.1KHz, 1± 0.2Vrms. | Within the tolerance at 25± 2º C, 1± 0.1KHz, 1± 0.1Vrms. |
| Test voltage | 50VDC, 500VDC: 2UR (50mA and under) 1~5s 1KVDC, 2KVDC: 2UR (50mA and under) 1~5s | 50VDC, 500VDC: 2UR (50mA and under) 1~5s 1KVDC, 2KVDC: 2UR (50mA and under) 1~5s 3 ~ 5KVDC (175%) 6 ~ 15KVDC (150%) | 16VDC, 25VDC, 50VDC: 2UR (50mA and under) 1~5s |
| Insulation resistance | 10, 000MΩ min. at rated voltage for 60± 50 seconds | ≥ 10, 000MΩ or(200/CR)MΩ whichever is the smaller CR: Capacitance(µ F) | 16VDC, 25VDC, 50VDC: 2UR (50mA and under) 1~5s |
| Q Factor/Dissipation Factor(tanδ ) | At 1± 0.1MHz, ± 0.1Vrms, 25± 2º C C≥ 30pF Q≥ 1, 000 C< 30pF Q≥ 400+20C | At 1± 0.1KHz, 1± 0.2Vrms, 25± 2º C Y5P, Z5U: tanδ ≤ 2.5% Z5V: tanδ ≤ 5.0% | At 1± 0.1KHz, 0.1Vrms, 25± 2º C 16V: tanδ ≤ 7.5% 25V, 50V: tanδ ≤ 5.0% |

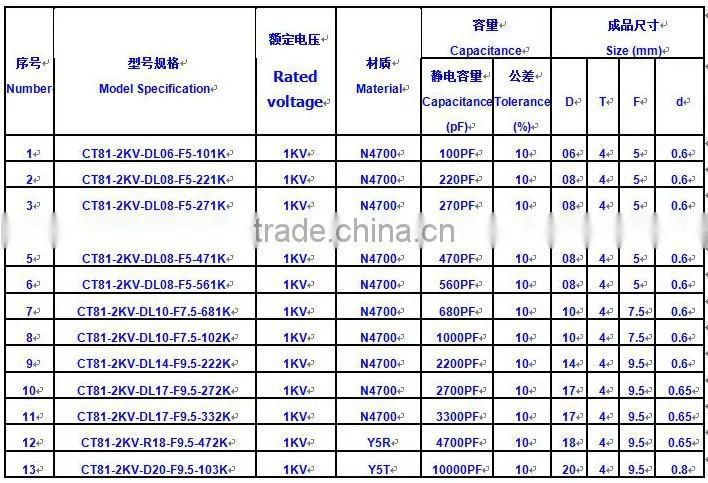

Catalog of the high voltage ceramic capacitor 1kv :

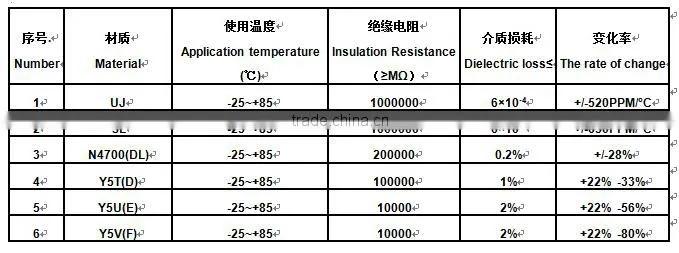

The materials of the high voltage disc ceramic capacitors
Package for information for Capacitor:
We have many brands for Capacitor:
Packaging: Bag package.
Shipping Day:1-3days once we have received the payment.
Shipping way:all express way(DHL, Fedex, TNT, UPS, EMS and so on),and customer's forwarder and so on.
1. Invaluable experience of electronic components item
2.Fast leadtime for most of items
3.Reasonable price based on good quality
4.We provide one-stop service for all electronic components
5.Abundant inventory & Habitual material preparation
6.We can provide profession advice when you have the any query.
Shenzhen ERI Electronics Co.,Ltd was founded in 2009.
We have great experience in the field of electronic components.
We are looking forwarder to be your business cooperation partner.
