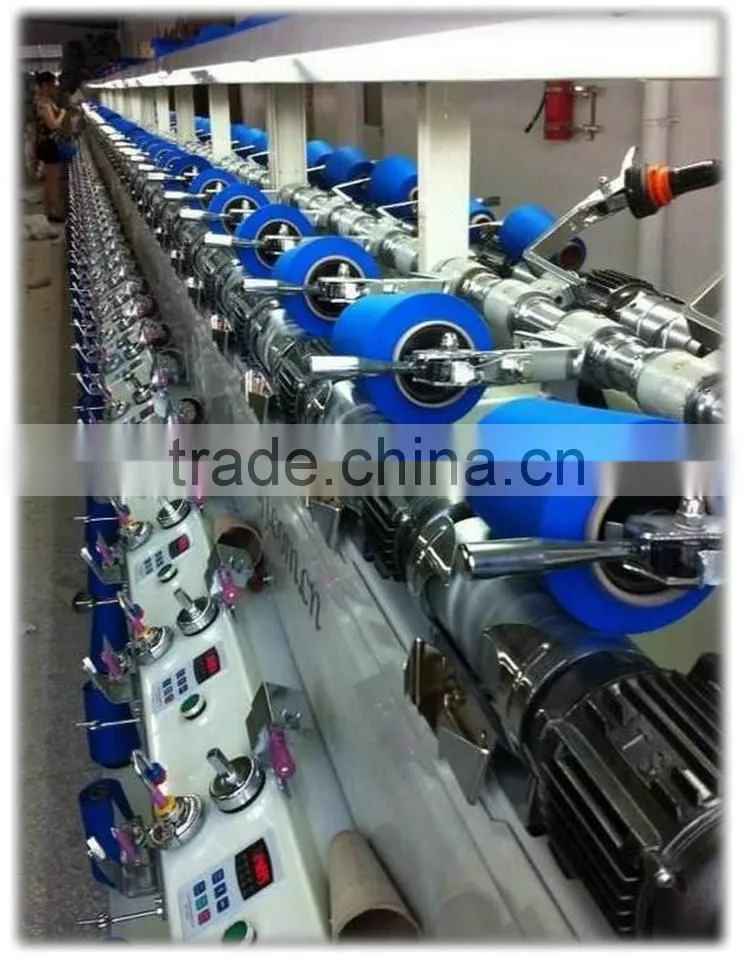

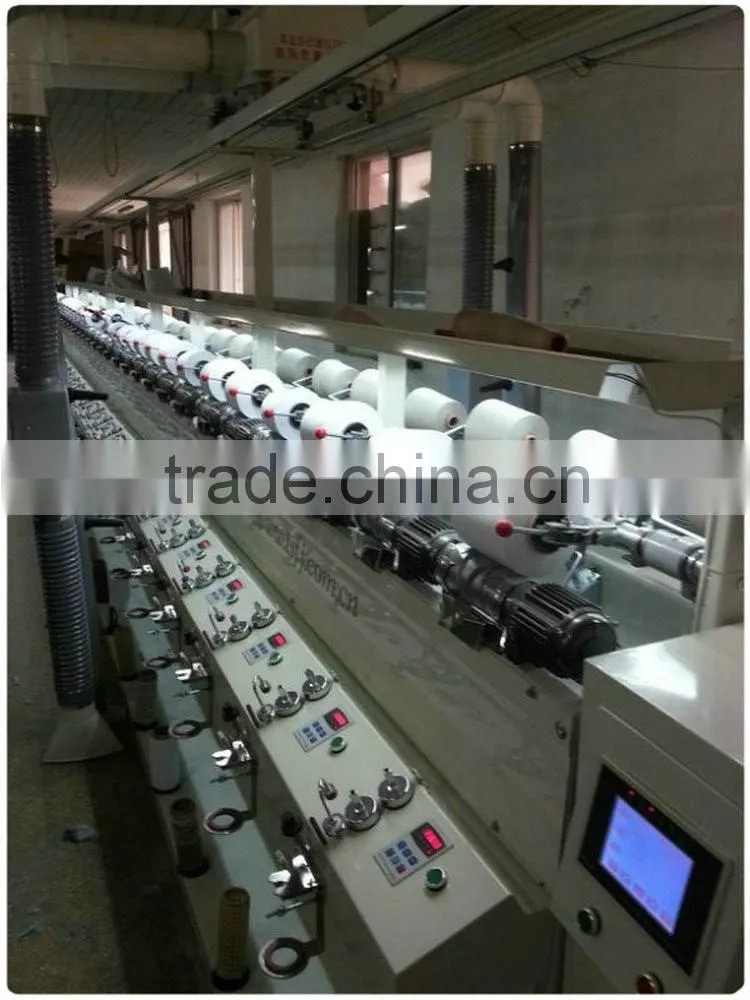

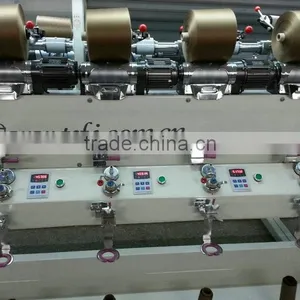

New Style Knitting Yarn Winding Machine/Yarn Waxing Winder Machine
US$ 10,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Cone to cone winding, for yarn rewinding from cone to cone
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China New Products Ksm Winding Machine/Cashmere Winder MachineUS$ 10,000 - 25,000MOQ: 1 Set -
2016 Hot New Product!!! 6 Inch Cone Winding Machine/Ksm Winding MachineUS$ 10,000 - 25,000MOQ: 1 Set
-
Best Price 6 Inch Paper Cone Winding Machine/Ksm Winding MachineUS$ 10,000 - 25,000MOQ: 1 Set
-
Hot Product!!! 6 Inch Cone to Cone Winder Machine/Paper Cone Winding MachineUS$ 10,000 - 25,000MOQ: 1 Set
-
Unique Design Wool Yarn Winder Machine/Paper Cone Winding MachineUS$ 10,000 - 25,000MOQ: 1 Set
Condition
New
Application
Cone to cone winding, for yarn rewinding from cone to cone
Automatic Grade
Automatic
Production Capacity
300-1000Meter/min
Place of Origin
Jiangsu, China
Brand Name
TANGSHI
Model Number
TS008M
Voltage
380V
Power(W)
0.09kw per spindle
Dimension(L*W*H)
2250 x 1200 x 1600mm per group
Weight
350kg per group
Certification
ISO9001:2008 / CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Machine Application:
TS008 Hard Rewinding Machine, it’s mainly for After Dyeing winding or rewinding using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
Parameters:
| Bobbin type | 6’(170mm) |
| Layout | Double-side, can be 12-120 spindles |
| Power Supply | Three phases 380-400V 50/60HZ |
| Driving | Every spindle per motor |
| Power Consumption | 0.09KW/spindle |
| Take-up package | Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
| Yarn tension and waxing device | each spindle has a disc tensioner and waxing device |
| Auto Stop Device | Each spindle has yarn detector |
| Electronic Anti-Stack | Inverter control |
| Cleaner device | Every spindle has a Mechanical Knife yarn cleaner |
| Electronic Yarn Cleaner | Optional installed |
| Air Splicer | Optional installed |
| Blower cleaner | Optional installed |
| Lighting System | Optional installed |
| Dimensions | L 11500 x W 1100 x H 1550 mm (60 Spindles) |
