Home > Products > Hard Winding Machine > 2016 Hot new product!!! 6 inch cone winding machine/Ksm winding machine

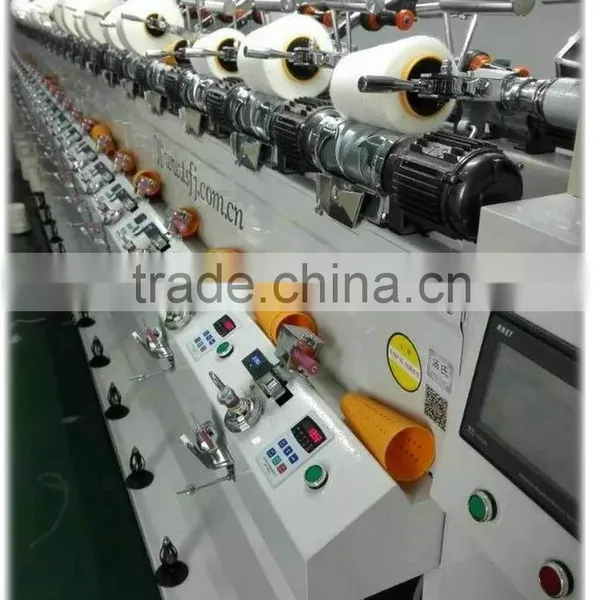

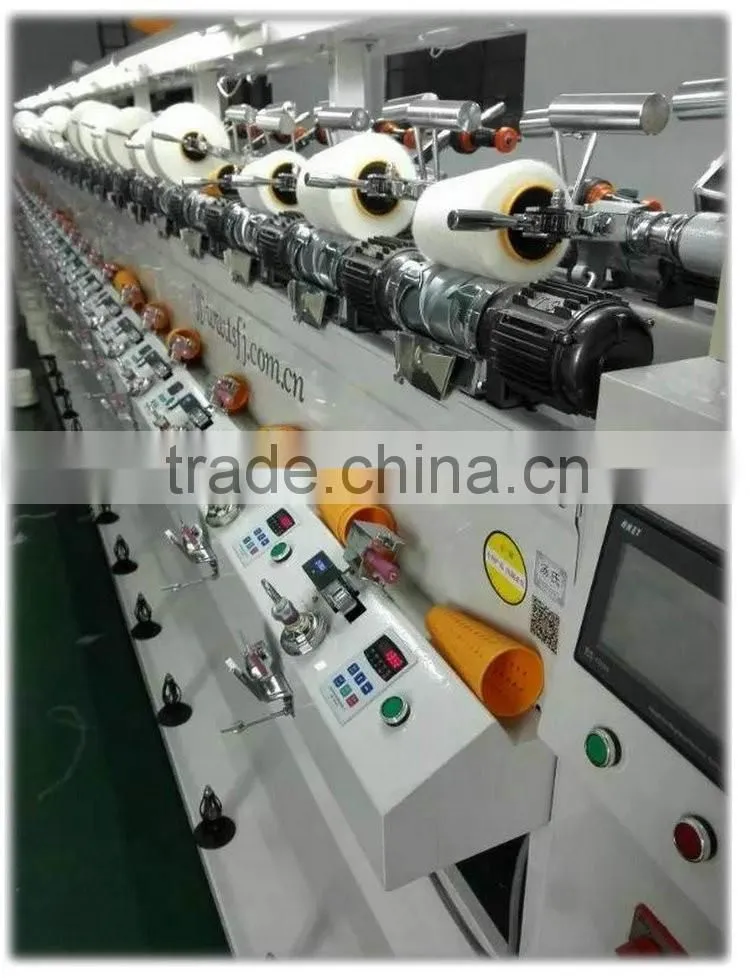

2016 Hot new product!!! 6 inch cone winding machine/Ksm winding machine
USD $10,000 - $25,000
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition: | New | Application: | Cone to cone winding, for yarn rewinding from cone to cone | Automatic Grade: | Automatic |
| Production Capacity: | 300-1000Meter/min | Place of Origin: | Jiangsu, China | Brand Name: | TANGSHI |
| Model Number: | TS008M | Voltage: | 380V | Power(W): | 0.09kw per spindle |
| Dimension(L*W*H): | 2250 x 1200 x 1600mm per group | Weight: | 350kg per group | Certification: | ISO9001:2008 / CE |
| Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Machine Application:
TS008 Hard Rewinding Machine, it’s mainly for After Dyeing winding or rewinding using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
Parameters:
| Bobbin type | 6’(170mm) |
| Layout | Double-side, can be 12-120 spindles |
| Power Supply | Three phases 380-400V 50/60HZ |
| Driving | Every spindle per motor |
| Power Consumption | 0.09KW/spindle |
| Take-up package | Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
| Yarn tension and waxing device | each spindle has a disc tensioner and waxing device |
| Auto Stop Device | Each spindle has yarn detector |
| Electronic Anti-Stack | Inverter control |
| Cleaner device | Every spindle has a Mechanical Knife yarn cleaner |
| Electronic Yarn Cleaner | Optional installed |
| Air Splicer | Optional installed |
| Blower cleaner | Optional installed |
| Lighting System | Optional installed |
| Dimensions | L 11500 x W 1100 x H 1550 mm (60 Spindles) |
