Help Center4.5*4.5smd Tact Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WANSHFA
Model Number:
KFC-005
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
WANSHFA
Model Number
KFC-005
Specifications
1.Certificate:CE,CQC,ROHS2.OEM,ODM supply
3.Professional Manufacture

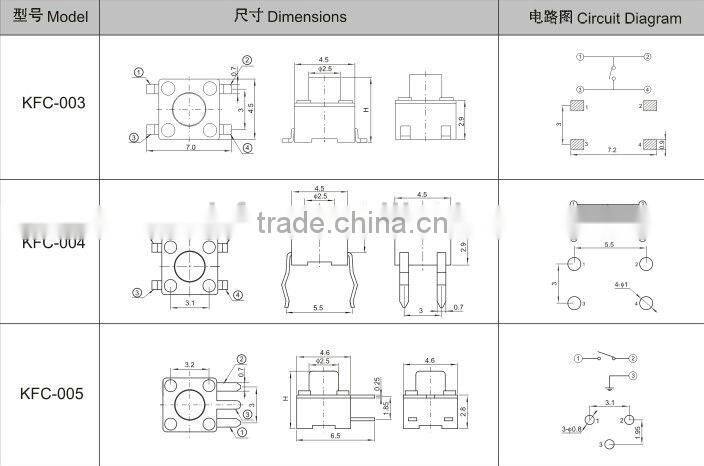

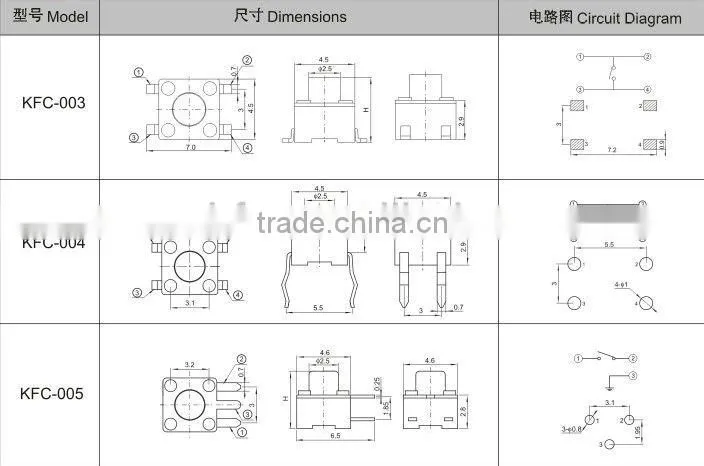

ITEM:KFC-005 TACT SWITCH
Features:
1.Snap-in type,which can be directly mounted on PC board
2.Some of output terminals can be also used as jumper leads
3.Standard knobs are availlable
Applications:
Operating switches in all types of electronic equipment such as audio apparatus,office equipment,communication apparatus,measuring instruments,TV Sets,VCRs,etc
Specification:
Items |
Standard |
Rating |
50mA 12V DC |
Insulation resistance |
100MΩ min 100V DC |
Dielectric strength |
250V AC for 1 min |
Contact resistance |
100mΩ max |
Operating temperature range |
-30°C to + 85°C |
Lifetime |
B:100000cycles C:50000 cycles |
Operating time |
B:180gf C:250gf |
Travel |
0.15 ± 0.05mm |
