'KFC-001 4.5mm tact switch
- 1000000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | WANSHFA | Model Number: | KFC-001 |
Max. Current: | 50MA | Max. Voltage: | 12V |
Product Description
Specifications
1.KFC-001 4.5mm tact switch2.good quality tact switch
3.OEM ODM tact switch
4.15 years' experience for tact switch
5.CE

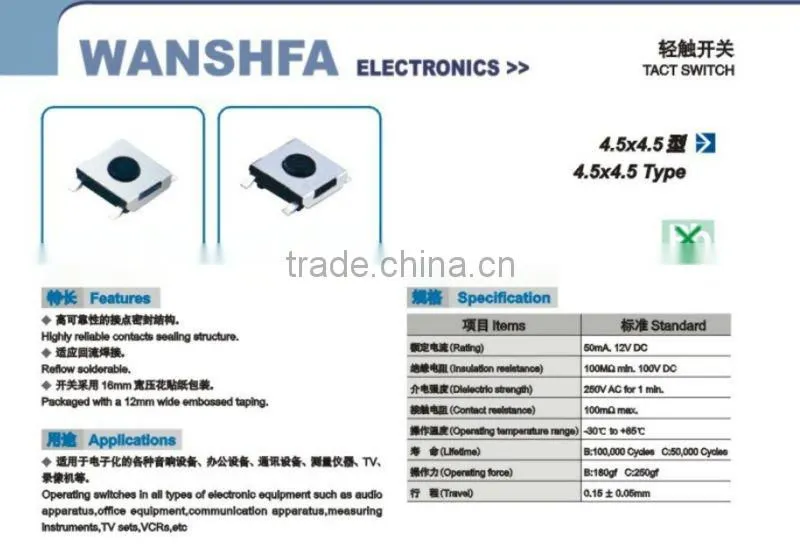

KFC-001 4.5mm tact switch /tact switch/tact switch/tact switch/tact switch/touch

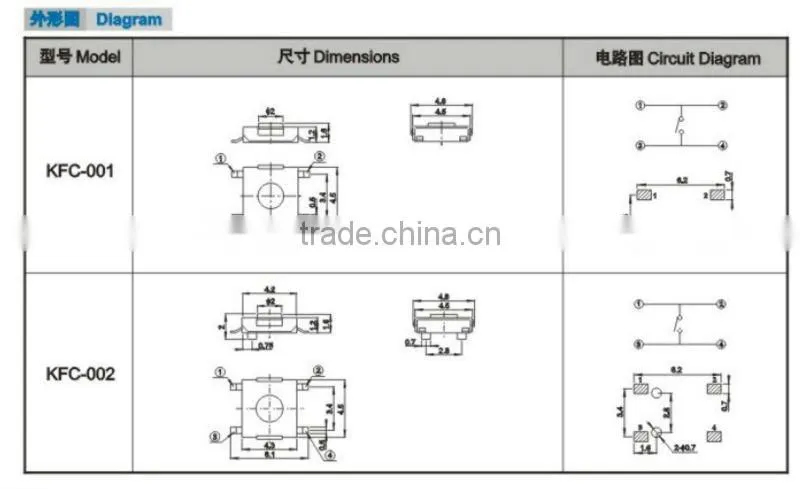

L: 4.5
W: 4.5

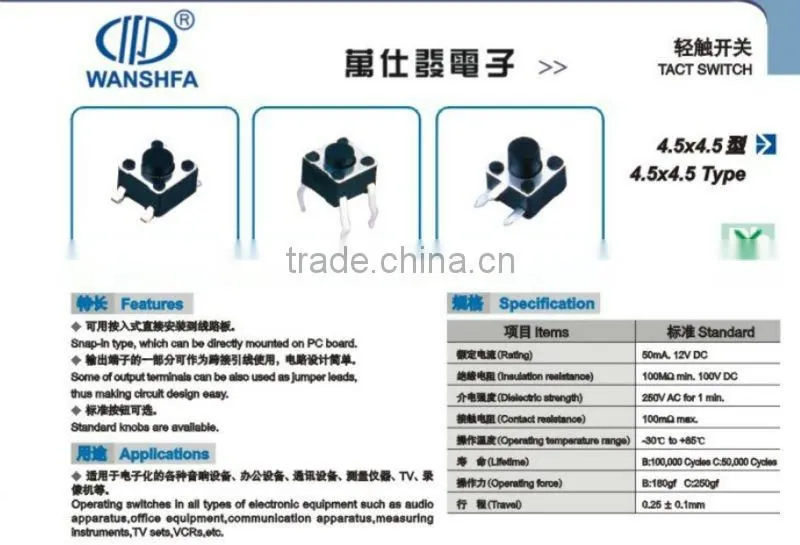

electronic touch switch specification
1.Rating: 50mA 12VDC
2.Contact Resistance : 100mΩ max(initial)
3.Insulation Resistance: 100MΩ(minDC 250V)
4.Dielectric Strength : AC250V(50/60Hz for 1minute)
5.Electrically Life:100,000cycles
6.Environment temperature: -25°C~+105°C
7.Operating Force: 180/250(±30gf)
touch switch Features
1.Highly reliable contacts sealing structure
2.Reflow solderable
3.Packaged with a 16mm wide embossed taping
touch switch Applications
operating switches in all types of electronic equipment such as audio apparatus,office equipment,communication apparatus,measuring instrumnets,TV sets,VCRs,etc.

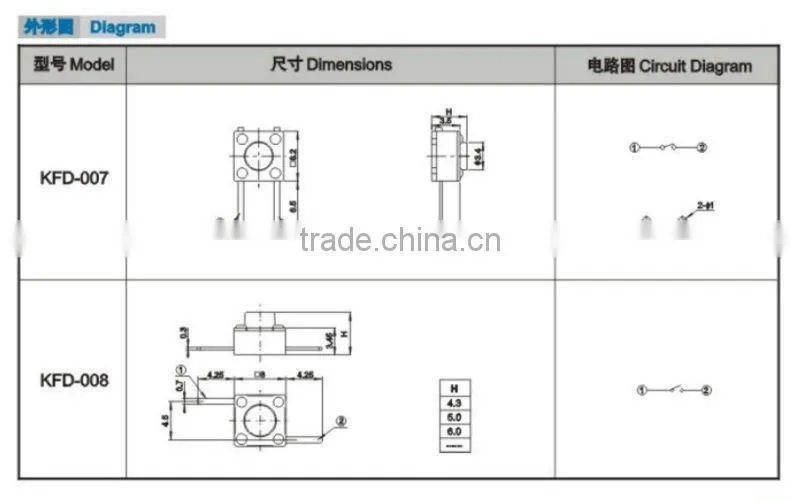

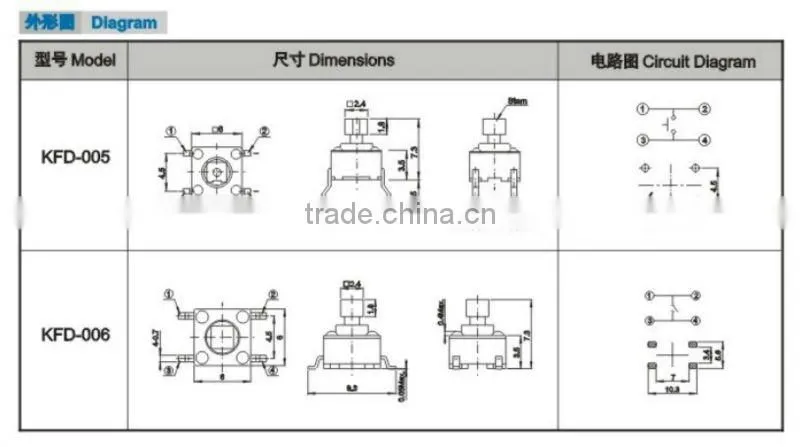

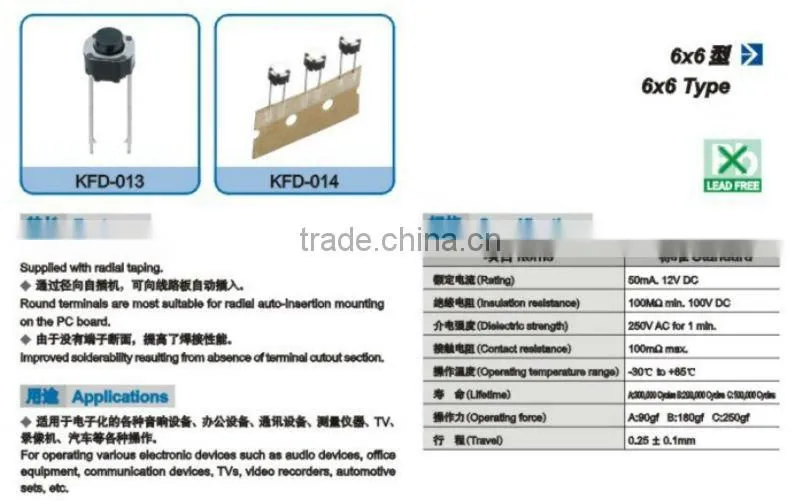

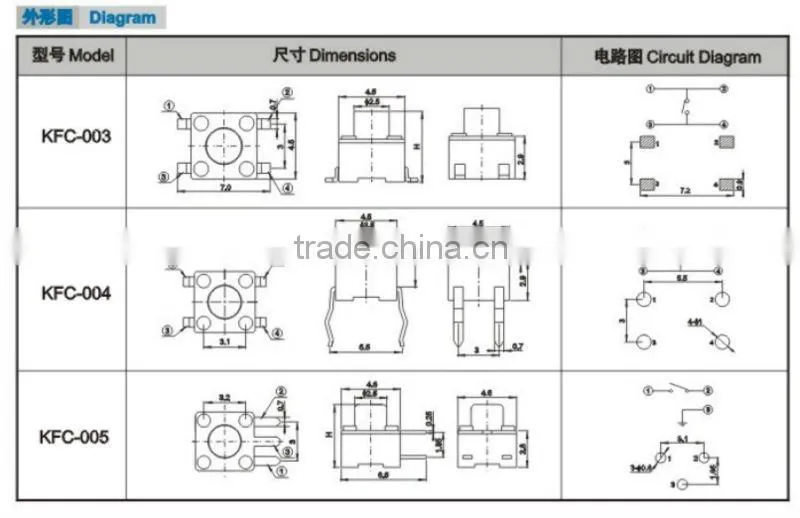

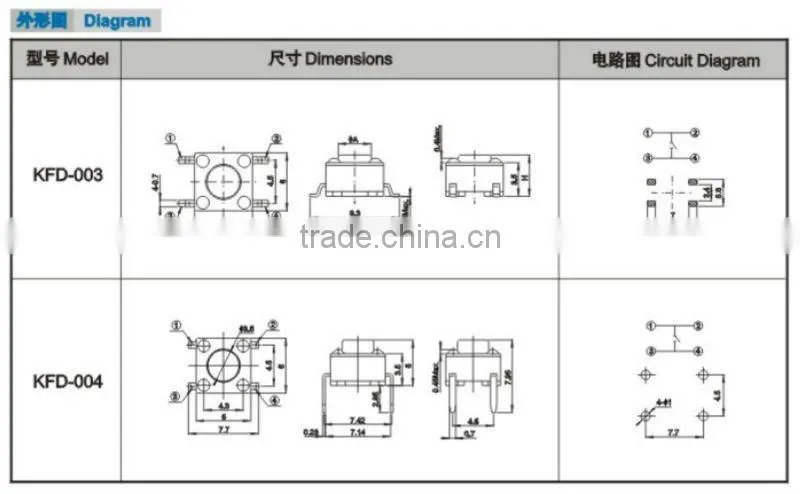

Catalogue for your reference
Contact Us
- Yueqing Wanshfa Electronics Co., Ltd.
- Contact nameDevin Ling
- Phone86-577-62981866
- AddressNO.1 Xingye Road Dagang Beibaixiang Yueqing Wenzhou,Zhejiang
