Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WANSHFA
Model Number:
PBS-005
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
WANSHFA
Model Number
PBS-005
Protection Level
65
Max. Current
3A
Max. Voltage
250V
Specifications

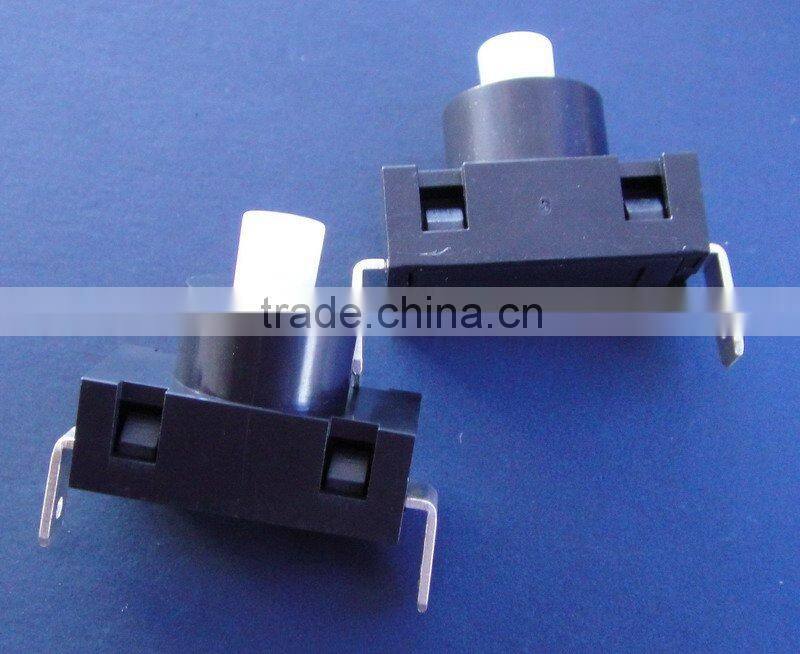

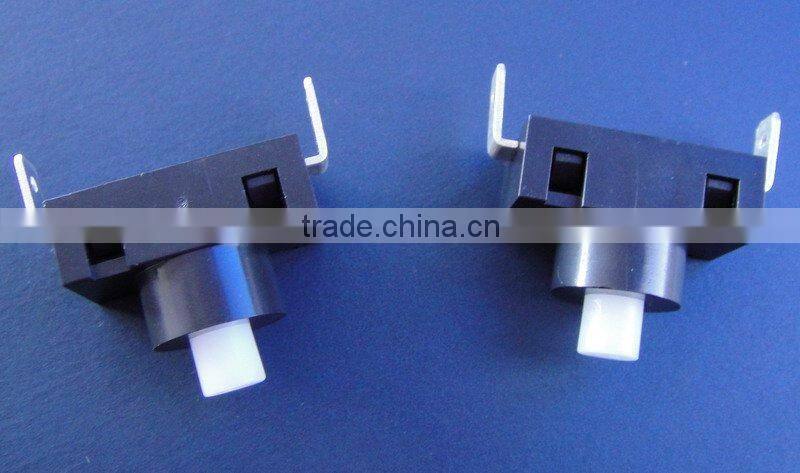

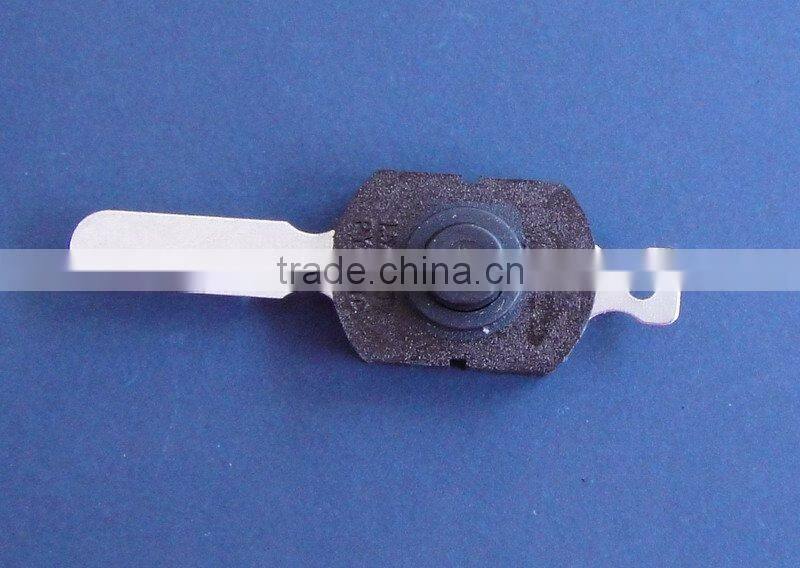

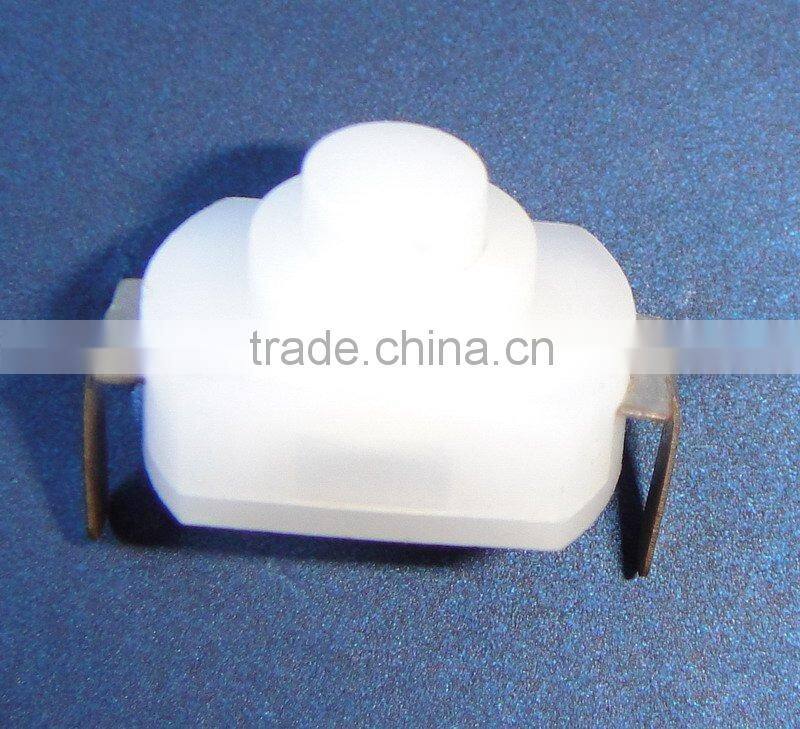

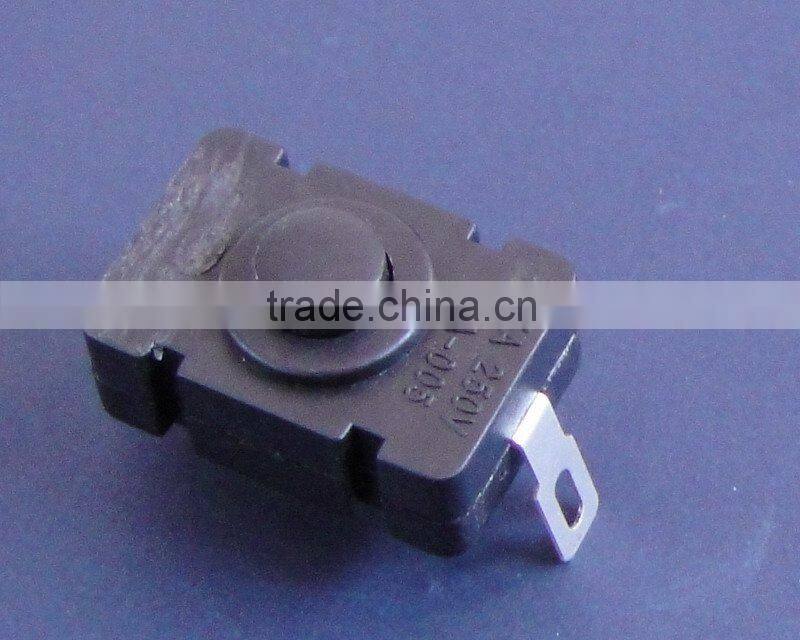

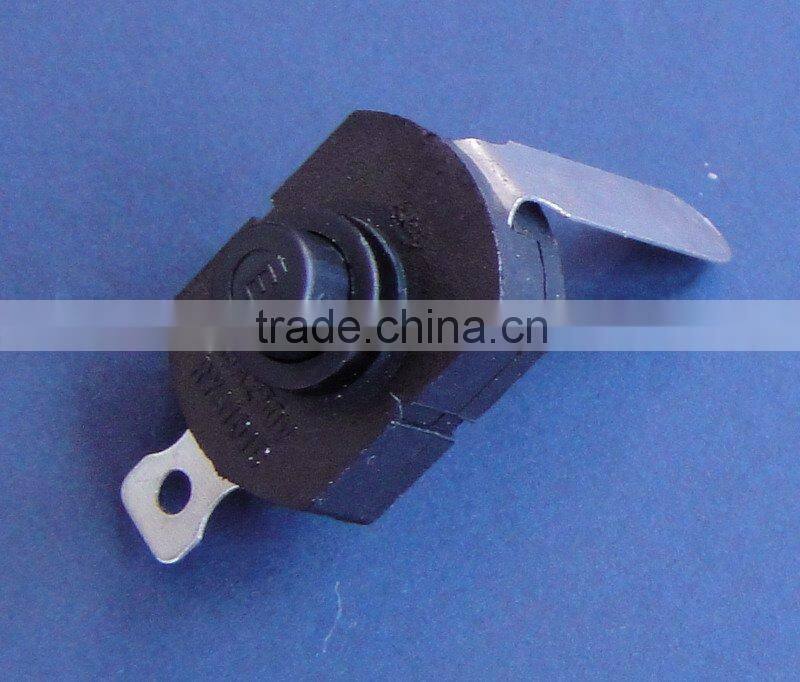

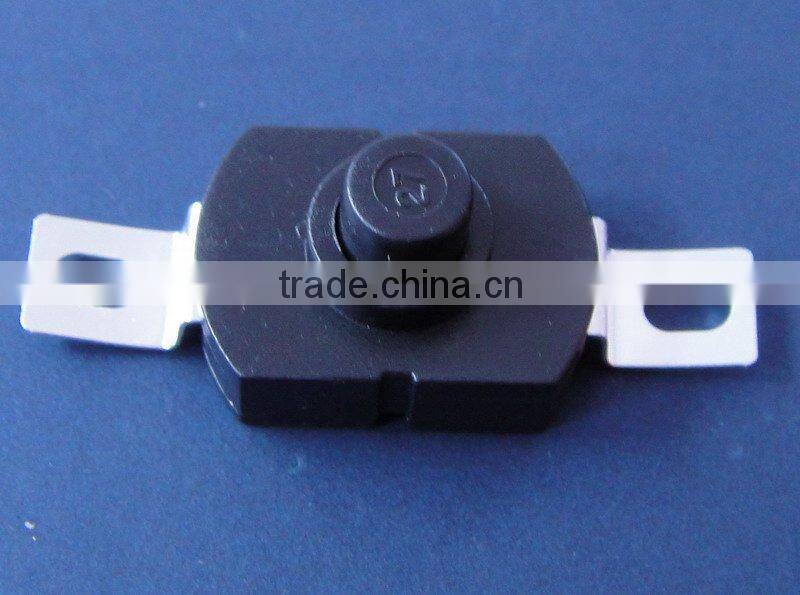

Push Button Switch PBS-005. 15 years' experience of manufacturing in this field. Superior quality with ideal price. Push Button Switch External AppearanceVisual measurement: surface of metals cleanness, no rust stain, no cladding shell off
Temperature-25~ +70°C
Relative Humidity( 40°C) ≤ 95%
Normal Load 3A AC 250V
Withstand VoltageAC250V (50Hz)/1min
Contact Resistance ≤0.05Ω
Insulation Resistance ≥100MΩ
Travel 4mm
Service Life 100,000 Cycles
Operating Force 4N
Center Distance2.2mm
Diameter7mm
Height21.4mm
Length of Terminal 5.1mm
Width of Terminal 0.5mm
Quantity of Terminals 2
Setup ModeVertical Plug-in
Color of KeyRed
Lock Mechanism Lockless
UsesInstrument,Meter,Household Appliances,
Weighing apparatus etc
Note:
1.All parts made of withstand high temperature and RoHS parts raw materials.
2.Please contact us to get the drawing of the switch.
