BG Series Tablet Protective Film Coating Machine
The machine can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.
And it has such characteristics as good appearance in design ,high efficiency, low energy consumption and small floor area, etc.

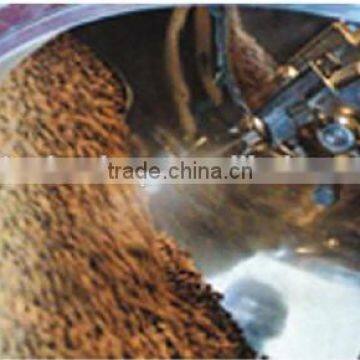

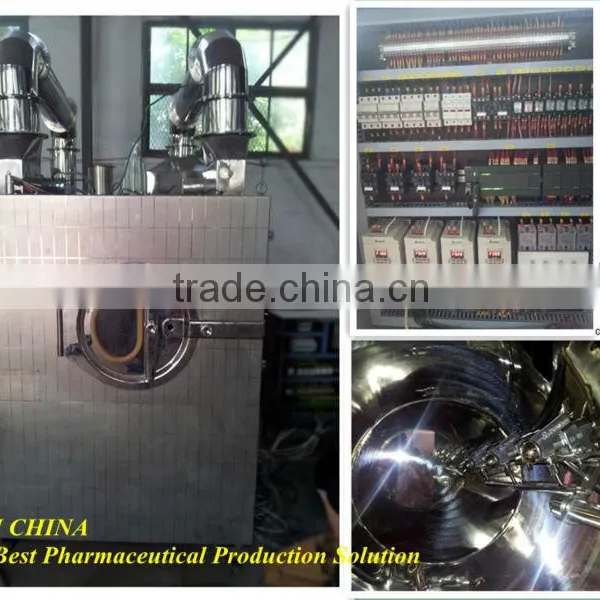

This machine is made of high-quality stainless steel elaborately and meets the The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in the clean and closed rotational cylinder of the film coating machine. And it can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film.
Items Model |
BG-10 |
|||
Max. tablet volume |
10Kg / time |
|||
Sugar coating drum dia. |
F600mm |
|||
Feed inlet dia |
F260mm |
|||
Sugar coating drum speed |
2-18 r.p.m |
|||
Host machine motor power |
0.55kw |
|||
Exhaust cabinet motor power |
1.1 kw |
|||
Exhaust blower air flow |
1645 m3/h |
|||
Hot air cabinet motor power |
0.75 kw |
|||
Air heater air flow |
1070 m3/h |
|||
Air heater temp.-adjust range |
~ 80 ℃ |
|||
Hot air cleanness |
100000 level |
|||
Peristaltic pump or lobe pump motor power |
0.37kw |
|||
Silicon rubber hose |
F 9~16mm |
|||
External dimensions of host machine |
900*860*1950 mm |
|||
Host machine weight |
280kg |
|||
External dimensions of hot air cabinet |
870x670x670 mm |
|||
Hot air cabinet weight |
60kg |
|||
External dimensions of exhaust cabinet |
870x670x670 mm |
|||
Exhaust cabinet weight |
60kg |
|||
|
External condition
|
Clean Air |
Pressure |
³0.4Mpa |
|
Air consumption. |
0.2m3 /min. |
|||
|
Water source |
Pressure |
³0.15Mpa |
||
Pipe dia |
1’’ |
|||
|
Steam heating type |
Steam |
Pressure |
³0.4Mpa |
|
Air consumption. |
25kg/h |
|||
Power source |
3 phase and 5 lines 5 kw |
|||
|
Electric heating type
|
Power source |
3 phase and 5 lines10 kw |
||

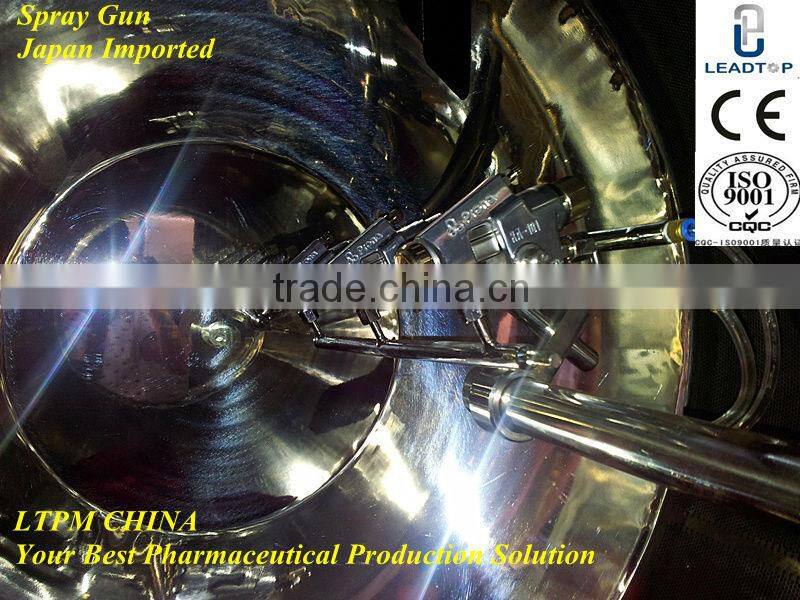

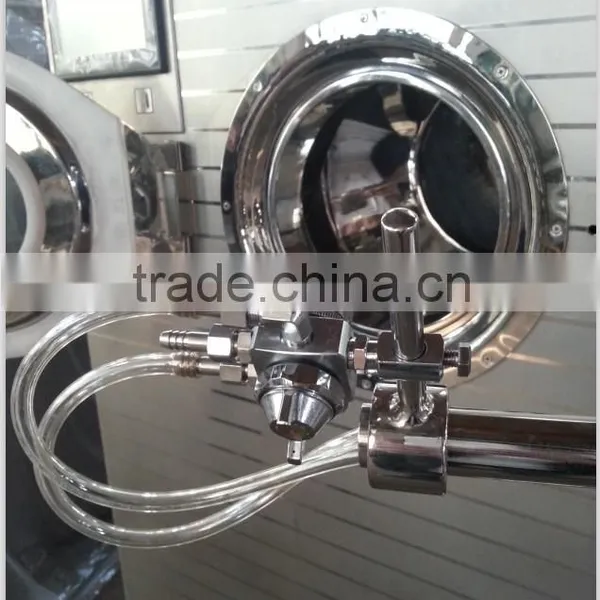

Spray Gun:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
