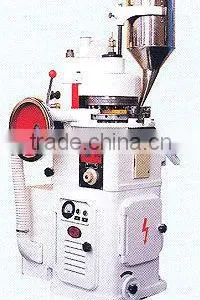

ZP-19 Rotary Pressing Machine,Tablet Pressing Machine,D Tooling Tablet Pressing Machine
It is a kind of single type autorotion table press equipment elaborately desinged and manufactured by our factory though absorbing and assimilating the advanced technology at home and abroad instead of traditional rotary tablet press,which widely suitable for the Industries of Pharmaceutical,Chemical,Foodstuff,Plastic Electronic,Powder Metallurgy and so on.

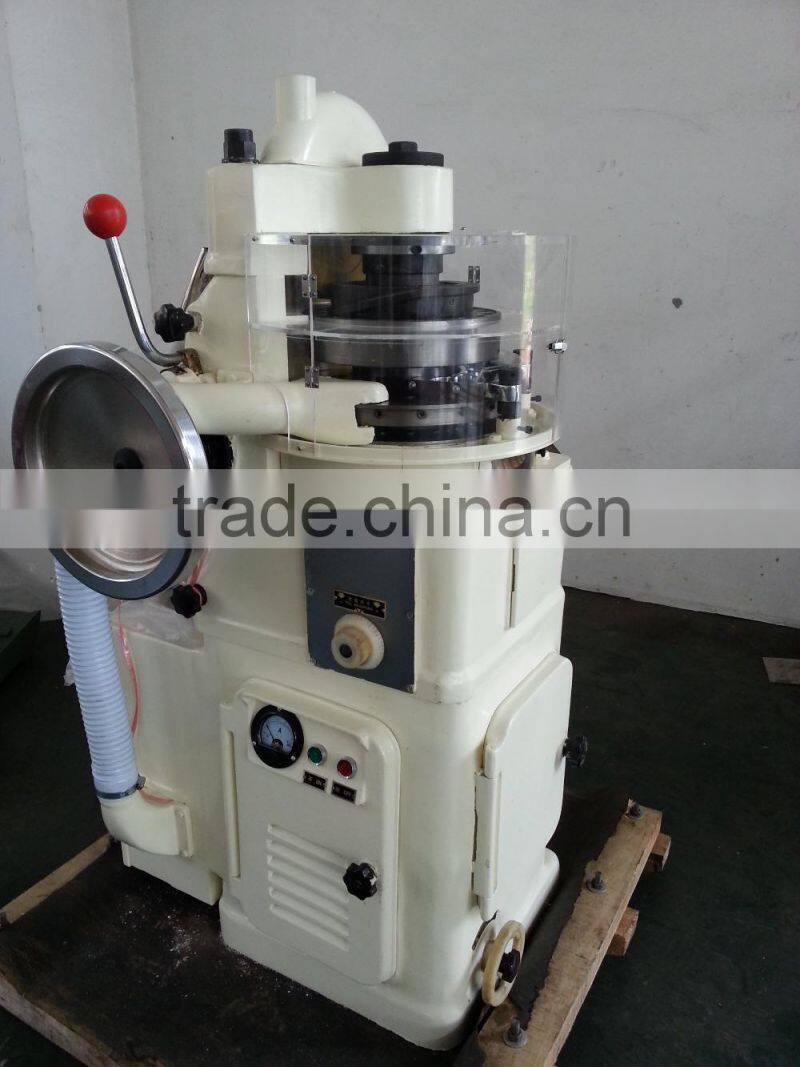

It is equipped with Plexi-glass perspective window for tablet producing observation.Each perspective window could be fully opened and easy for cleaning and maintenance.
The advantage of higher pressure,large-scale press of tablet diameter,and used for abnormity or normal tablet pressing,which suitable for various and small batch producing. When the pressure over-loading,it will be stopped the machine automatically.
Driving system is equipped with oil box and running under oil,easy for heat dissipation and wear-resistence.
Stations (unit) |
19 |
Thickness of the die (mm) |
22 |
Maximum compression (KN) |
40 |
The diameter of the circle of the central pitch of upper &lower punches on the turret |
320mm |
Max. Diameter of tablet to be produced (mm) |
13 |
Rotary speed of the turret (rpm) |
20-40 |
Max. Filling depth (mm) |
15 |
Capacity of the tablets |
22,800-45,000pcs |
Max. Thickness of tablet (mm) |
6 |
Dimesion(mm ) |
880*750*1600 |
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
