FL-200 Fluid Bed Dryer
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
FL-5 Small Fluidized Drying and Granulating Machine
-
PGL-5 Fluidization Bed Granulating Machine for pellet coating and making
-
VH-100 V Type Dry Powder Mixing Machine/High Efficiency Blender/Blending Mahcine
-
VH-200 V Type Dry Powder Mixing Machine/High Efficiency Blender/Blending Machine
-
VH-400 V Type Pharmaceutical Powder Mixing Machine/Powder Mixer
-
LPG Series Centrifugal Spray Drying Machine,Spray Drying Equipment
Product Details
| Condition | New | Type | Fluid Bed Drying Equipment | |
| Place of Origin | Zhejiang, China | Brand Name | LTPM CHINA | |
| Model Number | FL-200 | Voltage | based on customer requirment | |
| Power(W) | Electronic Heating: 45Kw Steam Heating: 20Kw | Dimension(L*W*H) | Main Machine: 800*800*3500mm | |
| Weight | 2000kg(main machine) | Certification | CE | |
| Warranty | 1Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

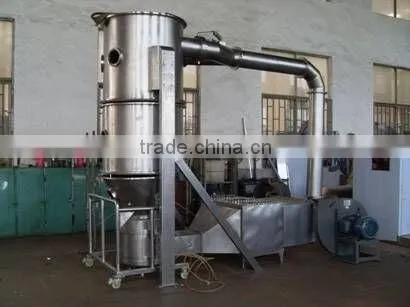

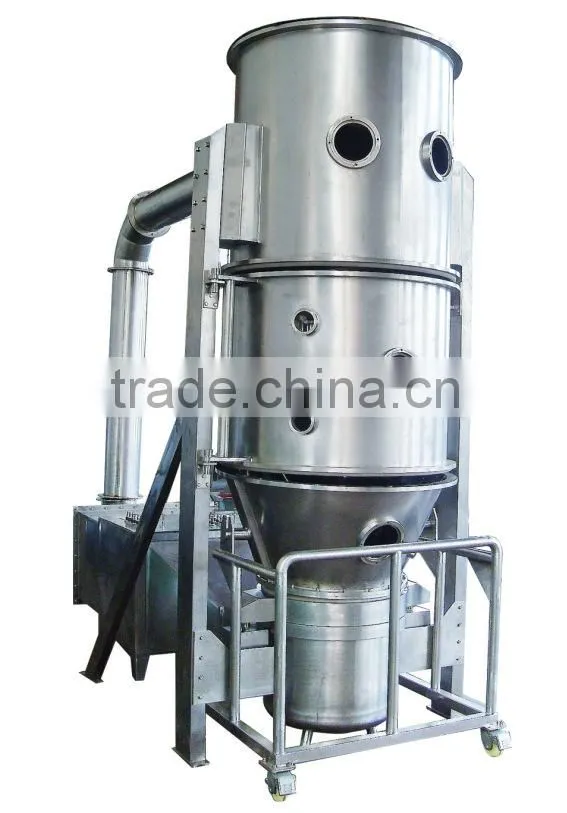

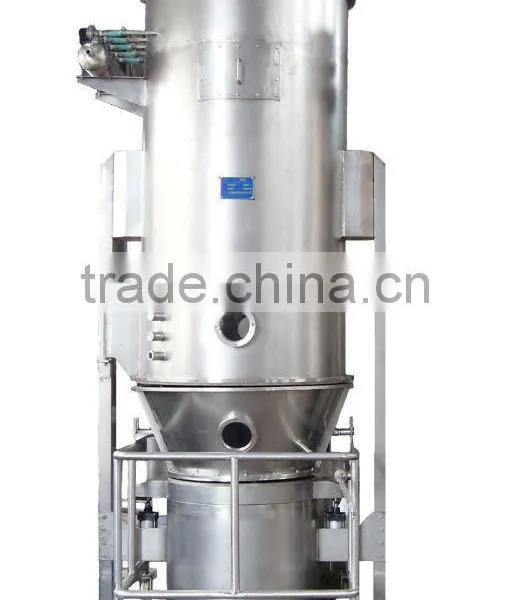

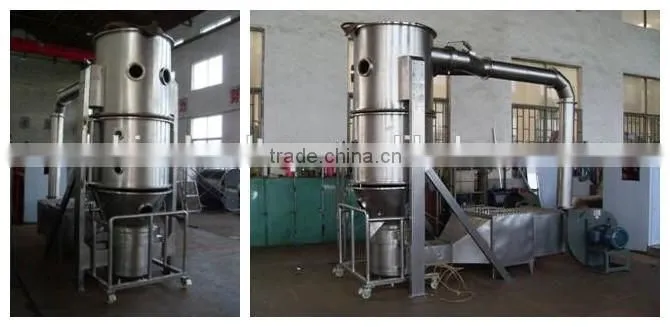

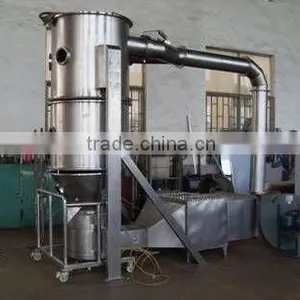

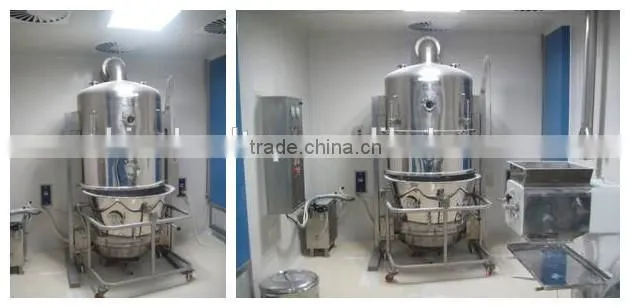

FL-200 Fluid Bed Dryer

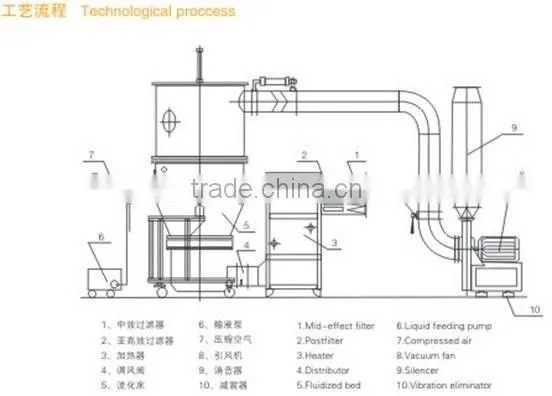

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials
1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
Model | 200 |
Volume (L) | 670 |
Amount to be treated (kg/per time) | 100/300 |
Power of fan (kw) | 30 |
Consume of steam 0.4MPa(kg/h) | 282 |
Consume of compressed air (m3/min) | 1.1 |
Noise,dB (A) | (fan is installed separately) ≤75 |
Main machine height (m) | 2.34×1.7×3.8 |
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
