Light Steel Drywall Channel Roll Forming Machine

Light Steel Drywall Channel Roll Forming Machine photo-1
Light Steel Drywall Channel Roll Forming Machine photo-2
Light Steel Drywall Channel Roll Forming Machine photo-3
Light Steel Drywall Channel Roll Forming Machine photo-4
Light Steel Drywall Channel Roll Forming Machine photo-5
US$ 13,000 - 23,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Work Pressure:
24Mpa
Production Capacity:
10-20m/min adjustable
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Work Pressure 24Mpa
Production Capacity 10-20m/min adjustable
Place of Origin Jiangsu, China
Brand Name BN
Model Number Purlin Roll Forming Machine
Voltage 380V/50HZ 3Phase(as Customer's Request)
Power(W) 8.5kw
Dimension(L*W*H) 6500*1000*1200
Weight 10 Tons
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Main Features

1. Keel size as per your drawing
2. Compact and elegant
3. PLC automatic control
4. Touch screen operation

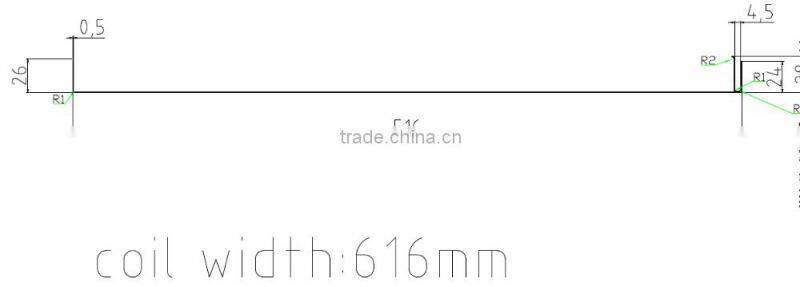

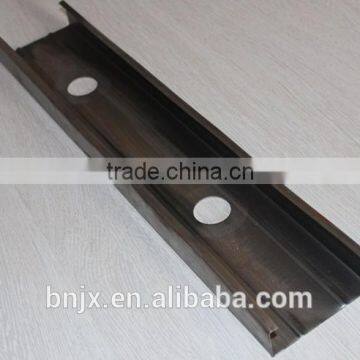

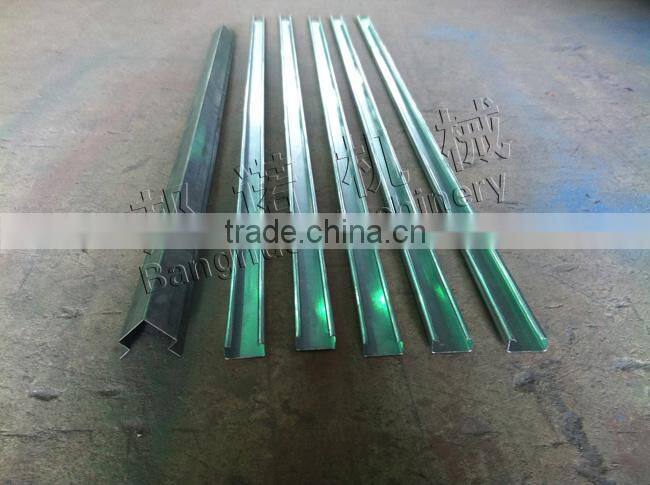

profile


Equipment Flowsheet
Detailed Technology
3T manual decoiler
Steel coil width
500mm
Dimensions
1700mm*1000mm*800mm
Bound of expand &fight
420mm—510mm
Capability
3000 Kg
Way of feeding
manual
Color
blue

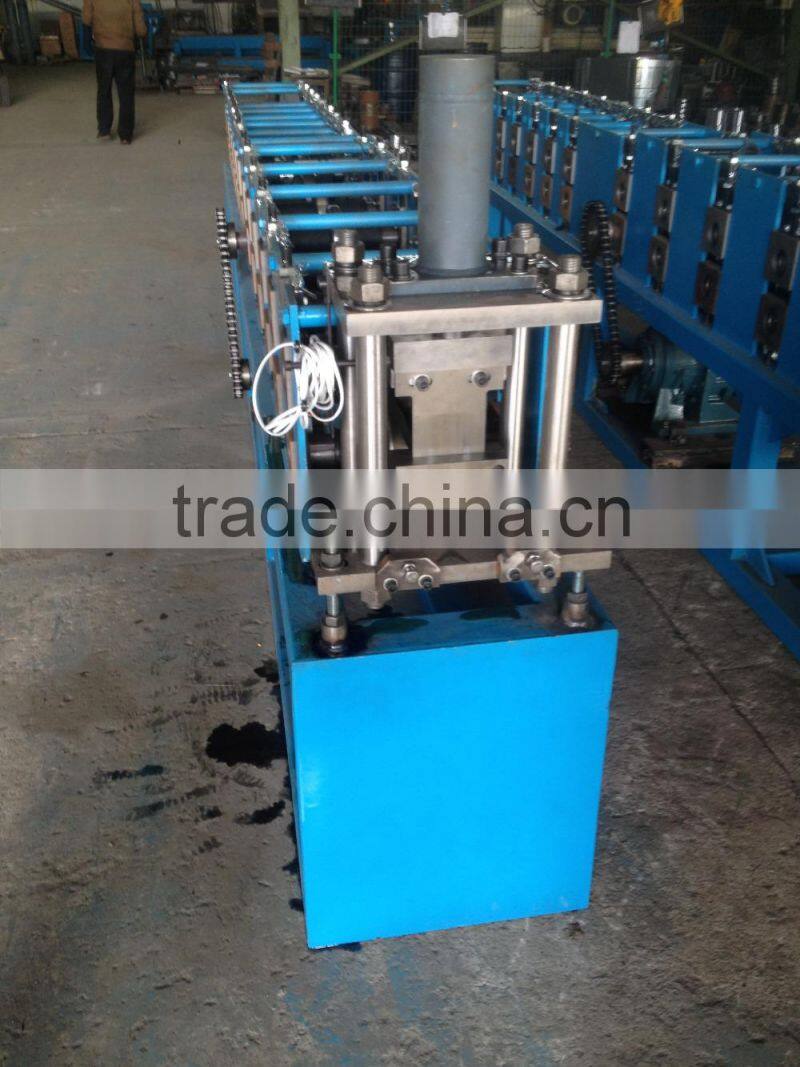

Forming Section
Thickness range
1.5-3.0mm
Main motor power
15kw, AC motor, motor inside of main machine(according the final design)
Roll station
14stations +1 station of turkey head
Shaft diameter
¢76mm
 Roller material
Gcr15, 58-62,HRC hardness and chrome plated surface
 Machine roll forming speed
0-15m/min
Transmission
by chain, one inch, double line
manual out table
One out table with three support roller
Size
2.0m long*0.8mwide*0.6-1mhigh
Jointed by 60mm*40mm tube
Color
Blue
Quantity
2units
Hydraulic station
Hydraulic power
5.5kw
Working pressure
20Mpa adjustable
Solenoid valve
1 groups
Hydraulic oil
46# hydraulic oil
Color
Blue (or base on customer request)
Quantity
1
Control desk
Programmable setting of profile length and quantity
Automatic stopping of the equipment after completion of the cutting programme will be provided.

 language
English and Chinese
Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Control panel
Button-type switch and touch screen
Unit of length
millimeter
PLC brand
Panasonic
Packing & Delivery

No paking, directly fix the machine to the container with belt and wood.

Our Service

1.1 year and life-long maintenance;

2.Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;

3.Installation Days:about 5-7 days


Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!

Certifications
Our Company

Our main products include roll forming machines, guardrail roll forming machines, steel deck forming machines, door & window frame roll forming equipment, steel metal door making lines, guide rail rollforming machines, upright post roll formers, pipe and tube roll formers, purlin cold roll forming machines, T-bar forming machines, grape trellis roll forming machines, roof tile forming machines, steel metal panel roll forming machines, stud and track forming machines, cable tray roll forming machines, shelf rack making machines, gutter roll forming machines, roller shutter manufacturing lines, car bumper forming machines, car door forming machines, distribution cabinet making machines, channel roll forming machines and so on.
