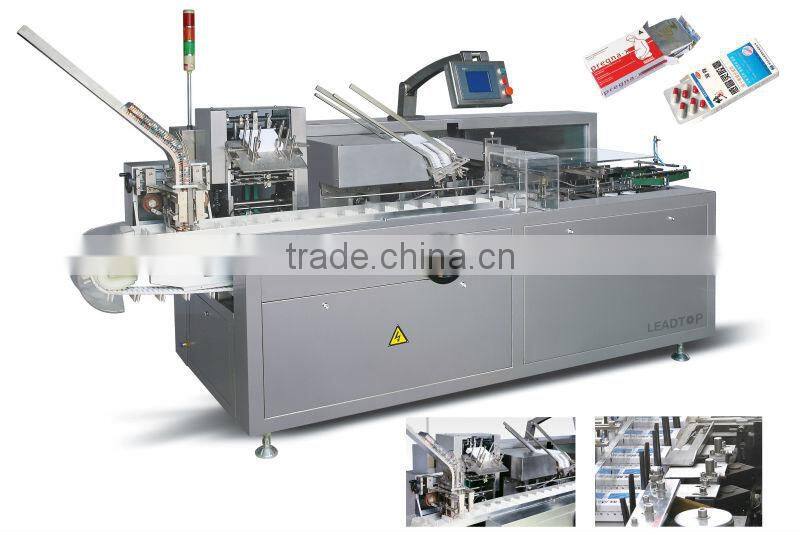

ZH-100 Automatic Horizontal Carton Packaging Machine

ZH-100 Automatic Horizontal Carton Packaging Machine photo-1
US$ 20,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, all kinds of solid object
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port or Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, all kinds of solid object
Packaging Type Cartons
Packaging Material Paper, Other, Paper, Cardboard
Automatic Grade Automatic
Driven Type Electric
Voltage 380V 50Hz Three phase (Optional)
Power 3Kw, 3Kw
Place of Origin Zhejiang, China
Brand Name LTPM CHINA
Model Number ZH-100
Dimension(L*W*H) 3250*1450*1550mm
Weight 1800kg
Certification CE,SGS,ISO
After-sales Service Provided Engineers available to service machinery overseas

ZH-100 Automatic Horizontal Carton Packaging Machine





Product Description



This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)
The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.





Functions



1. Rejection automatically if no product, nonstandard height or lack of leaflet.
2. Stop automatically if incorrect position of products into carton.
3. Stop automatically if no cartons or out of leaflet continues.
4. Easy to change to different products.
5. Protecting automatically for overloading.
6. Automatically display device for speed and finished products counting.





Technical Data



Model

ZH-100

Weight in kg

1100



Output & Speed

Steady production speed

50-100 cartons/min



Unfold Leaflets

Grammage

Between 65-80g/m2

Size range

(80-210) ×(70-210)mm  (L×W)

Fold range

(1-4 )fold

Notice: The leaflet can be folded by the machine



Carton (Card Board)

Grammage

Between 250-350g/m2

Carton Size mm

(40-125)×(12-85)×(16-70)mm



Utilities

Standard power supply

220V – 50Hz

Power consumption in KW

1.5

Air consumption

120-160L/min

Compressed Air Pressure

0.5-0.8MPa

Noise

<70        B

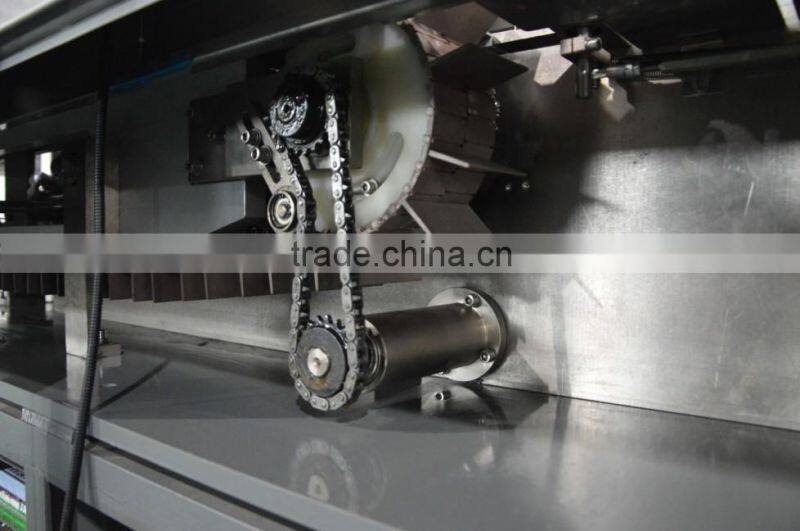

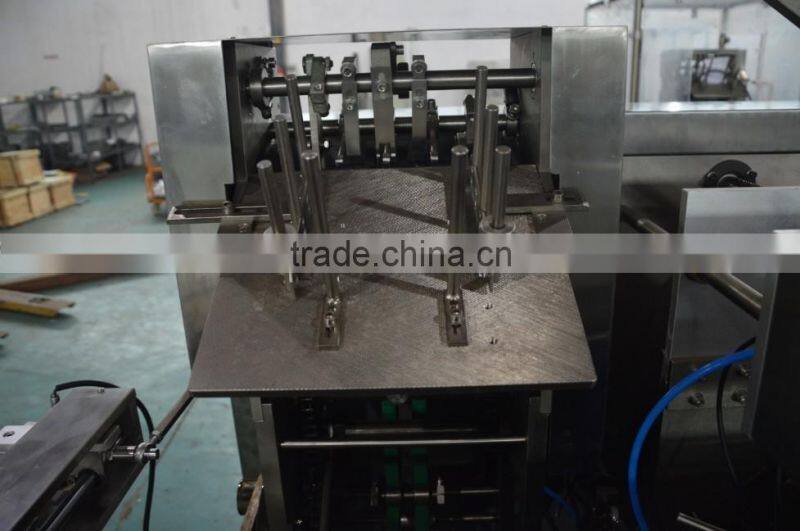

Machine Details



  ZH-100 Automatic Horizontal Carton Packaging Machine

ZH-100 Automatic Horizontal Carton Packaging Machine

ZH-100 Automatic Horizontal Carton Packaging Machine







                                                                     ZH-100 Automatic Horizontal Carton Packaging Machine





Our Services



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)



Company Information





ZH-100 Automatic Horizontal Carton Packaging Machine

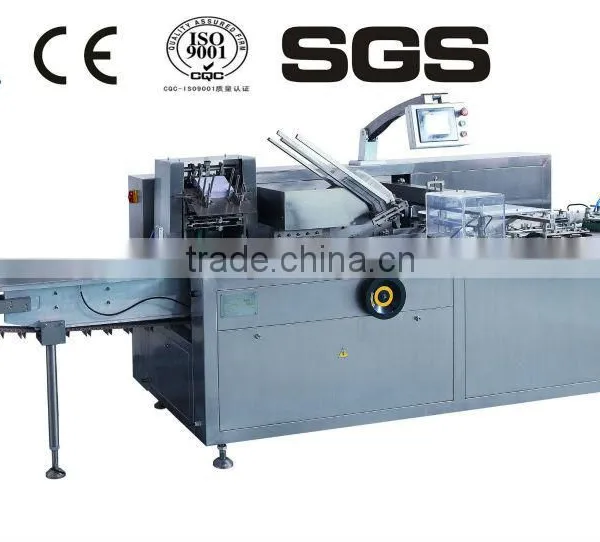

Certifications
