FU 0631-3SMD 3528
- Tauyeng (Air) Taiwan
You May Like
Product Details
| Place of Origin | Taiwan, China | Model Number | FU 0631-3SMD 3528 |
Product Description
Specifications
. 3 Single chips in 3528 SMD package. AC/DC 12V input (non-polarity/polarity)
. Fuse size 6x31mm
. Flate base SF6.3
. Fuse size 6x31mm (diameter x length)
. 3SMD 3528 size LED chip
Electrical and Optical characteristics:
Type | Red | Yellow | Blue | Green | White |
LED Quantity | 3 | 3 | 3 | 3 | 3 |
Single LED intensity (mcd) | 600~800 | 500~600 | 900~1100 | 1000~1300 | 1600~1800 |
Color Temperature (K) | <=1000 | 1500 | >=30000 | 6600 | 9000~11000 |
View Angle (degree) | 120 | 120 | 120 | 120 | 120 |
Wave Length (nm) | 630 | 595 | 470 | 525 | X: 0.29, Y: 0.28 |
Luminance (LM) | 4 | 4 | 3 | 10 | 12 |
Voltage (DC) | 12 | 12 | 12 | 12 | 12 |
Current (mA) | 15 | 15 | 15 | 18 | 18 |
Power consumption (W) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
Operating Temperature(oC) | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 |
StoreTemperature(oC) | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 | -40 ~ +80 |
Dimension (DxH)mm | 6x31 | 6x31 | 6x31 | 6x31 | 6x31 |

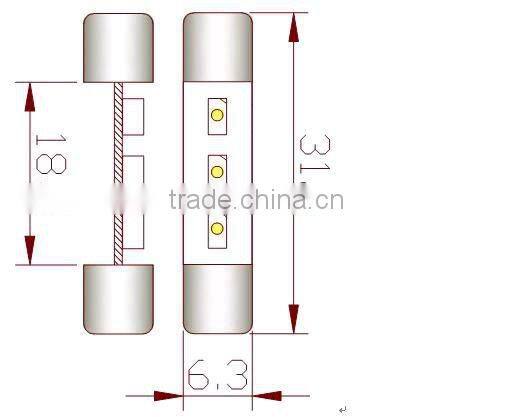

Drawing:
