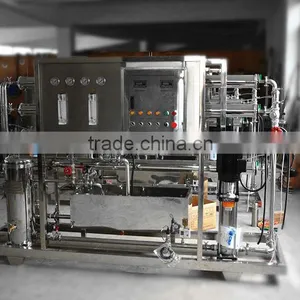

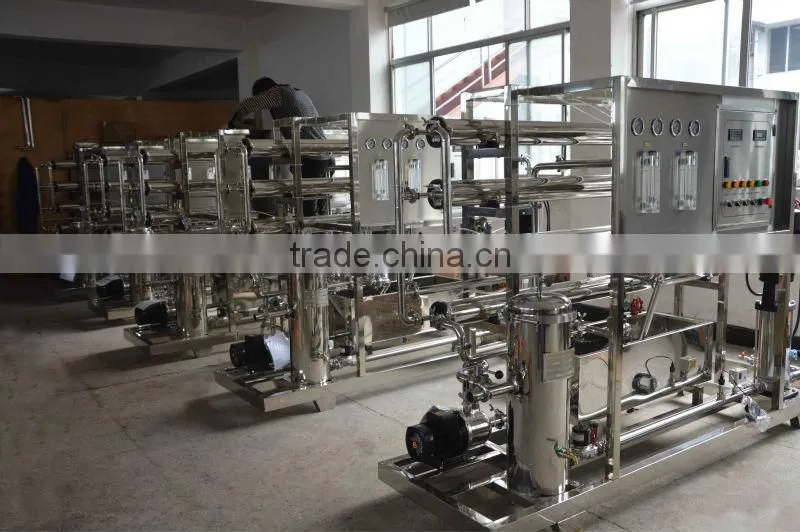

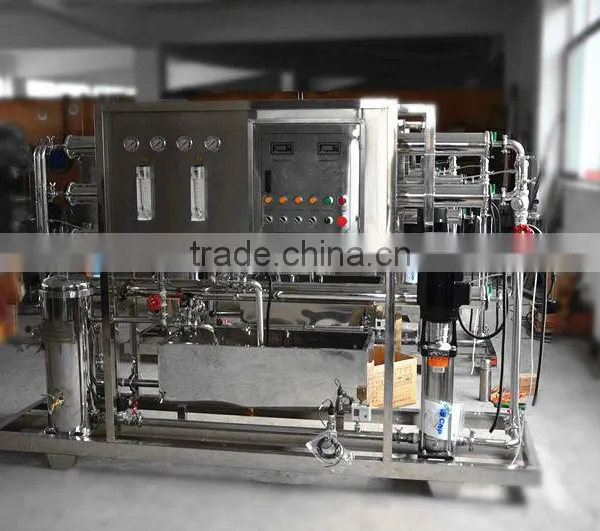

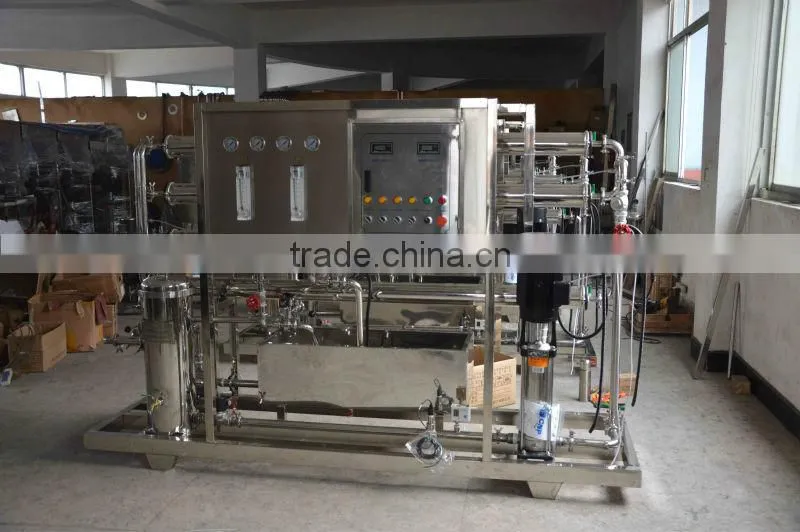

WP-4000S Water pleant equipment Singple Reverse Osmosis System

Simple Instruction:

Pure water treatment includes 2 types of system. Pre-water treatment machine includes raw water pump, sand filter, active carbon filer, Pipes, valves, gauges and support.

RO system includes RO membranes, dosing for soft, micro filter, pipes, gauges, high pressure pump and support.

Main Technical Data:

Model

WP-4000S

Purification Type

Reverse Osmosis (Single RO)

Material Consist

Stainless Steel 304

SS 316L is optional

Bacteria value

Not more than 20

Capacity

4000L/H

Total Power

10.5KW

Power supply

AC220V / AC380V / 415V±5%  50HZ / 60HZ

RO stage

According to client's demands

Desalt rate

99%

Operation pressure

0.7-1.5Mpa

PH of raw water

2-11

Conductivity of raw water

below 600 (below 8 finished water)

Installation:

Raw water pump + silica sand filter +active carbon filter +softener + micron filter + high pressure pump + RO system.

Feature:

RO Pure water treatment plant is for producing drinking water, foods factory, beverage factory, fruit& vegetable factory etc. The machine is integrated into a group, the assembly and transportation are rather convenient.

It's simply operation and has long lifespan.

Main components: RO membrane (Hydecanme),

High pressure pump (Nanfang. China)

Electricity conduction meter

Over high or over low pressure protection facilities

304 Stainless steel. SS316L is optional and available

Suitable for investment for mid-scale enterprises

The standard of supplied water

Electricity conduction rate: Nor more than 10us/cm

Plant process:

1. Raw water pump-- provide the pressure to silica sand filter/ active carbon filter

2. Silica Sand filter -- get rid of turbidity, suspended matter, organic matter, colloid and so on

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on

4, Softener--reduce the hardness of water

4. Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.

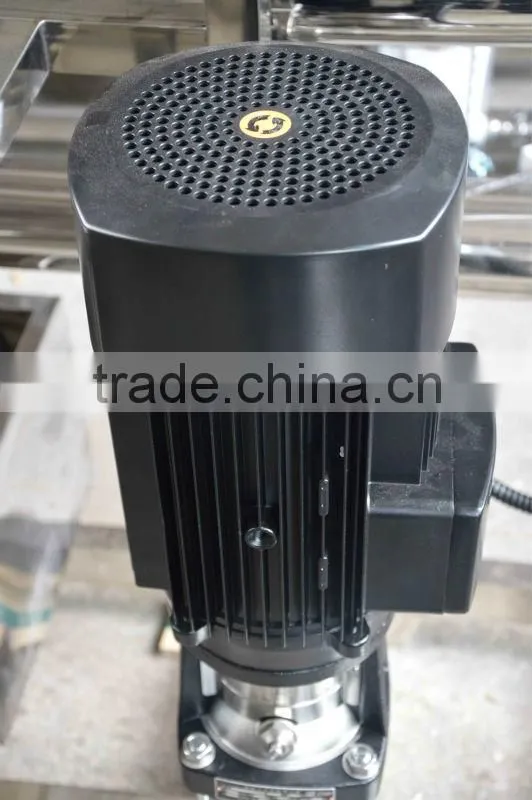

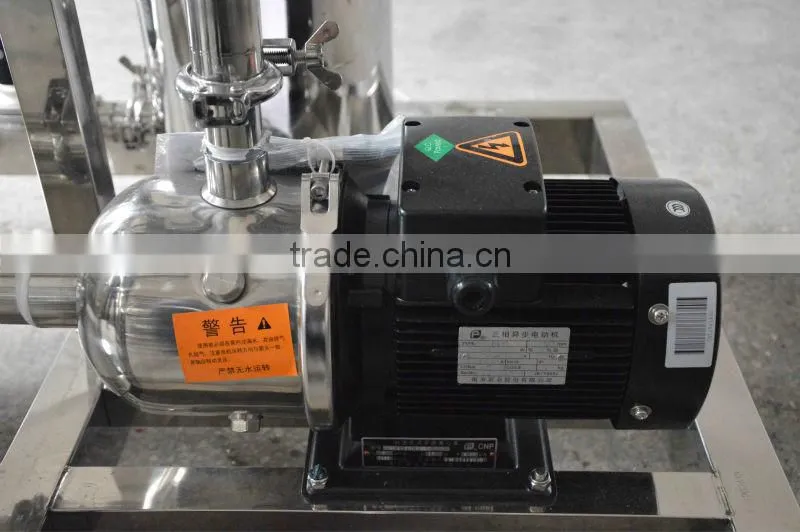

5. High pressure pump-- Provide the high pressure to RO membrane (at least 2.0 M pa).

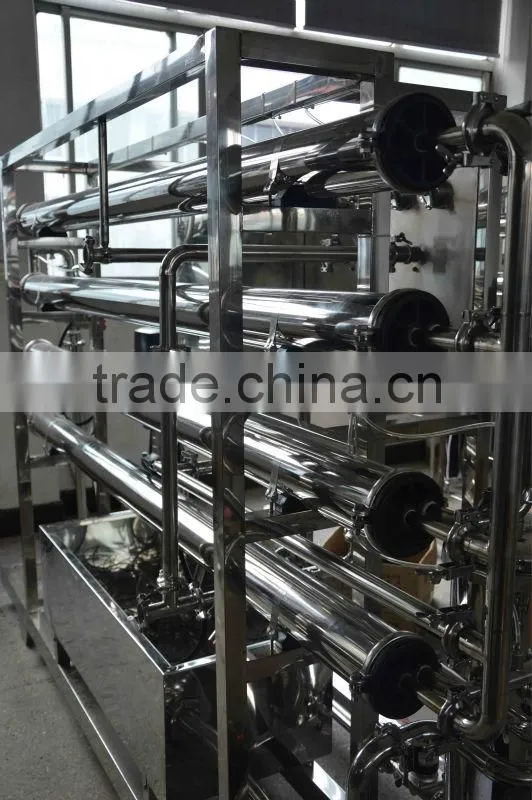

6. RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.
