pvc extruding machine pipe
- 2 Set / Sets per Month
- Qingdao Port
- T/T
Product Details
Condition: | New | Application: | Plates | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | automatic | Place of Origin: | Shandong, China |
Brand Name: | Hanhai | Model Number: | SJSZ | Voltage: | 380V 50HZ |
Power(W): | 120KW | Dimension(L*W*H): | 25*3*3 | Weight: | 5000 |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

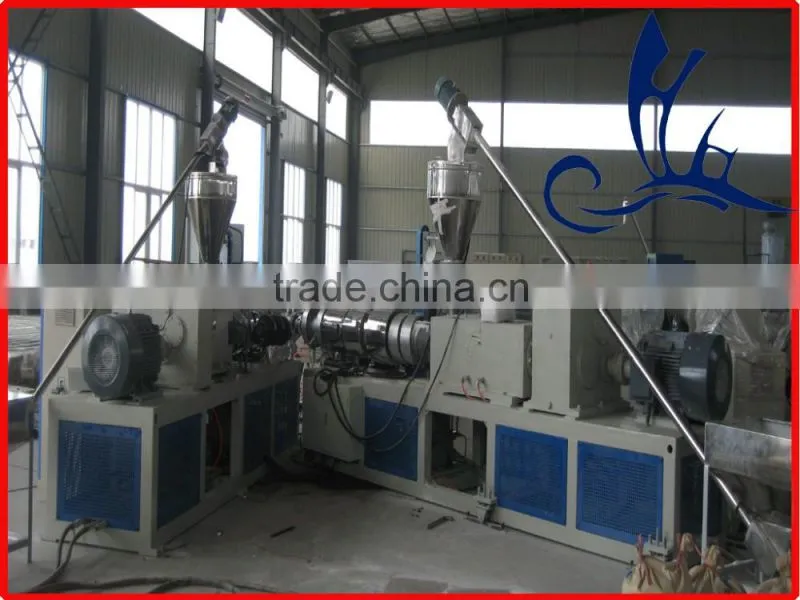

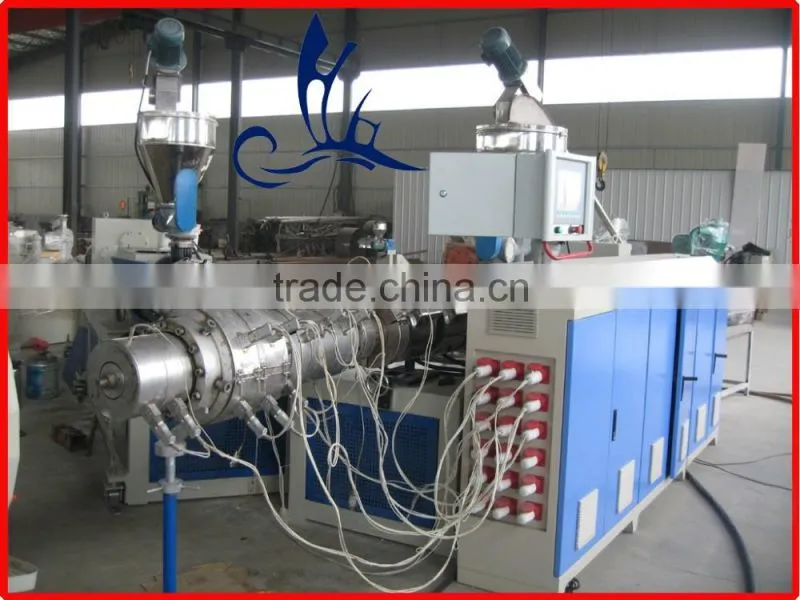

pvc extruding machine
/en/
/
contact person:Tracy Guan
Skype:tracyroseguan
Mobile:+8613864850419
It is the special equipment designed for various kinds of PVC powders extruding and forming. Providing different mold and post processing equipment, it will be applicable to produce PVC pipe, profile, board, sheet, rod and granule.
Oil cooling unit is assembled for screw and barrel; this makes the temperature control easy and precise. The main motor, gear box and screws are in one central line, which is easy to repair. The temperature control unit is reliable and operating easy. The special designed cooling system has larger heating dispensation area, quickens the cooling speed; the temperature can be controlled within ±1°C.
Main technical parameter.
Model. | SJSZ45/90 | SJSZ51/105 | SJSZ55/110 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
Transmission power(kw) | 15. | 18.5 | 22 | 37 | 55 | 110 |
Screw diameter(mm) | Φ45/Φ90 | Φ51/Φ105 | Φ55/Φ110 | Φ65/Φ132 | Φ80/Φ156 | Φ92/Φ188 |
Screw quantity | 2. | 2 | 2 | 2 | 2 | 2 |
Rotation speed(r/min) | 45 | 40 | 38 | 38 | 37 | 36 |
Screw Torque Nm | 3148 | 6000 | 7000 | 10000 | 14000 | 32000 |
Extrusion Capacity(kg/h) | 70 | 100 | 150 | 250 | 400 | 750 |
Center height(mm) | 1000 | 1000 | 1000 | 1000 | 1100 | 1200 |
Lx W x H(mm) | 3360x1290x2127 | 3360x1290x2127 | 3620x1050x2157 | 3715x1520x2450 | 4750x1550x2460 | 67250x1550x2814 |

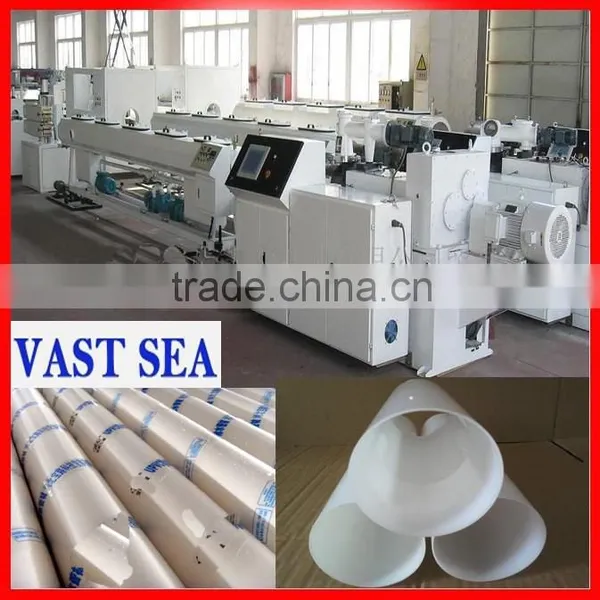

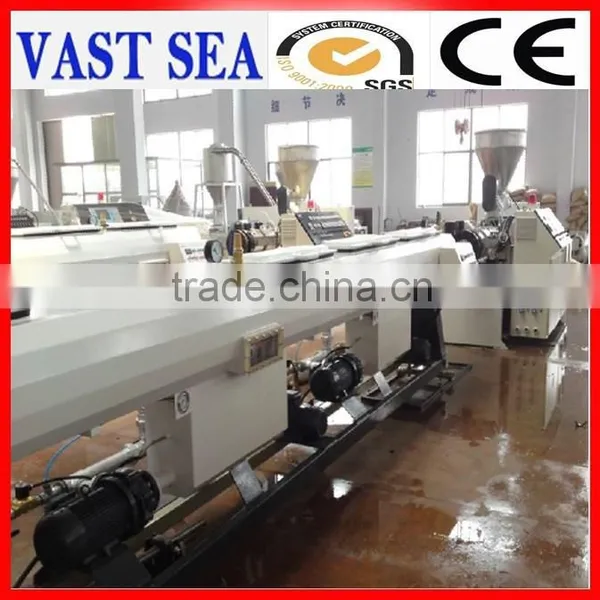

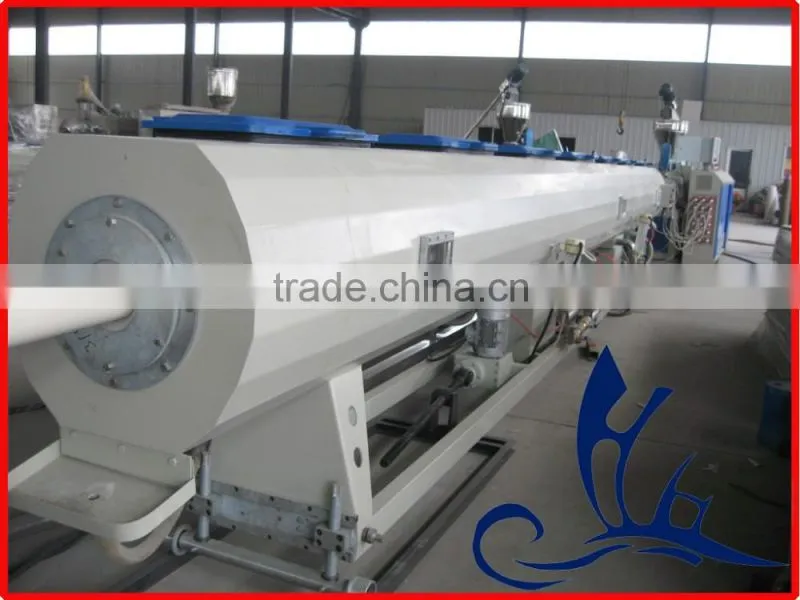

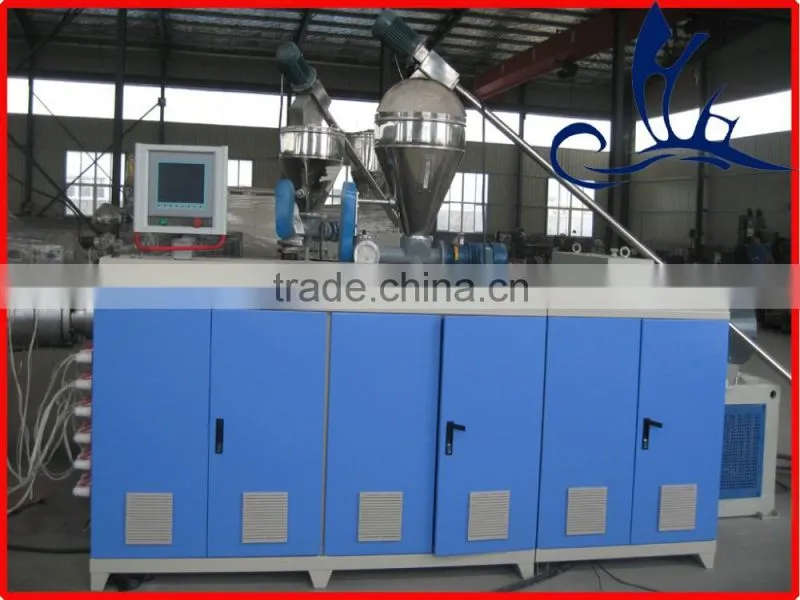

Reference Pictures:
standard sea safe film and wooden cased for small spareparts by sea or train.
Our services:
Turn key project.
Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
Arrangement for inspection, installation and testing work
a.After being informed machines ready for inspection, customer can send engineers to our factory.
b.After the machines are delivered to customer’s factory;We will send one or two technicians to the factory after preparation work is completed;Technicians will be responsible for guide on-site installation and testing machines.
c.Meanwhile technicians will give free training lessons to labors in customer’s factory.
Qingdao Hanhai Plastic Machinery Co.,Ltd. is located in Jiaozhou city, Shandong province, China. It’s high-tech manufacturer specializing in research & development and producing extrusion equipment. Company has good R & D employees and experienced mechanical , electrical commissioning engineers. The main products are including:
UPVC, PPR small diameter pipe extrusion line.
Large diameter PE water pipe, MDPE gas pipe, UPVC pipe extrusion line.
PVC,PP,PE,ABS,PC,PS sheetboard extrusion line.
PVC window profile, ceiling , window sill, siding plate extrusion line.
PVC, PP, PE wood plastic door panel extrusion line.
PE-RT hot water pipe, PEX underground warm pipe, PP-R, PP, PP-B new water pipe extrusion line.
PE Collective fiber glass pipe, PVC-C high voltage cable protective pipe, PE/PVC cross-section communication cable pipe extrusion line.
All kinds of conical twin screw extruders, parallel twin screw extruders,single screw extruder.
We have more than 15 years producing experience . Can supply all technology information you need.
For more information pls contact :Tracy Guan
Mobile/whatsapp/viber /wechat:+86-13864850419
skype:tracyroseguan
