Brand Name PINGUAN
Model Number PG-1
Power Electronic
Usage Other, leakage testing machine

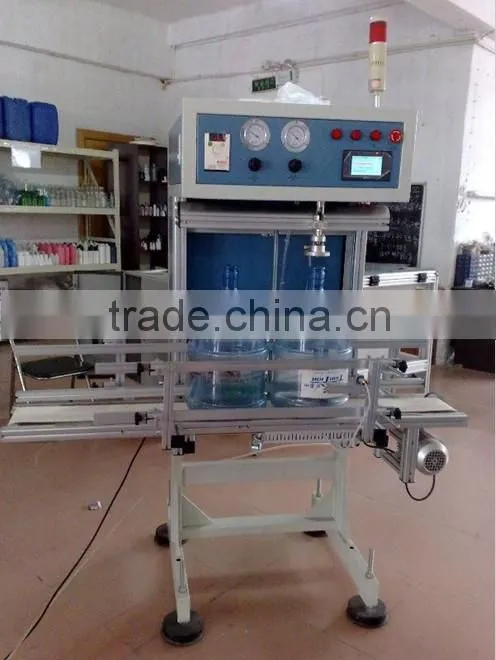

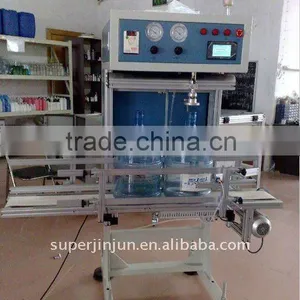

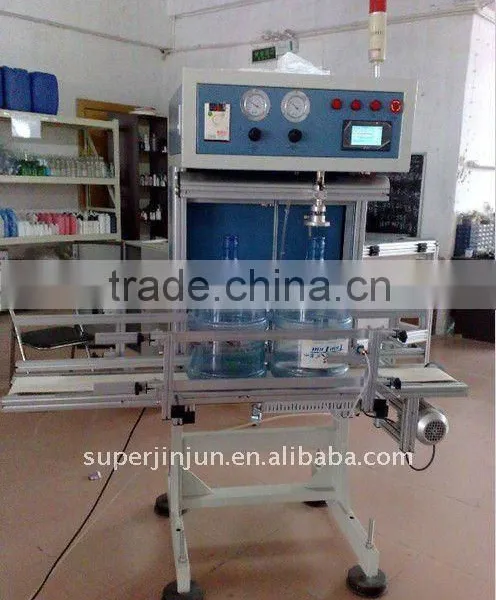

5 gallon precision leak tester





 5 gallon precision leak tester

CHINA NO.1 BOTTLE LEAK TESTER MANUFACTURER





Precise air blowing container leak tester machine



Pinguan leak tester machine is a cost effective way to monitor good or bad containers and eliminate bad containers on production lines. It uses the latest leak detection technology from Europe and U.S.A. to ensure high precision, stable performance and high proficiency. Our company has 10+ years in leakage detection, and owns a number of patents on leakage detection technology in China. Every Pinguan machine is manufactured in strict accordance to the ISO 9001 and CE certificates, to guarantee high quality while serving every production sector.



Features

1. High precision and stability, being able to detect any tiny leakage
2. Non-destructive detection technology
3. Operator touch panel and Siemens PLC, stale, durable and high response.
4. Testing head and conveyor can be adjusted to suit different containers.
5. The fastest detecting speed can be 36,000 bottles per hour.
6. Customized design is available.
7. Options on manual operation or automatic detection.
8. It can be in-line with blow molding machine, filling machine etc. for a fully automatic production.





PG Series Automatic Linear Precision Leak Tester Machine Specifications



Model

PG-1

PG-2

PG-3

PG-4

PG-5

PG-6

PG-8

PG-12

Testing Heads

PCS

1

2

3

4

5

6

8

12

Driving Motor

W

90

90

180

180

180

180

180

180



Detecting Speed



0.25L

BPH

1800

3000

3600

4800

6000

7200

9600

12000

0.5L

BPH

1350

2500

3300

4400

5500

6600

8800

11000

1L

BPH

1200

2000

2900

3860

4830

5800

7740

9680

5L

BPH

900

1530

2160

2880

3600

4320

5760

7200

10L

BPH

500

850

1200

1600

2000

2400





20L

BPH

400

680

960

1280

1600

1920





30L

BPH

350

590

840

1120

1400

1680





Conveyor Length

M

1.5*0.8

1.5*0.8

2*0.8

2*0.8

2.5*0.8

2.5*0.8

2.5*0.8

2.5*0.8

Air Pressure

Mpa/cm2

4

4

5

5

6

6

8

8

Power Consumption

W

200

250

400

400

400

400

400

400

Net Weight

Kg

100

110

110

110

150

160

170

180

Dimensions

M(L*W*H)

1.5*1.0*1.6

2.1*1.0*1.6

2.1*1.0*1.6

2.1*1.0*1.6

3.1*1.0*1.6

3.1*1.0*1.6

3.1*1.0*1.6

3.1*1.0*1.6
