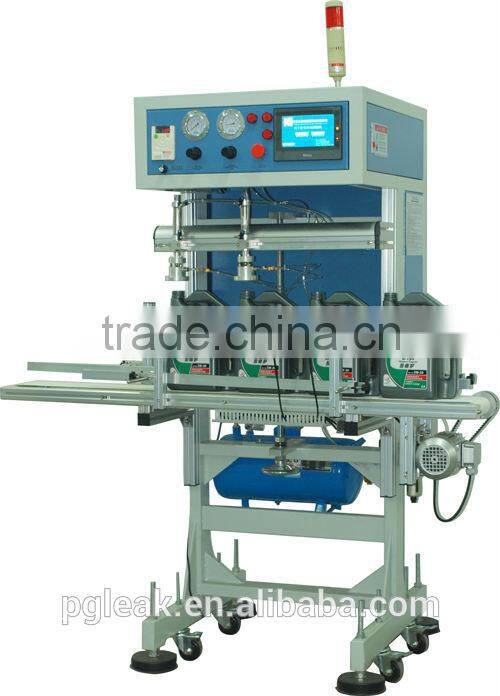

PE botle precision leak tester
- 50 Unit / Units per Month
- SHENZHEN
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | PINGUAN | Model Number: | PG-2 |
Power: | Electronic | Usage: | Plastic Testing Machine |
Product Description
CHINA NO.1 BOTTLE LEAK TESTER MANUFACTURER
Precise air blowing container leak detector
PG bottle/pot leak detection equipment widely applies to industries in food,medicine, medical instrument, chemical, the gas spray pot,plastic container and the automobile, motorcycle parts.Ultrasonic welding production line examination is also the important equipment by which the quality safty supervision department use for spot-check and leak detection to drugs and food
Pinguan leak detection machine is a cost effective way to monitor good or bad containers and eliminate bad containers on production lines. It uses the latest leak detection technology from Europe and U.S.A. to ensure high precision, stable performance and high proficiency. Our company has 10+ years in leakage detection, and owns a number of patents on leakage detection technology in China. Every Pinguan machine is manufactured in strict accordance to the ISO 9001 and CE certificates, to guarantee high quality while serving every production sector.
Features
1. High precision and stability, being able to detect any tiny leakage
2. Non-destructive detection technology
3. Operator touch panel and Siemens PLC, stale, durable and high response.
4. Testing head and conveyor can be adjusted to suit different containers.
5. The fastest detecting speed can be 36,000 bottles per hour.
6. Customized design is available.
7. Options on manual operation or automatic detection.
8. It can be in-line with blow molding machine, filling machine etc. for a fully automatic production.
PG Series Automatic Linear Precision Leak Detector Specifications
Automatic Linear Precision Leak Tester Specifications
Model | PG-1 | PG-2 | PG-3 | PG-4 | PG-5 | PG-6 | PG-8 | PG-10 | PG-12 | PG-15 | |||
Testing Heads | PCS | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | ||
Detecting Speed
| 0.2L | Per Hour | 1200 | 1800 | 2100 | 2600 | 3000 | 3320 | 4230 | 5140 | 5760 | 6750 | |
0.5L | Per Hour | 1200 | 1800 | 2100 | 2600 | 3000 | 3320 | 4230 | 5140 | 5760 | 6750 | ||
1L | Per Hour | 1200 | 1800 | 2100 | 2600 | 3000 | 3320 | 4230 | 5140 | 5760 | 6750 | ||
5L | Per Hour | 900 | 1440 | 1960 | 2480 | 2900 | 3080 | 4000 | 4800 | 5400 | 6350 | ||
10L | Per Hour | 720 | 1300 | 1660 | 2200 | 2770 | 2880 |
|
|
|
| ||
20L | Per Hour | 600 | 1100 | 1540 | 1920 | 2300 | 2700 |
|
|
|
| ||
30L | Per Hour | 450 | 900 | 1270 | 1600 | 1890 | 2160 |
|
|
|
| ||
Conveyor | M | 1.5 | 1.5 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3.0 | ||
Air Pressure | Mpa/cm2 | 4 | 4 | 5 | 5 | 6 | 6 | 8 | 8 | 8 | 8 | ||
Power Consumption | W | 200 | 250 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | ||
Net Weight | KG | 100 | 110 | 110 | 110 | 150 | 160 | 170 | 180 | 200 | 200 | ||
Dimensions | M | 1.5*1.0*1.6 | 2.1*1.0*1.6 | 2.1*1.0*1.6 | 2.1*1.0*1.6 | 3.1*1.0*1.6 | 3.1*1.0*1.6 | 3.1*1.0*1.6 | 3.1*1.0*1.6 | 3.1*1.0*1.6 | 3.1*1.0*1.6 |
