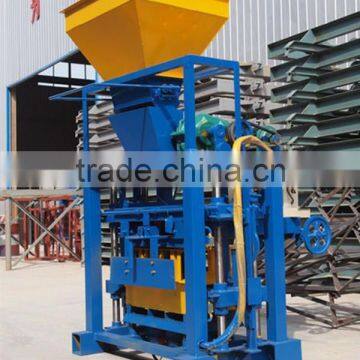

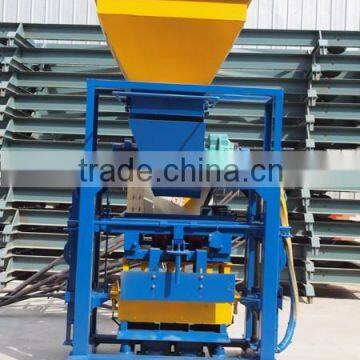

QT40-1 Semi-automatic machine for concrete block from DONGYUE machinery group
This machine equipped with super vibration motor, The production of blocks are of good quality, large density and high strength. adopting manual push-pull mold, artificially packing material,simple operation, save energy, finished brick faster, low labor intensity.
QT40-1 Theoretical Production capacity
Size(LxWxH) | Pcs/Mould | Pcs/hour | Pcs/ 8 Hr |
400X150X200 | 5 | 360-450 | 2880-3600 |
400X200X200 | 4 | 280-360 | 2240-2800 |
240X115X52 | 18 | 1850-2000 | 14800-16000 |
QT40-1 concrete brick making machine Land and electric request
1. Workshop: 150m2
2. Workers: 3 person
3. Material: Concrete, cinder, slag, crushed stone
4. Electric request: 380V, 50HZ/60HZ, 3 phase
JQ350 vertical mixer Main parameter
Power | 5.5kw |
Spindle speed | 32r/min |
Per mixing quantity | 0.55m3(750kg) |
Dimension | 35×1250×1200mm |
Weight | 530kg |
QT40-1 moving machine working video link:/watch?v=syhbKE8eDgM
Dongyue Machinery Group Introduction Video on Yutube:/watch?v=ajPDe3rivQU
Donyue Machinery Group Co.,Ltd(Subsidiary company-LinYi Donyue IMP&EXP Co.,Ltd). is a company specialized in producting Automatic brick machine , aerated concrete block production line, the aerated concrete wall panel production line, autoclaved lime sand brick production line, autoclave etc. A and second-class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, plant asphalt nine series,more than 60 varieties.
Our company designs this series egg laying block making machine according to the customers’ requirement, use the optimize design,reasonable structure, strong feeding materials, strength the pressure. This is one efficiency, economy, suits for minor enterprises.
Now we set up office in India, Indonesia,Vietnam, can supply the best after-sale service for customers
We are a memer of Alibaba Trade Assurance,which can provide a safegard for buyers' payment.
- We use the best steel Q235B, which is featured by high efficiency and high strength

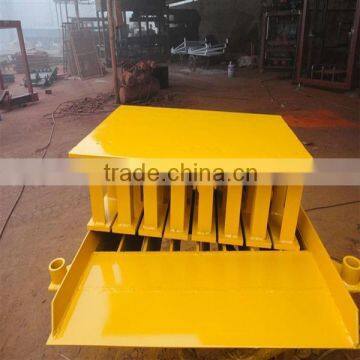

- All mould use heat treatment .
- Our motor use German brand Siemens and switch is Schneider brand.
- Huge Selection. We offer a wide range of machines.You can find all kinds of machine you need..
- Individual approach and flexible system of discounts. Every client is very important for us, so we are ready to discuss with you any comments and suggestions, as well as provide you with the most favorable purchase terms and conditions.
- Product quality. All products of our company are certified and continuous quality control.
- Environmental friendliness. Our supplies are made from environmentally friendly materials and absolutely safe for enviroment.
• One year warranty for the machine.
• We can send our engineers/technicians for installation of the production line . Should make sure the safety of our engineers.
• We can provide internship service and help you train the operator and mechanic.
• Free production technology and process configuration.
• We can help you to design the product line , workshop .
Any question about QT40-1 concrete brick making machine ,contact with us please,sincere service for you .
