Friction Disc for Pipeline Cleaning Pig

US$ 3 - 100 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

Model Number:

WS-P

Shenyang Wensheng Instrument Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Yingkou/Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name WS

Model Number WS-P

Condition New

Product Description

Introduction of the polyurethane pig cup
Polyurethane material is a kind of polymer material, it is a new kind of organic high polymer material with good elasticity. High resistance to wear, Saturated steam down,Low temperature and good flexibility, it can guarantee the pig to run distance reach *200km* In the process of pigging.

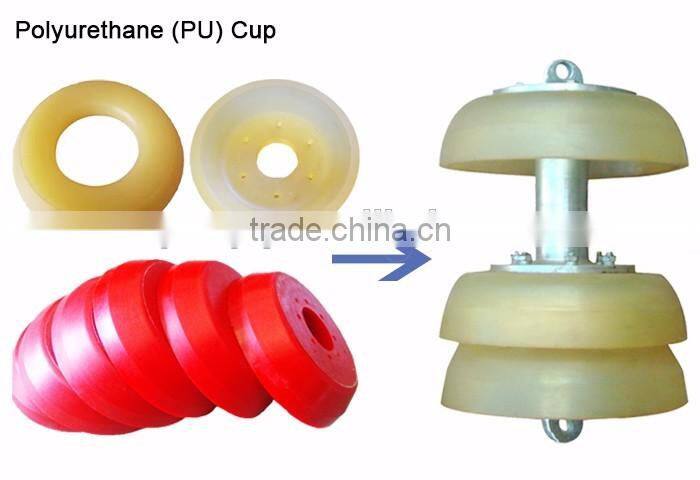

According to the function during the pigging we classify pig as *Guide Cup* and Sealing Cup.
*Sealing Cup*: In the process of the pig running, it can seal pipe effectively and then make pressure differential of before and after pig. The differential pressure push it forward and Clean up the impurity and others function etc.
Guide Cup: In the process of the pig running, it can guide the cleaning pigs advance, Support the pigging weigh to prevent the eccentric wear, Clean up the impurity and others function etc.
The outside diameter of guide cups and seating cups, generally is the maximal diameter of 1.03 ~ 1.05 times.

No.	Factory inspection main indicators	Unit	Guide Cup	Seal Cup	Test method
1	Hardness(SHORE A)	Shao A	85	80	GB531-92
2	Tensile strength	MPa	50	40	GB528-82
3	Elongation at break	%	600	700	GB528-82
4	Tensile set	%	12	12	GB528-82
5	Tear strength	KN/m	90	75	GB530-81
6	Impact resilience	%	35	55	GB1681-91
7	Akron abrasion	Cm3/1.61Km	0.01	0.01	GB1698-82
