QT40-2 manual hollow brick making machine price for small brick factory
- 500 Set / Sets per Month
- Qingdao port
- T/T Credit Card
- Hand press block making machine QTJ4-50
- QTY10-15 ecological concrete bricks making machine
- QTJ5-20 hollow bricks machine indian price
- QTJ5-20 hollow brick machine,interlocking brick machine price
- QTY10-15 hydraulic full automatic brick making machine for India
- QTJ5-20 hollow brick machine,eco brick making machine
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | No |
Capacity: | 2500PCS/shift 400x200x200mm | Place of Origin: | Shandong, China | Brand Name: | Dongyue |
Model Number: | QT40-2 | Voltage: | as your requirement | Power: | 16.3kw |
Dimension(L*W*H): | 1350x1460x1700 | Certification: | CE,ISO9001,SGS,Famous Trademark of China | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
QT40-2 manual hollow brick making machine price for small brick factory
QT40-2 type small semi-automatic baking-free brick molding machine absorbs foreign advanced mechanical technology, can produce hollow blocks, solid bricks and so on. it uses international brand-name Germany Siemens motors and Japan Mitsubishi PLC, the over travel-limit switch is Omron brand, reliable quality, low fault rate and durable. It adopts national standard high strength steel, with reliable quality.
QT40-2 block making machine main technical parameters :
Dimension of host machine | 1350*1460*1800mm |
Molding time | 30-40s |
Vibration form | Platform and mold vibration |
Vibration frequency | 2800 r/min |
Capacity | 16.3KW |
Vibration force | 30KN |
Host machine power | 8.8KW |
Weight | 1.8T |
Rated voltage | 380V |
Pallet size | 850*450*30mm |
QT40-2 production capacity :
Type | size(mm) | Molding time | Pcs/mold | Pcs/h |
Hollow block | 400*150*200 | 30-40s | 5 | 450 |
Hollow block | 400*200*200 | 30-40s | 4 | 360 |
Hollow block | 400*240*190 | 30-40s | 3 | 270 |
Solid brick | 240*115*53 | 30-40s | 18 | 1620 |
Workingprinciple :Adopting bottom mould directional vertical vibration and upper mould pressurized vibration to make the product molding fast, high density and strength uniform. This machine is very simple to operate.
Theoretical workshop requirements: 50 square meters, need 3-5 workers, one operates the mixer and feeds material, one operates the host machine, and two workers transport the blocks. The office, curing area, stacking area are arranged according to your specific conditions.

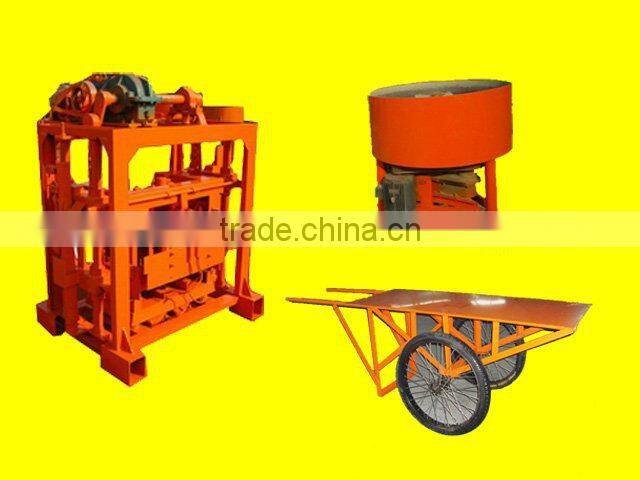

QT40-2 block making machine equipment list
No. | Item | Quantity |
|
Batching system | |||
01 | JD350Mixer(Φ1.2M) | 1set |
|
Block machine parts | |||
01 | QT40-1 Block making machine | 1set |
|
02 | Electrical control unit | 1set |
|
03 | Block mold | 1set |
|
04 | Manuel trolley | 2sets |
|
05 | Some spares and tools | 1set |
|

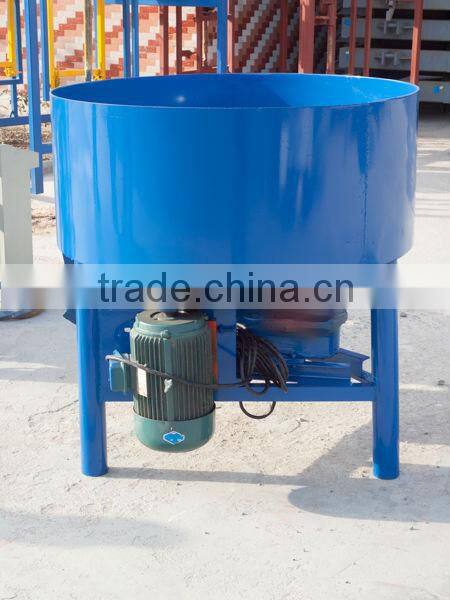

The mixer matched with QT40-2 Blcok making machine
