Home > Products > Simple block production line > Popula QT4-25 fully automatic flyash brick making machine hydraulic
Popula QT4-25 fully automatic flyash brick making machine hydraulic
- 200 Set / Sets per Month
- QINGDAO PORT
- T/T D/P D/A Credit Card
-
China pe200x300 smallest jaw crusher
-
Popular compound pendulum jaw crusher price
-
2016 china products stone coated steel roofing tile ,shingle steel roof tile
-
2016 china products lightweight roof tile,blue glazed roof tile
-
colored metal roofing prices,sand coated metal roofing tiles
-
roofing tiles coated with stones,roofing tiles for houses
Product Details
| Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
| Processing: | Brick Production Line | Method: | Vacuum Extruder | Automatic: | No |
| Capacity: | 4000-5000 pieces per 8 hours | Place of Origin: | Shandong, China | Brand Name: | DONGYUE |
| Model Number: | QT4-25 | Voltage: | as per local requests | Power: | 23.5KW |
| Dimension(L*W*H): | 3700*2100*2300 | Certification: | ISO/CE/SGS, ISO CE SGS | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Popula QT4-25 fully automatic flyash brick making machine hydraulic
1.Techinical Parameter of brick making machine for sale qt4-25 :
Dimension of host machine | 4000×1900×2320mm | Host machine power | 20 KW |
Vibration Force | 45Kn | Vibration Frequency | 4200r.pm |
Mould period | 25S | The size of the pallet | 900×650mm |
Production | 5760pcs(400*200*200)/8hours | Pressure of block | 9Mpa-10Pma |
Host machine | |||
1 | 1.5KW*2 | UPPER VIBRATION MOTOR | Chinese Famous Brandname |
2 | 3KW*2 | DOWN VIBRATION MOTOR | |
3 | 1.5KW | CONCRETE FEEDER | 220VOLT, 60HZ, 3PHASE AND NEUTRAL |
4 | 2.2KW | CONCRETE FEEDER | |
5 | 2.2KW | PALLET FEEDER | |
6 | 2.2KW | MOULD UP & DOWN | |
7 | 0.75KW | Hook | |
8 | 0.75KW | BLOCK FEEDER | |
9 | 0.75KW*2 | STACKER |
2.Production capacity of brick making machine for sale qt4-25 :
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X100X200 | 7 | 630-840 | 5040-6720 |
400X150X200 | 5 | 450-600 | 3600-4800 |
400X200X200 | 4 | 360-480 | 2880-3840 |
400X250X200 | 3 | 270-360 | 2160-2880 |
240X115X 52 | 26 | 2400-2880 | 19200-23040 |
all kind of hollow and solid block | |||

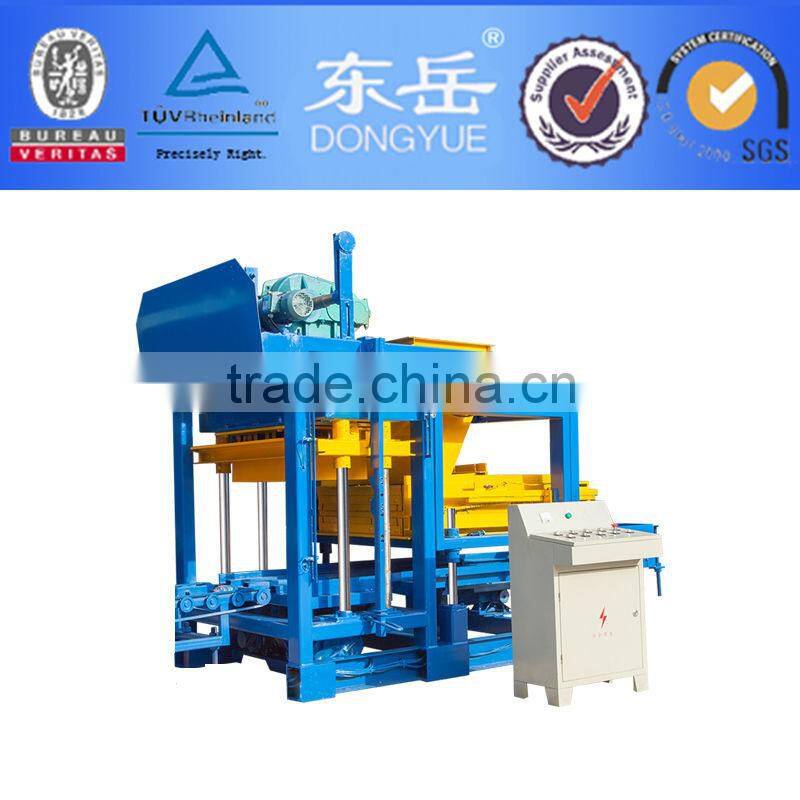

Machine photo of manual hollow block maker/block former/qt4-25 :
4.Raw material proportion of manual hollow block maker/block former/qt4-25 :
1. cement 8-10%, 30%-40%sand , 50%-60% crushed stone
2. cement 8-10% , flyash 30%, sand (stone powder)60%,2 gypsum
area :
workshop: 50-100 square meter
Total land : 1000 square meter( according to your own situation)

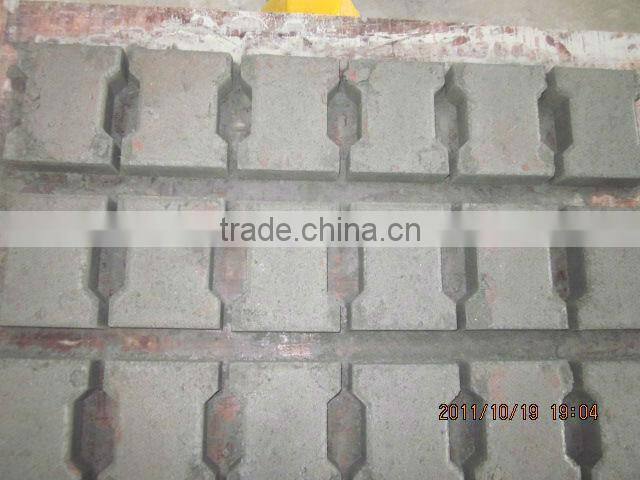

6.Block catalogue of manual hollow block maker/block former/qt4-25 :
7.certificates :
