Offset Printing Machine Tension Loadcell Replaceable for Mitsubishi
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
True Engin
Model Number:
STS-030
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Offset Printing Machine Auto Tension Controller Small Tension LoadcellNegotiableMOQ: 1 Unit -
STSR Facctory Corrugated Pipe Tension LoadcellNegotiableMOQ: 1 Unit
-
Offset Printing Machine Flange Tension SensorNegotiableMOQ: 1 Unit
-
STSF Flange Tension SensorNegotiableMOQ: 1 Unit
-
STSR Corrugated Pipe Tension SensorNegotiableMOQ: 1 Unit
Place of Origin
Hubei, China
Brand Name
True Engin
Model Number
STS-030
Use
Textile Finishing Machinery
Type
Sensor

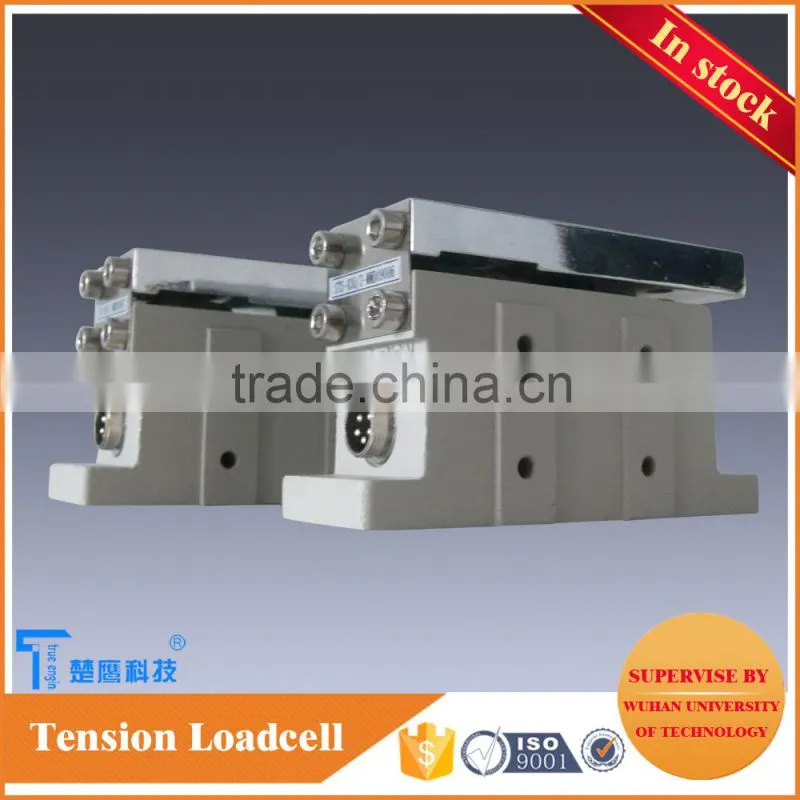

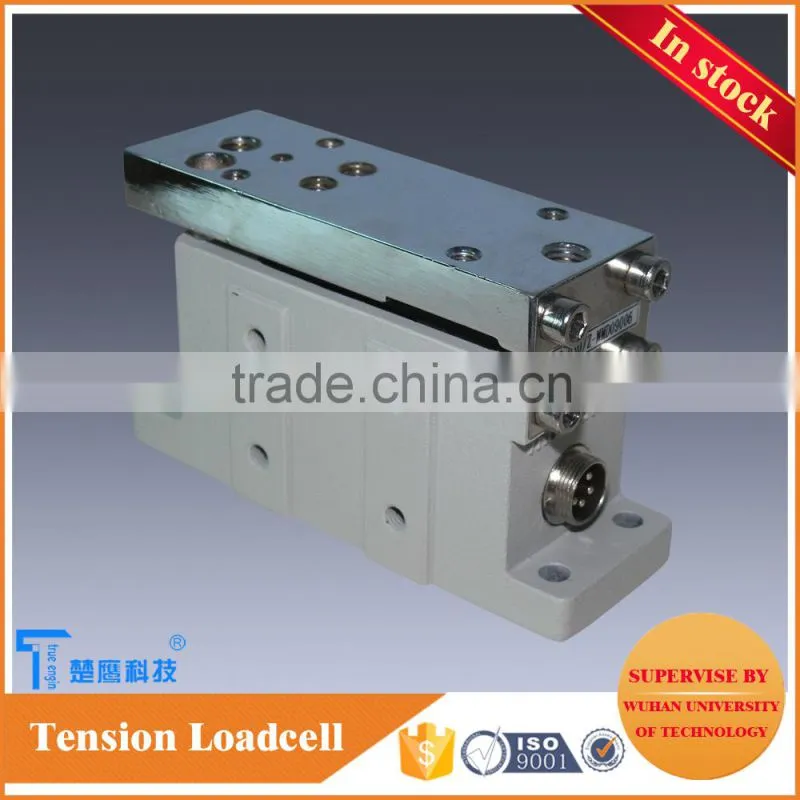

Offset printing machine Tension loadcell replaceable for Mitsubishi
DETAILS
1.This sensor is same as LX-030TD and LX-050TD in size and installation so that it can replace the tension sensor which made by Mitsubishi(modes above mentioned)
2.STS series adopt differential transformation instructure,good stablility and linear structure .It is small in size and light weight high speed and accuracy .It can be used in measure weight and force .It is the good detection choice of packaging and printing industry.
STS series technique parameters
| specifications | STS-010 | STS-020 | STS-030 | STS-050 | STS-100 | STS-200 | STS-300 |
| rated load | 10 KgF | 20 KgF | 30 KgF | 50 KgF | 100 KgF | 200 KgF | 300 KgF |
| load direction | press or traction | ||||||
| installation | pedestal tape ,suspended type,side type | ||||||
| connect cable | 4 cores shielding cable(3-6m) | ||||||
|
working supply |
5V/20mA | ||||||
|
working environment |
0-40℃ | ||||||
| size | 134mm*48mm*78mm | 150mm*68mm*78mm | |||||
| weight | 1.8Kg | 2.5Kg | |||||
