Specifications
More than 7 years experienceFirst Class R&D Dept and Intellectual property rights
mechanical motion sensor
The precision conductive plastic angular displacement sensor adopts a hard antirust aluminum case and molded
integrated conductive plastic base. Imported precious metal brush and current collecting parts, stainless steel shaft with high speed bearing ensure high linearity, long mechanical life, high resolution, less dynamic
noise and convenient and reliable installation.
Mechanical parameter:
| Electrical: | |
| Standard Resistance | 5K,10K (Ω) |
| Resistance Tolerance | ±15% |
| Independent Linearity | 0.1%, 0.2%, 0.3%, 0.5%, 1.0% |
| Electrical corner | 50mm~650mm(increasing every 25mm) |
| Power Rating | 0.04W/cm ( 70°C ) |
| Resist. Temperature Coefficient Of Wire | ≤ ±400 P.P.M/°C |
| Insulation Resistance | ≥1000MΩat 500V.D.C |
| Dielectric Strength | 1 minute at 500V(AC.RMS) |
| Output Smoothness | ≤±0.10% |
| Mechanical: | |
| Mechanical Trip | the theory electrical trip±8mm±2mm |
| work face | ≤7.5N |
| Environmental: | |
| Life Expectancy | Approx. 20,000,000(Shaft Revolutions) |
| Operating Temperature | -55°C~ +125°C |
| Vibration | 15G 2000Hz |
| Shock | 50G 11ms |
Advantage:
1. Substrate: Use the imported materials--DAP resin It has the good stability, water resistance, heat resistance, chemical resistance.
2. Electric brush and Collecting components: Use Alloy Which is made of six different Precious Metals. With the advantages of Hardness, heat resistance and corrosion resistance .
3. Lubricating oil: The lubricating oil used in the Our Products is aviation instrument lubricating oil. With Excellent high-temperature performance, mechanical stability and oxidation stability.

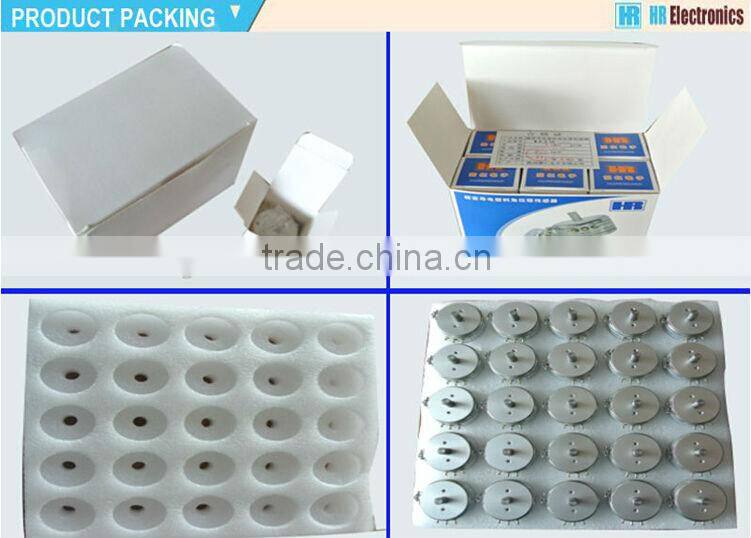

To be packed in standard packing. 1 pcs in a box; 12 boxes in a carton.
The goods can be shipped by sea, by air, or by express.
We would provide our high quality products and sincere service to meet customer demend.
