Specifications
1.Concrete Batching Machine2.ISO9001/CE/SGS
3.China famous trademark
4.Professional team
5.Min order qty: 1 set

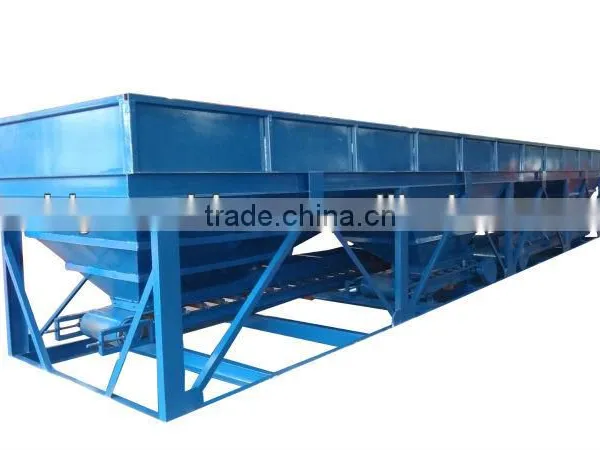

PLD Concrete Batching Machine Introduce
1.Our Concrete Batching Machine Advantages:
1).Automatically finish the proportioning and measuring of sand and stone.
2).The control system is made up of controller and strong electricity part.
3).The controller has visual features like high weighing accuracy, rapid reacting speed, stable and reliable performance, strong anti-jamming ability, simple operation, etc.
4).It can control the specified proportioning times, and accumulate the total times automatically.
5).Customers can choose the numbers of proportioning bins according to different use.
2. PLD Concrete Batching Machine main technical parameters
Model |
PL800 |
PL1200 |
PL1600 |
Capacity of Weighing Hopper (m3) |
0.8 |
1.2 |
1.6 |
Capacity of Storing Hopper (m3) |
2×2 |
3X3 |
3X8 |
Productivity (m3/h) |
48 |
60 |
80 |
Precision of Batching |
±2% |
±2% |
±2% |
Max Weighing Capability(kg) |
1500 |
2000 |
3000 |
Type of Aggregate Batched |
2 |
3 |
3 |
Height of Feeding (mm) |
2300 |
2400 |
3000 |
Power(kw) |
4.5 |
10.6 |
11.7 |
Overall Weight( kg) |
2250 |
3760 |
4820 |
Dimension(L*W*H) mm |
5600*1560*2760 |
8390*2000*2800 |
9500*2300*3300 |
