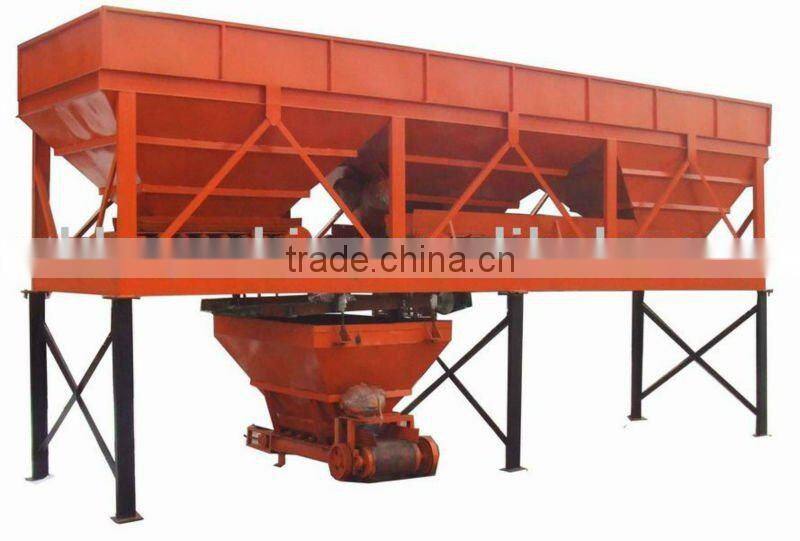

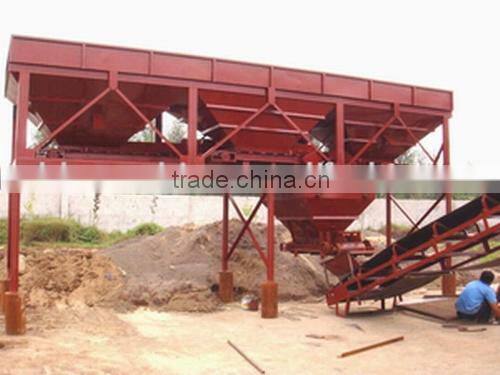

Help CenterPLD Concrete Batching Machine for Block Making Machine DONGYUE (Chinese Famous Brand)
Related Products
-
Concrete Batching Machine Plant (HZS180 DONGYUE BRAND)US$ 2,000 - 100,000MOQ: 1 Set -
JS750 Large Capacity 750L Concrete Self Loading Cement MixerUS$ 1 - 8,000MOQ: 1 Set
-
High Capacity Cheap Cement Mixer for SaleUS$ 2,301 - 2,969MOQ: 1 Set
-
Moving Type JZC Series Cement Mixer for SaleUS$ 2,301 - 2,969MOQ: 1 Set
-
High Capacity JZC Series Small Concrete MixerUS$ 2,301 - 2,969MOQ: 1 Set
Specifications
Concrete Batching MachineISO9001/CE/SGS
China famous trademark
Professional team
Min order qty: 1 set
PLD1200 Concrete Batching Machine Introduce
1.Our PLD1200 Concrete Batching Machine Advantages:
1).Automatically finish the proportioning and measuring of sand and stone.
2).The control system is made up of controller and strong electricity part.
3).The controller has visual features like high weighing accuracy, rapid reacting speed, stable and reliable performance, strong anti-jamming ability, simple operation, etc.
4).It can control the specified proportioning times, and accumulate the total times automatically.
5).Customers can choose the numbers of proportioning bins according to different use.
2. PLD1200 Concrete Batching Machine main technical parameters
Model | PL800 | PL1200 | PL1600 |
Capacity of Weighing Hopper (m3) | 0.8 | 1.2 | 1.6 |
Capacity of Storing Hopper (m3) | 2×2 | 3X3 | 3X8 |
Productivity (m3/h) | 48 | 60 | 80 |
Precision of Batching | ±2% | ±2% | ±2% |
Max Weighing Capability(kg) | 1500 | 2000 | 3000 |
Type of Aggregate Batched | 2 | 3 | 3 |
Height of Feeding (mm) | 2300 | 2400 | 3000 |
Power(kw) | 4.5 | 10.6 | 11.7 |
Overall Weight( kg) | 2250 | 3760 | 4820 |
Dimension(L*W*H) mm | 5600*1560*2760 | 8390*2000*2800 | 9500*2300*3300 |
