Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > WDD35S Conductive Platic Potentiometer

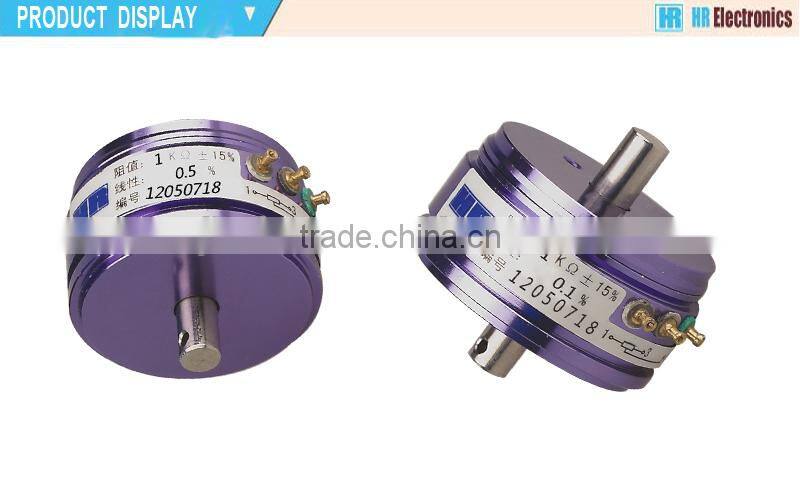

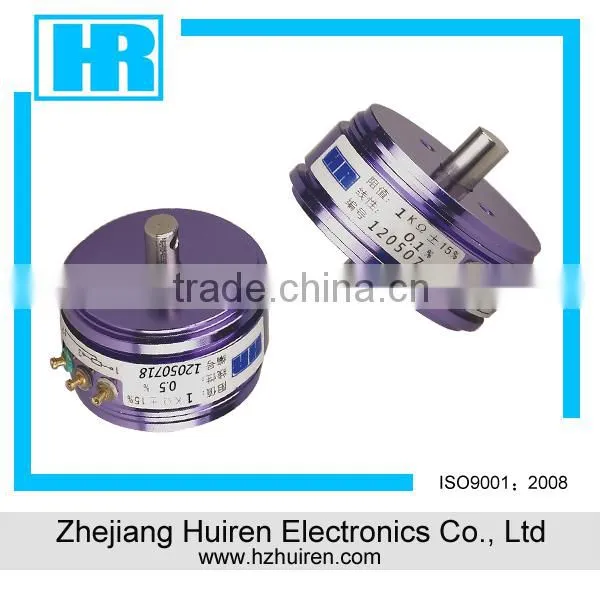

WDD35S Conductive Platic Potentiometer

US$ 7 - 15 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

WDD35S

Contact Supplier Request Quote Chat Now

Zhejiang Huiren Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI / NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name HR

Model Number WDD35S

Type Rotary Potentiometer

Technology Carbon Film

Resistance 1K,2K,3K,5K,10K

Resistance Tolerance ±15%

Rated Power 2W

Max. Operating Voltage < 24 V

Operating Temperature -55℃~+125℃

Specifications

* More than 7 years experience
* First Class R&D Dept and Intellectual property rights
* Conductive platic potentiometer

Our products are made of hard-antirust aluminum body, molded conductive plastic substrate and imported precious metal electric brush and Collecting components, stainless steel shaft matched with the high-speed bearings to ensure that the product has the excellent performances of high linearity, long mechanical life, high resolution, small dynamic noise.

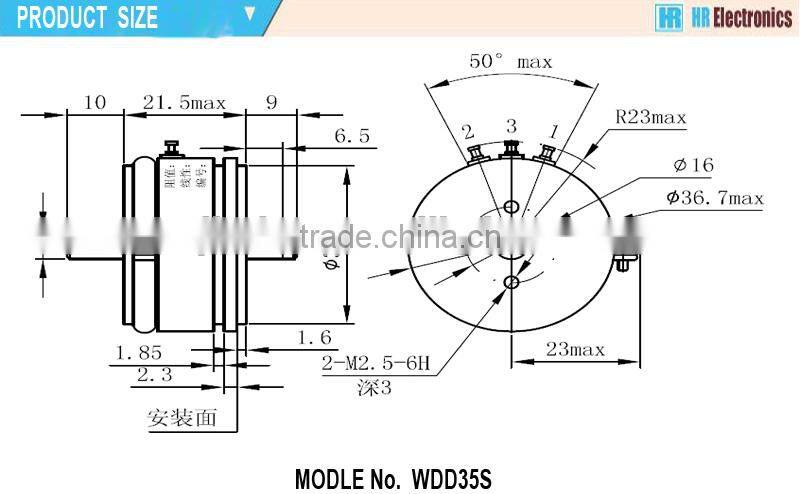

Mechanical parameter: Angular Displacement Sensor WDD35DS

Electrical:
Standard Resistance	1K, 2K, 3K, 5K (Ω)
Resistance Tolerance	±15%
Independent Linearity	0.1%, 0.2%, 0.3%, 0.5%, 1.0%
Electrical Travel	345°±2°
Power Rating	2W ( @70°C )
Resist. Temperature Coefficient Of Wire	≤ ±400 P.P.M/°C
Insulation Resistance	≥1000MΩat 500V.D.C
Dielectric Strength	1 minute at 1000V(AC.RMS)
Output Smoothness	≤±0.10%
Mechanical:
Mechanical Travel	360°(Endless)
Starting Torque (MAX.)	≤10x10-4N.M
Bearing	2 Pairs Ball Bearing
Shaft	Stainless Steel
Housing Case	Aluminum alloy
Environmental:
Life Expectancy	Approx. 50,000,000(Shaft Revolutions)
Operating Temperature	-55°C~ +125°C
Vibration	15G 2000Hz
Shock	50G 11ms

Advantage:

1. Substrate: Use the imported materials--DAP resin It has the good stability, water resistance, heat resistance, chemical resistance.

2. Electric brush and Collecting components: Use Alloy Which is made of six different Precious Metals. With the advantages of Hardness, heat resistance and corrosion resistance .

3. Lubricating oil: The lubricating oil used in the Our Products is aviation instrument lubricating oil. With Excellent high-temperature performance, mechanical stability and oxidation stability.

....
