Help CenterCarbon Potentiometer WDD35D4B
Related Products

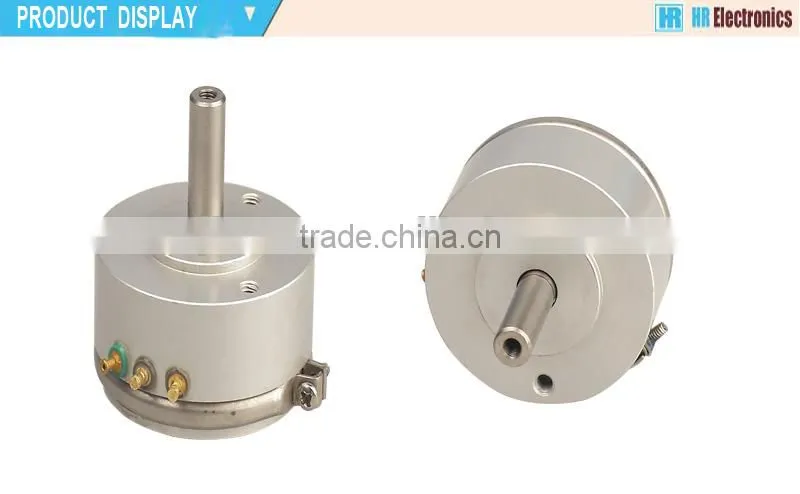

Our products are made of hard-antirust aluminum body, molded conductive plastic substrate and imported precious metal electric brush and Collecting components, stainless steel shaft matched with the high-speed bearings to ensure that the product has the excellent performances of high linearity, long mechanical life, high resolution, small dynamic noise.

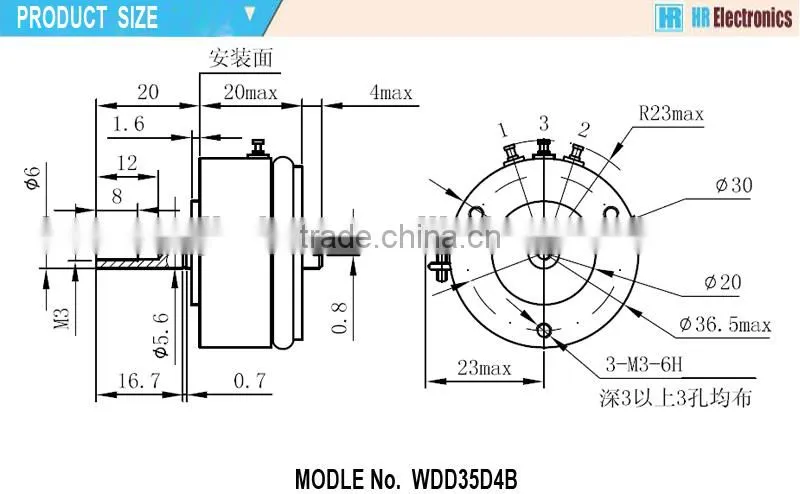

Mechanical parameter: Angular Displacement Sensor WDD35D4B
| Electrical: | |
| Standard Resistance | 1K, 2K, 3K, 5K (Ω) |
| Resistance Tolerance | ±15% |
| Independent Linearity | 0.1%, 0.2%, 0.3%, 0.5%, 1.0% |
| Electrical Travel | 345°±2° |
| Power Rating | 2W ( @70°C ) |
| Resist. Temperature Coefficient Of Wire | ≤ ±400 P.P.M/°C |
| Insulation Resistance | ≥1000MΩat 500V.D.C |
| Dielectric Strength | 1 minute at 1000V(AC.RMS) |
| Output Smoothness | ≤±0.10% |
| Mechanical: | |
| Mechanical Travel | 360°(Endless) |
| Starting Torque (MAX.) | ≤10x10-4N.M |
| Bearing | 2 Pairs Ball Bearing |
| Shaft | Stainless Steel |
| Housing Case | Aluminum alloy |
| Environmental: | |
| Life Expectancy | Approx. 50,000,000(Shaft Revolutions) |
| Operating Temperature | -55°C~ +125°C |
| Vibration | 15G 2000Hz |
| Shock | 50G 11ms |
Advantage:
1. Substrate: Use the imported materials--DAP resin It has the good stability, water resistance, heat resistance, chemical resistance.
2. Electric brush and Collecting components: Use Alloy Which is made of six different Precious Metals. With the advantages of Hardness, heat resistance and corrosion resistance .
3. Lubricating oil: The lubricating oil used in the Our Products is aviation instrument lubricating oil. With Excellent high-temperature performance, mechanical stability and oxidation stability.
....
