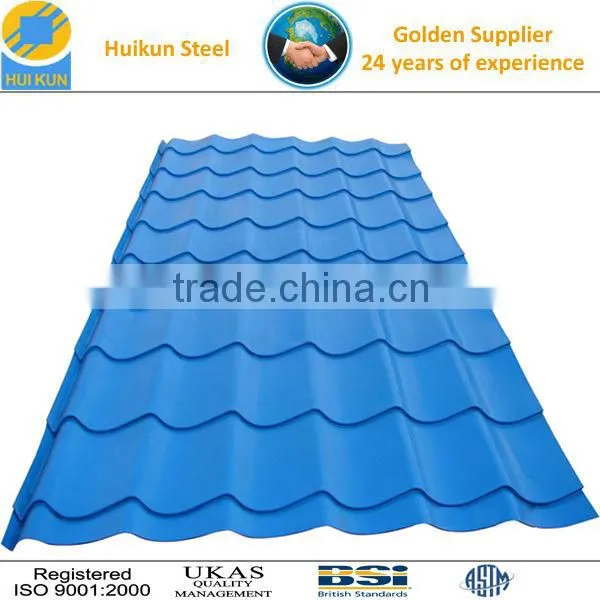

Help CenterPPGI Color Corrugated Steel Roofing
Related Products
-
Color Corrugated Steel RoofingUS$ 780 - 820MOQ: 25 Tons -
Color Steel Coil Roofing SheetUS$ 0.8 - 10MOQ: 15 Metric Tons
-
Galvanized Storey TitleUS$ 0.8 - 10MOQ: 5 Metric Tons
-
Hot Sales Storey TitleUS$ 0.8 - 10MOQ: 5 Metric Tons
-
Hot Sales Roofing Titles Blue ColorUS$ 0.8 - 10MOQ: 5 Metric Tons
Specifications
corrugated steel roofing sheet/ galvanized corrugated steel sheetzinc coating: z80-z180
thickness:0.15-0.80mmx820/840mm
Brief Introduction
1. Color Coated steel Coil is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.
2. The base metals for Color Coated Steel Coil consist of cold rolled, HDG electro-galvanized and hot-dip alu-zinc coated steel. The finish coats of Color Coated Steel Coil can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.
3. The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking, and even three-coating-and-three-baking.
4. The color of the Color Coated Steel Coil has a very wide selection, like orange, cream-colored, dark sky blue, sea blue, bright red, brick red, ivory white, porcelain blue, etc.
5. The Color Coated Steel Coil can also be classified into groups by their surface textures, namely regular prepainted sheets, embossed sheets and printed sheets.
Specification
1. Thickness: 0.3-0.8mm
2. Width: 914-1250mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-15MT
5. Available Dipped Layer: 50-150g/m2
6. Surface Texture: Normal Coated
7. Type of coating structure: 2/1 Coat the top surface of the steel sheet twice, coat the bottom surface once, and bake the sheet twice.
8. Front Side Paint Thickness: 15-25μm (bottom paint+top paint)
9. Back Side Paint Thickness: 5-10μm
Mechanical Properties
1. Mechanical properties of base metals
Grade |
Tensile Test |
||
|
Yield Strength MPa |
Tensile Strength MPa |
Elongation A80mm % ≥ |
|
SGLCC |
140-350 |
270-500 |
22 |
SGLCD |
140-300 |
270-420 |
26 |
SGLCDD |
140-260 |
270-380 |
30 |
2. Common performance of front coating
(1). Thickness: ≥20μm
(2). Pencil Hardness: 2H
(3). 60° specular glossiness of coating: >60
(4). 180°bend: ≤3T
(5). Impact: ≥9J
(6). Salt Fog Resistant: ≥500h
(7). Color difference: <3ΔE
