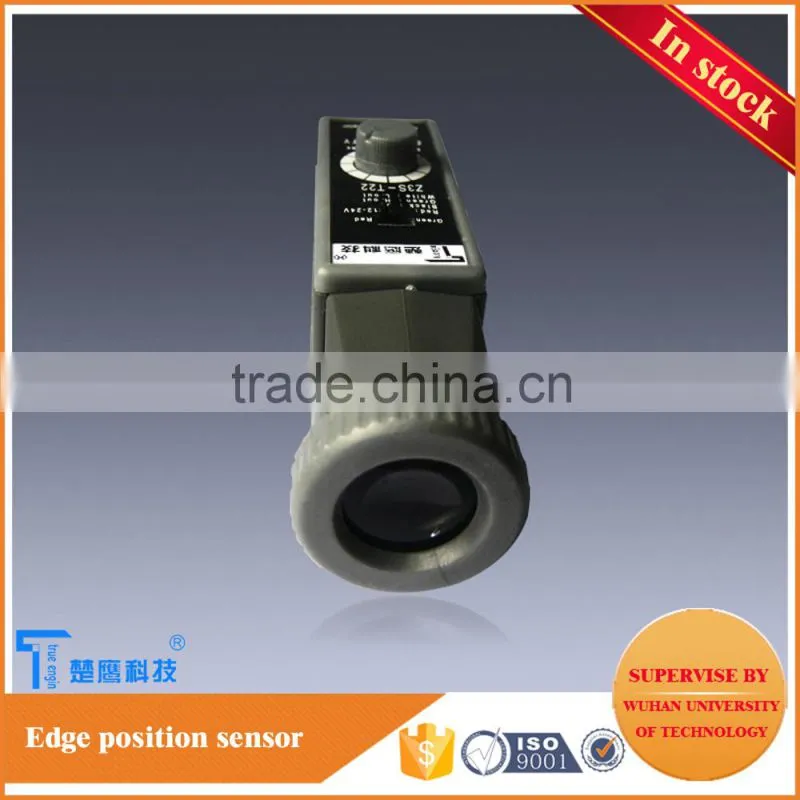

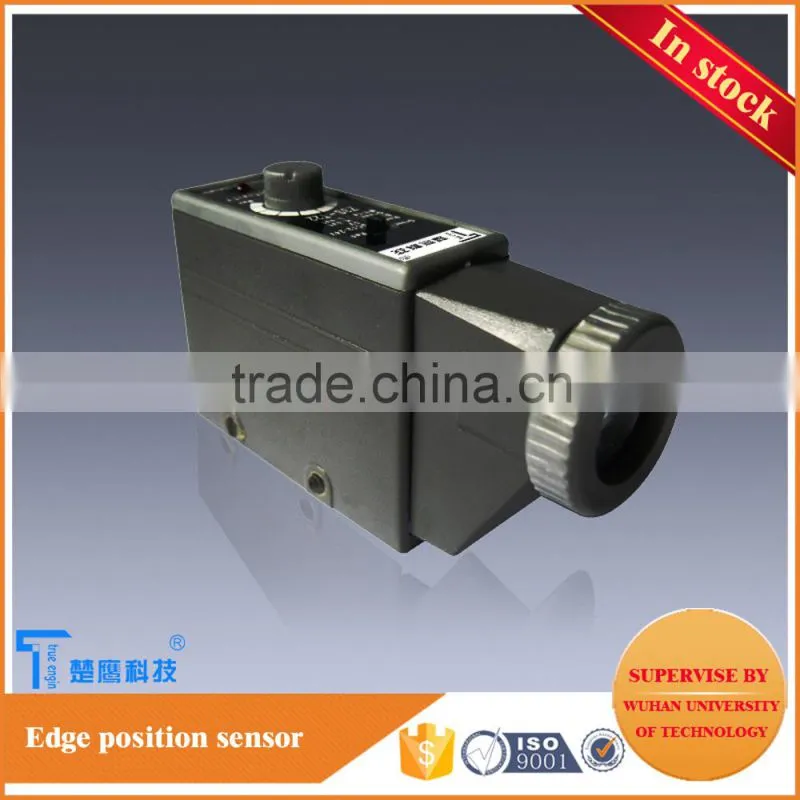

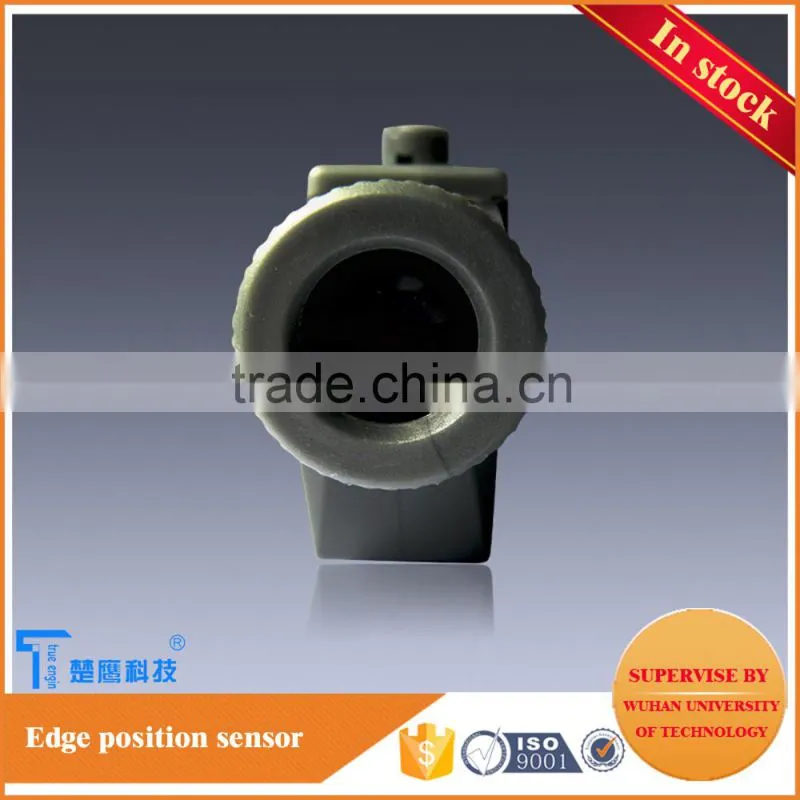

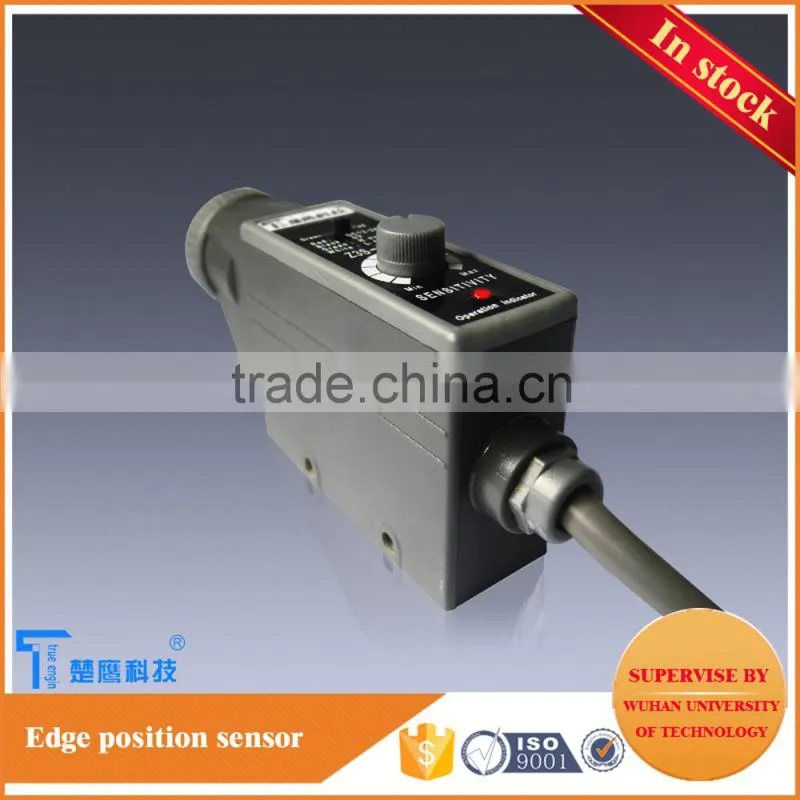

Hot sale EPS-A photoelectric position sensor
- 3000 Unit / Units per Month
- ShangHai
- T/T L/C D/P D/A Credit Card
- IRR01001 irrigation set
- Tactical Grade Inertial Measurement Unit STIM300 IMU Factory Calibrated
- Sick sensors Sick encoder Safety light curtains
- Low-power pressure switch BH-003025-003 Power plant procurement by Yoyik
- High-sensitive magnetic water level gauge UHZ-618C17 Chinese steam turbine by Yoyik
- Intelligent MONITOR JZ-MC-V for Bangladesh power system by Yoyik
Product Details
Place of Origin: | Hubei, China | Brand Name: | True Engin | Model Number: | EPS-A |
Usage: | Level Sensor | Theory: | Optical Sensor | Output: | Switching Transducer |
Product Description
EPS-A photo-electric deviation sensor
same axie catodioptric mode, single loop adjust,anti-pole protection,dampproof,it can be used with the EPC-100.
mode | light source | outgoing line | mode | light source
| outgoing line |
TR22 | red | four-core | TR2 | red | three-core |
TG22 | green | four-core | TG2 | green | three-core |
T22 | red and green | four-core | T2 | red and green | three-core |
TB22 | green and bule | four-core | TB2 | green and bule | three-core |
TW22 | green and white | four-core | TW2 | green and white | three-core |
Parameters
test | same axis reflect | test distance | 10mm±2mm |
supply voltage | DC10V-30V±10% corrugation<10% | consume current | <45mA |
chromatography | red green blue white | optic spot | φ0.5~φ1.5 |
testing perspective | light shall be verticalwith the objective deviation≤±15° | response time | 0.0~1.0ms |
output style | light , dark can be selected | output indicator | red LED |
output voltage | high level≤1.5V low level≤1.2V | load current | ≤200mA |
sensitivity | single loop adjustment | anti-ambient light | incandescent light<3000Lx ambient light<1000Lx |
temperature | operation-15℃~65℃ preservation-25℃~80℃ | outgoing line | φ5.4PVC |
protection | Ip67(anti-damp and dust free) | weight | ≈300g |
circuit protection | voltage: Reverse Power Protection output:circuit protection | ||
current production | current >200mA automatically shut down,<200mA automatically start |
