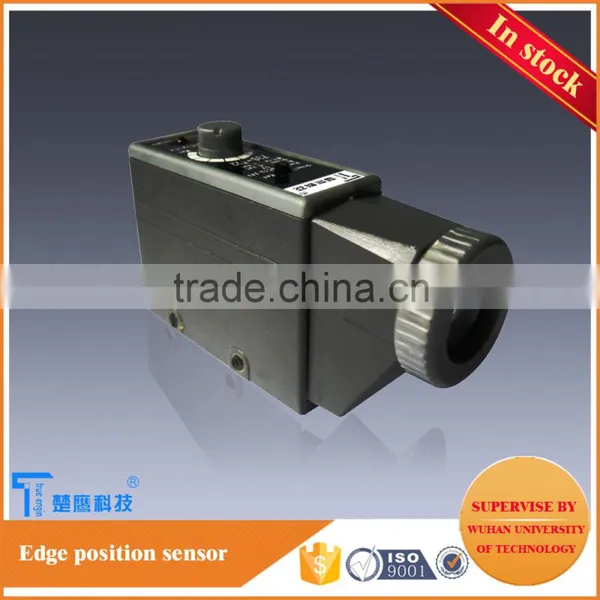

Web Guiding Control Line and Edge Tracing Sensor
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
True Engin
Model Number:
EPS-A AS5781
Usage:
Position Sensor
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Web Guiding Edge Position Sensor Photoelectric SwitchNegotiableMOQ: 1 Unit -
Web Guiding Control Ultrasonic SensorUS$ 236 - 250MOQ: 1 Unit
-
Photoelectric Edge SensorNegotiableMOQ: 1 Unit
-
True Engin EPS-C Ultrasonic SensorUS$ 236 - 250MOQ: 1 Unit
-
EPS-A Photoelectric Switch Deviation ControllerNegotiableMOQ: 1 Unit
Brand Name
True Engin
Model Number
EPS-A AS5781
Usage
Position Sensor
Theory
Other, edge sensor
Output
Digital Sensor
Web guiding control line and edge tracing sensor
DETAILS
same axis catodioptric mode, single loop adjust,anti-pole protection,dampproof,it can be used with the EPC-100.
Specifications
mode |
light source |
outgoing line |
mode |
light source
|
outgoing line |
TR22 |
red |
four-core |
TR2 |
red |
three-core |
TG22 |
green |
four-core |
TG2 |
green |
three-core |
T22 |
red and green |
four-core |
T2 |
red and green |
three-core |
TB22 |
green and bule |
four-core |
TB2 |
green and bule |
three-core |
TW22 |
green and white |
four-core |
TW2 |
green and white |
three-core |
Parameters
test |
same axis reflect |
test distance |
10mm±2mm |
supply voltage |
DC10V-30V±10% corrugation<10% |
consume current |
<45mA |
| chromatography | red green blue white |
optic spot |
φ0.5~φ1.5 |
testing perspective |
light shall be verticalwith the objective deviation≤±15° |
response time |
0.0~1.0ms |
output style |
light , dark can be selected |
output indicator |
red LED |
output voltage |
high level≤1.5V low level≤1.2V |
load current |
≤200mA |
sensitivity |
single loop adjustment |
anti-ambient light |
incandescent light<3000Lx ambient light<1000Lx |
temperature |
operation-15℃~65℃ preservation-25℃~80℃ |
outgoing line |
φ5.4PVC |
protection |
Ip67(anti-damp and dust free) |
weight |
≈300g |
circuit protection |
voltage: Reverse Power Protection output:circuit protection |
||
current production |
current >200mA automatically shut down,<200mA automatically start
|
||
Effect Pictures
photoelectric switch Sensors supply voltage DC10-30V
CERTIFICATIONS
Sensors output signal double loops 0-5V
Sensors range of checking 5mm
