Specifications
gantry crane beam1)capacity :16T
2).Span:13m~31m
3)Working Grade:A3
4)High load handling capacity

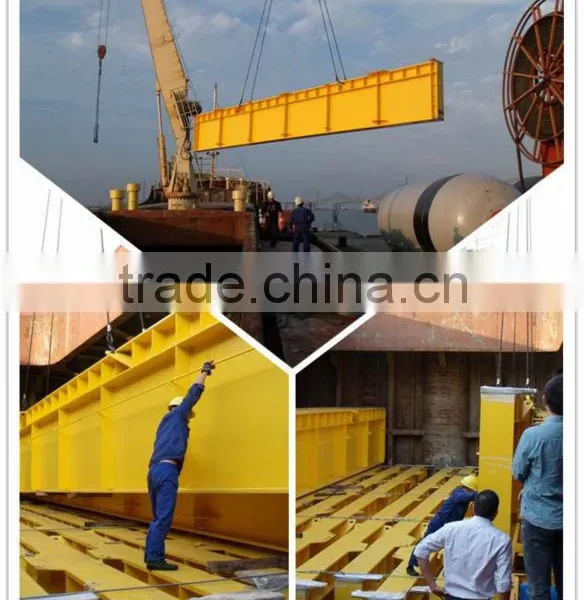

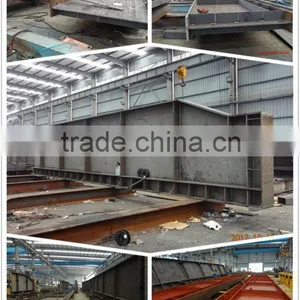

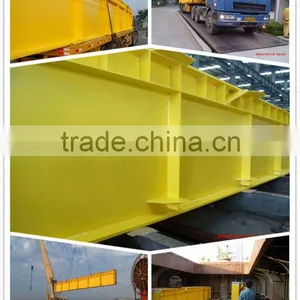

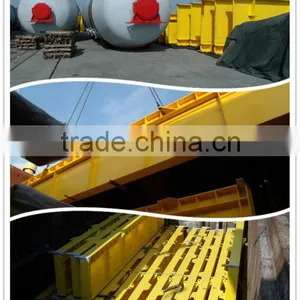

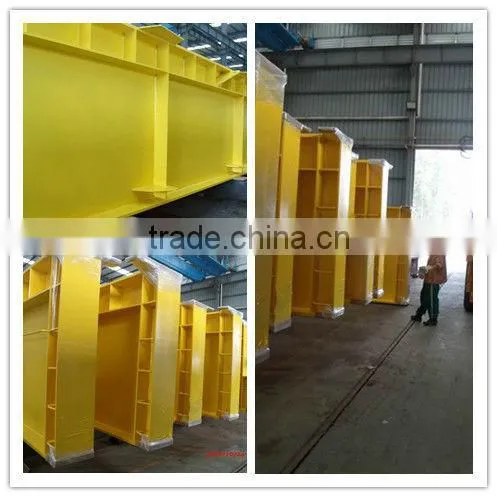

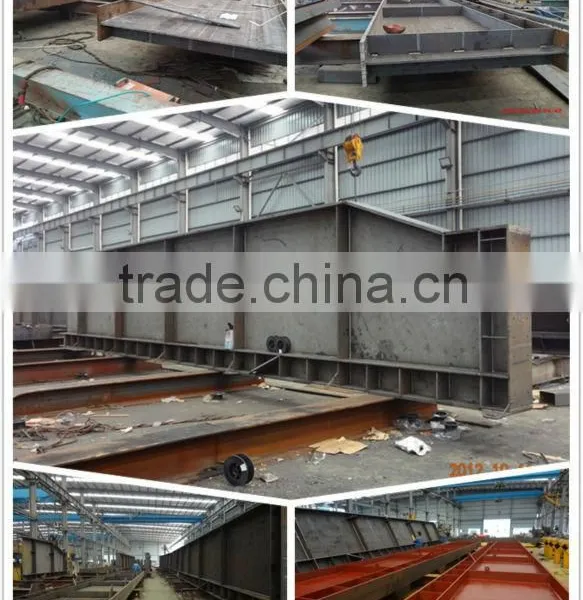

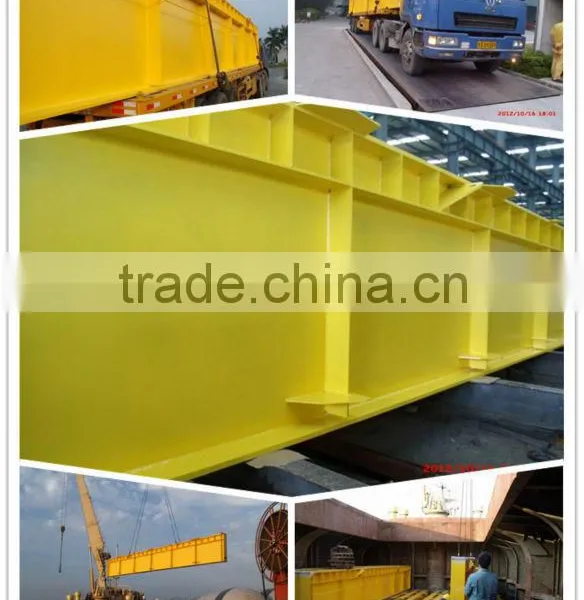

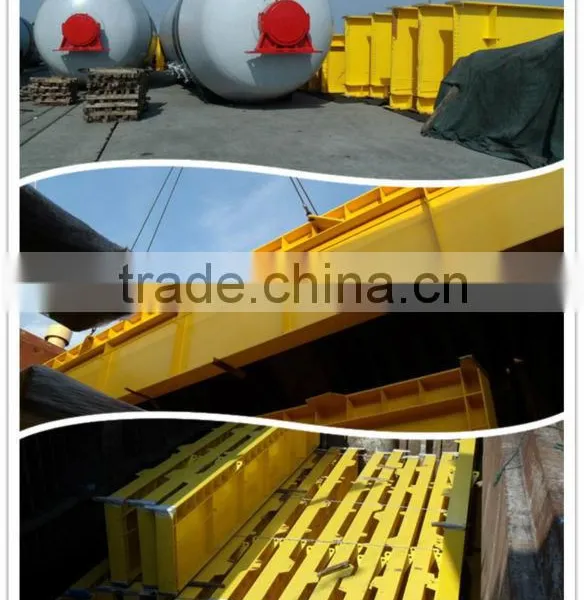

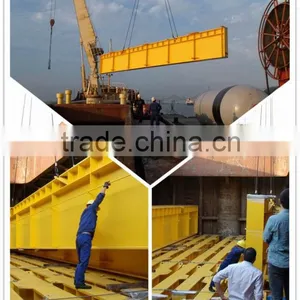

High-quality travelling crane beam
single beam electric hoist gantry crane what a gantry crane
widely used with standard CD MD Electric Rope Hoist as the lifting mechanism,and the electric hoist traversing
along the lower flange of the I-Steel of the main girder,which is made up of C-steel and I-steel.
It is a medium-size crane which travelling on rails.
|
single beam electric hoist what a gantry crane Application place
15 mobile crane is a regular crane widely used at open ground and warehouse loading and unloading materials, It has two controlliing methods,namely ground controlling and room controlling.
The Gantry Crane can be equipped with grab bucket, electric magnetic chuck, two-use and three-use pallets,handling bridge,spreader.
It can be designed in accordance with requirements of the clients and can be designed in accordance with the requirements and worksite conditions of the clients.
Single Girder loading hoist single beam electric hoist gantry crane Technical Specifications
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MOTORS: The motors used are especially crane duty suitable for frequent starting, reversing & braking in accordance with IS-325. Motors are totally enclosed in dust proof construction foot / flange mounted TEFC, Sq. cage/ Slip ring motors with integrated safety brakes, insulation class ‘F’, IP54 protection for hoisting, CT & LT motions.
BRAKES: Single/dual-disc/ shoe electromagnetic/ EHT brakes with features like automatic braking on power failure (FAIL SAFE).
GEAR BOX: Gear boxes body are fabricated with MS Plate and consists accurate hob cut helical / spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel. All gears & pinions run on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication. The helical / Spur gears are designed for adequate strength and optimum wear resistance for smooth operation & long life.
ELECTRICAL PANEL: Standard design, ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.
LIMIT SWITCH:Safety limit switches provided for all motions.
PAINTING: Two coats of primer during assembly with shot blasting & two coats of synthetic enamel paint after Erection & testing.
