Specifications
chemical safety cabinet1.Motorized front window
2.Smaller dimension,save space
3.Centrifugal fan
4.Large LCD Display

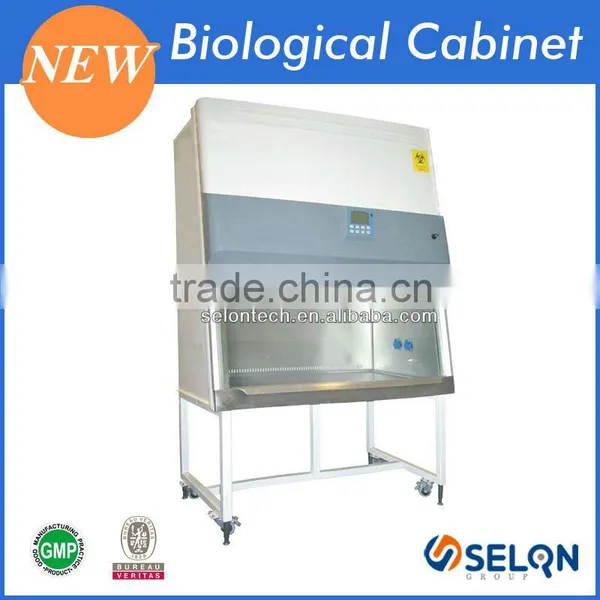

SELON BBC CLASS II BIOLOGICAL SAFETY CABINET
chemical safety cabinet, bio safety cabinet, laboratory safety cabinet
The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.
1.According to the performance criteria:
1. US Standard ANSI/NSF 49:2002
2. European Standard EN13469:2000
3. Chinese Standard YY0569-2005
2. Advantage:
*Smaller dimension, save space
*Centrifugal fan, speed adjustable; high efficiency H14 HEPA filter

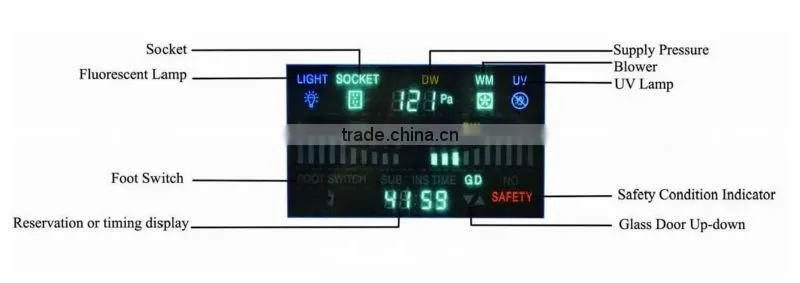

*Large LCD Display: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
*Time reserve function: it can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.
*Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.
*Motorized front window: The front sash is motorized for convenient, one-hand operation.
*Voice prompt function: Air flow alarm, filter replacing alarm and front sash height alarm.

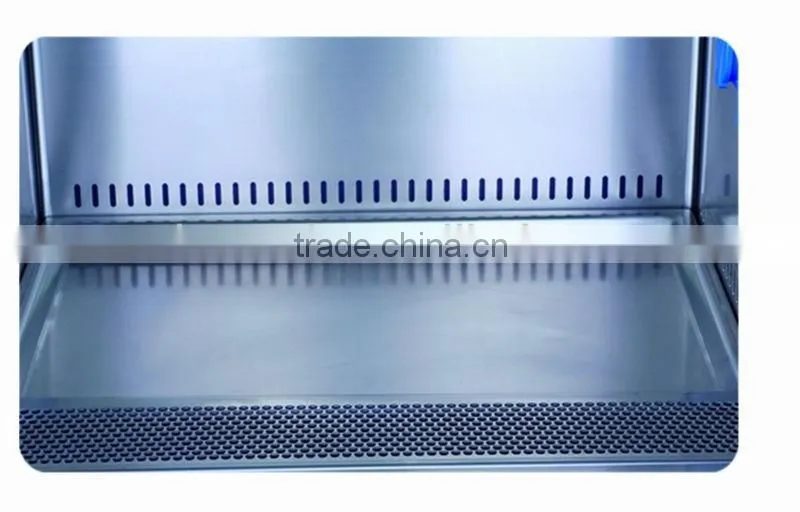

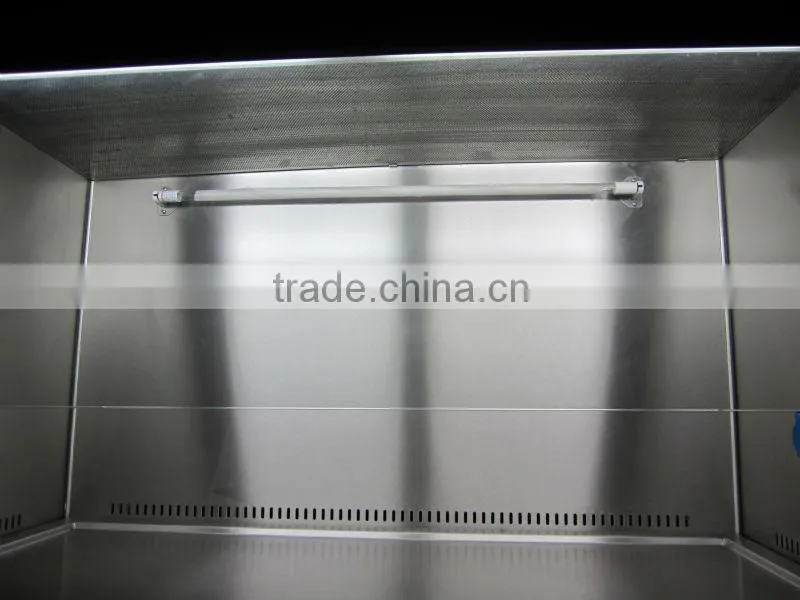

Stainless steel work area Stainless steel work table

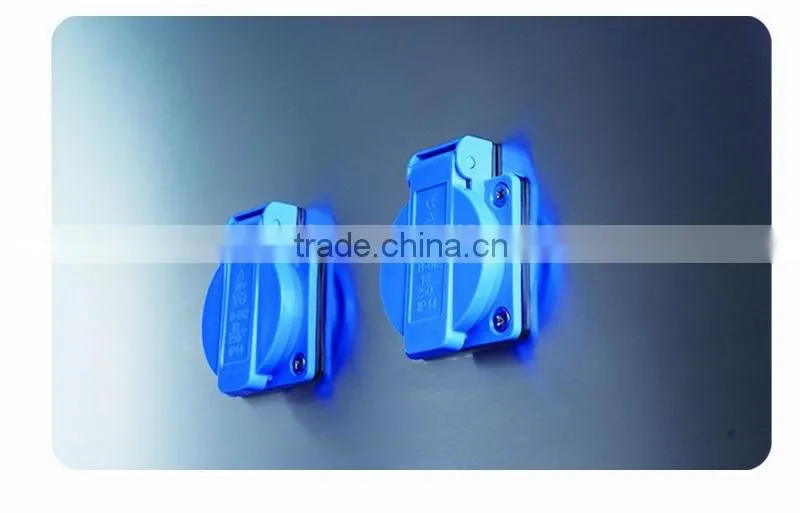

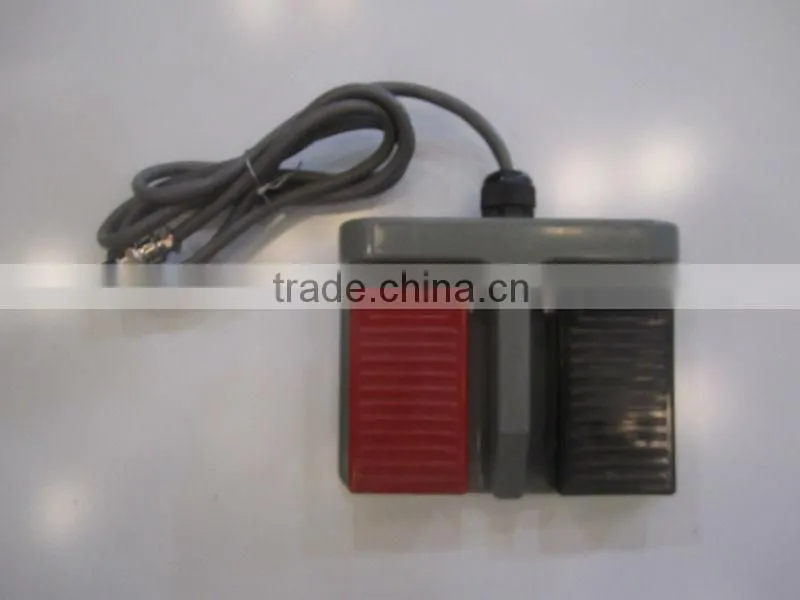

Exhaust blower Foot switch Water proof socket
Technical Parameters
Internal size(mm) |
1380× 750× 2290 mm |
External size(mm) |
1220× 600× 660 mm |
Tested Opening |
Safety height ≤200 mm |
Working Opening |
400 mm |
Inflow Velocity |
0.53 m/s |
Down Flow Velocity |
0.33 m/s |
Filter |
Two HEPA filters, with efficiency 99.999% (0.3 microns) |
Front Window |
Motorized; Two-layer toughened glass > 5 mm |
Noise |
≤ 60 dB |
UV lamp |
30 W*1 |
Fluorescent Lamp |
40 W*2 |
Lighting (Lux) |
≥1000 Lux |
Power consumption (W) |
600 W |
Water and Gas Tap |
Water Tap: 1 Gas Tap: 1 |
Waterproof Socket |
2*250W (max) |
Display |
LCD Display |
Control Sys tem |
Microprocessor |
Airflow System: |
70% air recirculation, 30% air exhaust |
Material |
Work zone interior is made of 304 stainless steel |
Base (optional) |
635 mm |
Caster Wheel |
Universal Wheel |
Clean Level |
100 |
Electrical |
110/220 V; 50/60 Hz (optional) |
Net weight |
300 kg |
Gross weight |
400 kg |
Standard Configuration |
Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp |
