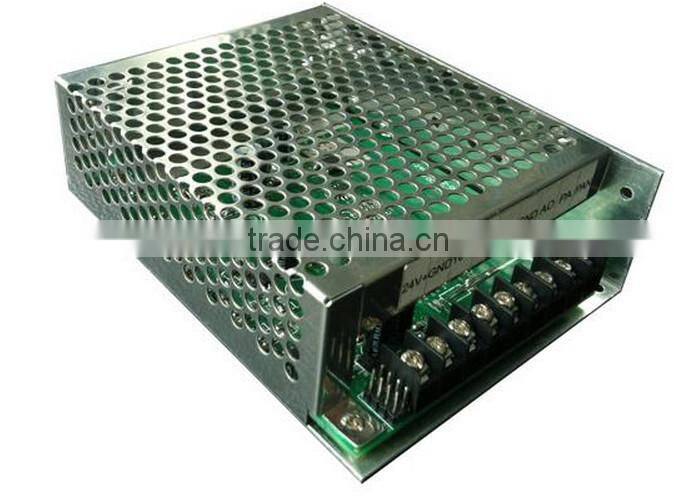

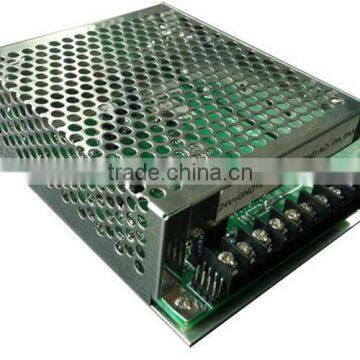

PSN 24v China power supply constant current source

EFFECT PICTURES

CHARACTERISTICS:

high power switch , fanless and efficiency

protection of overcurrent

it can be connected with external potentiometer or PLC

two output modes :contant current / constant voltage

PARAMETERS

mode		PSN24V-24V/2A	PSN24V-24V/3A	PSN24V-24V/4A
Power supply		DC 24V
output	Current output	0~2A/0~24V	0~3A/0~24V	0~4A/0~24V
	inside voltage output	+10V DC
input	external control voltage input	0~10V
	external control current input	0~20mA
size		130×100×40(mm)
Control mode		Manual control voltage control and current control
other	humidity	80%RH frostless and non-corrosion
	ground	Safe ground
	working temperature	Non corrosive gas and dusty-free anhydrous
characteristics		1.can be adjusted by external potentiometer
		2.external 0~10V adjustment can be supported by PLC 0~10V)
		3.external 0~20mA adjustment(can be supported by PLC 0~10mA)
		4.external LED display
weight		About 0.2kg
