Offset printing Magnetic powder brake Power supply

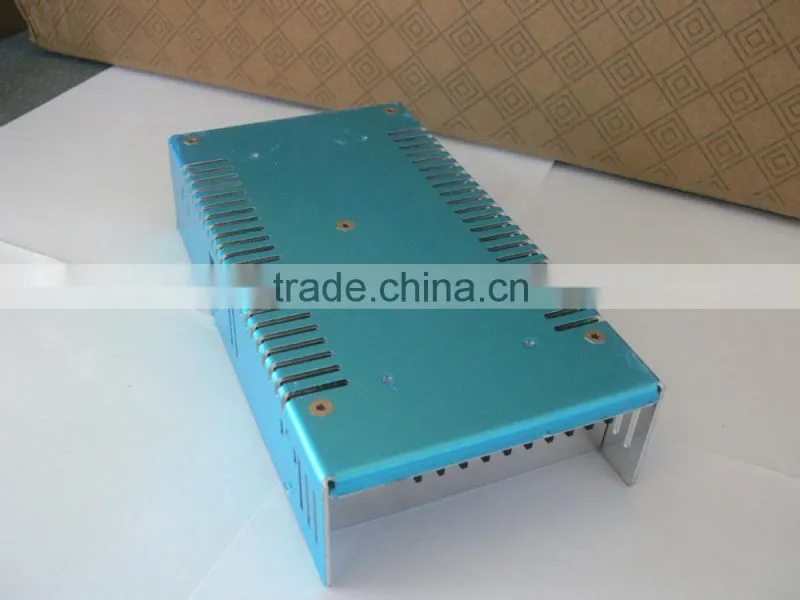

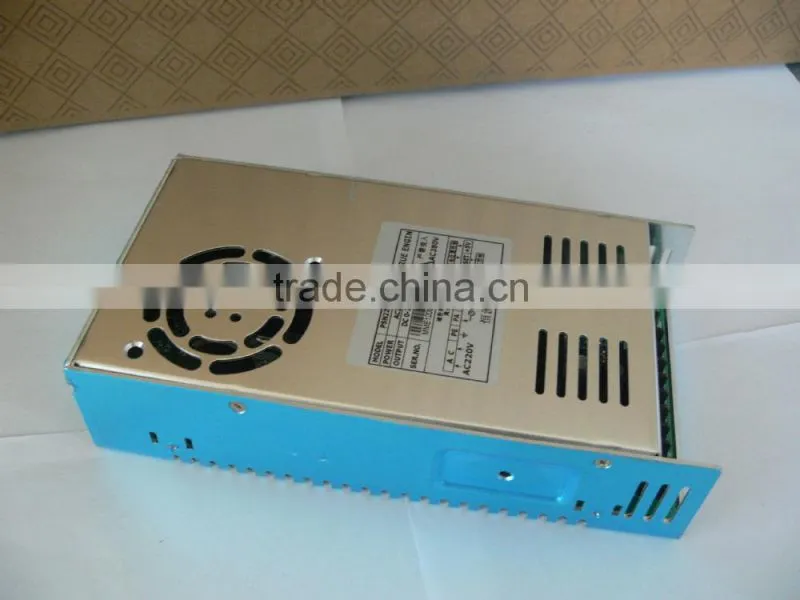

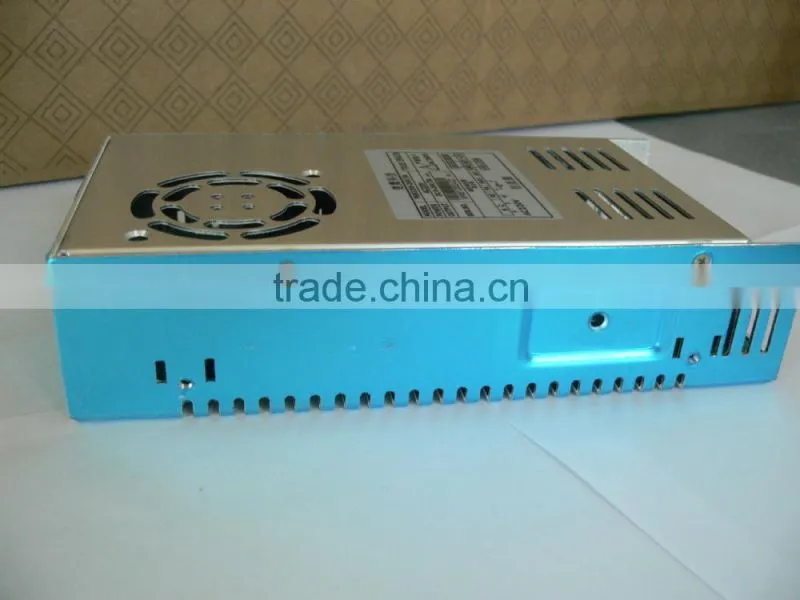

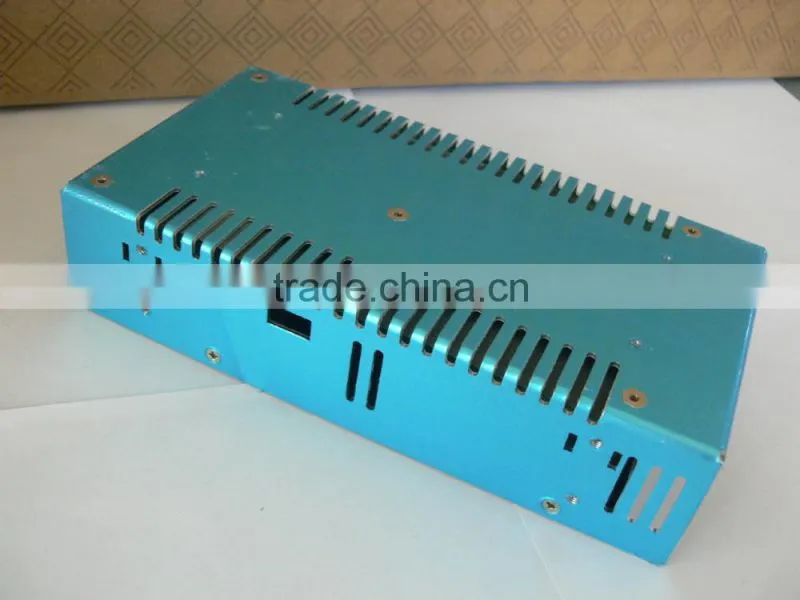

EFFECT PICTURES
Product introduction
Constant current source has the following characteristics:
1, With over-current, over-heating, short circuit protection functions;
2, with AC110V, AC220V voltage input and 24 v, 36 v, 48 v series voltage output technology;
3, With strong constant output current1 a - 8 a , complete models.
4, With two control modes (potentiometer, PLC).
Installation methods:
PSN110V
Model |
Output Voltage |
Max output power |
Max output current |
PSV110-24V |
0~24V |
100W |
4A |
PSV110-36V |
0~36V |
100W |
3A |
PSV110-48V |
0~48V |
100W |
2A |
PSN220V
Model |
Output Voltage |
Max output power |
Max output current |
PSV220-24V |
0~24V |
100W |
4A |
PSV220-36V |
0~36V |
100W |
3A |
PSV220-48V |
0~48V |
100W |
2A |
Note: constant current source output current and the magnetic powder is inversely proportional to the resistance, resistance is big, the maximum current of constant current source output will decrease,otherwise the opposite.
Terminal connection and jumper cap:
Note: AO changes according to the output current and linear .Full scale output current, AO output to 5 v.
Two kinds of control mode:
1 external PLC control:
A, PLC output 0 to 5 v, jumper cap to "5 v"
B, PLC output 0-10 v, jumper cap to "10 v"
C, PLC output is 0 to 20 ma, jumper cap to 20 ma ""
2 external potentiometer control: jumper cap to 0 to 5 v
