SELON PBC201B SAMPLE CONCENTRATOR (VISIBLE)

standard packing

Specifications

vacuum concentrator
This type of product has a unique feature: The liquid level position of sample concentration can be observe

SELON PBC201B SAMPLE CONCENTRATOR (VISIBLE)

vacuum concentrator
concentrator gold
centrifugal gold concentrator

Technical Parameters

Model	PBC201B visual 96 holes nitrogen concentrator
Temperature range	RT+5°Cto 150°C
Heating time	≤30min (40°C-150°C)
Temperature accuracy(40~100°C)	±1°C
Temperature accuracy(100~150°C)	±1.5°C
Temperature uniformity(100°C)	±1°C
Blocks Quantity	1
Display accuracy	0.1
Time range	99h59min
Nitrogen flow	0—10L/min
Nitrogen pressure	≤0.1MPa
power	400W
Dimensions	280x220x500 mm
Blocks Selection	Refer to the “blocks replacement for PBC201B Series”



Conventional configuration

The user can select the blocks from PB01- PB07, blocks can be interchanged, conventional configuration is PB04 or PB05 blocks.



Blocks replacement for  PBC201B Series

Type	Tube diameter	Tubes	Block size (mm)
PB01	10 mm	12	153.5 x 96 x 49
PB02	12 mm	12	153.5 x 96 x 49
PB03	13 mm	12	153.5 x 96 x 49
PB04	15 mm	12	153.5 x 96 x 49
PB05	16 mm	12	153.5 x 96 x 49
PB06	19 mm	12	153.5 x 96 x 49
PB07	20 mm	12	153.5 x 96 x 49





Product Numbers:  PBC201B



Product description: PBC201B visual nitrogen concentrator is mainly used for enrichment of large-volume sample or preparation (such as drug screening, hormone analysis, liquid phase, and mass spectrometry in the analysis of sample preparation). Working principle: the nitrogen into the heated surface of the sample and make the solvent t evaporate and separated rapidly, thereby reaching the sample enrichment purpose without oxygen, keep the sample purer. Nitrogen concentrator instrument can concentrated dozens of samples simultaneously, saving time and high efficient, instead of rotary evaporation instrument. This type of product has a unique feature: The liquid level position of sample concentration can be observed at any time.



Product features

1, The heater allows samples to be heated rapidly to the evaporation temperature, through the gas blow to the solution surface via needle at the same time, prompting rapid evaporation and concentration solution.

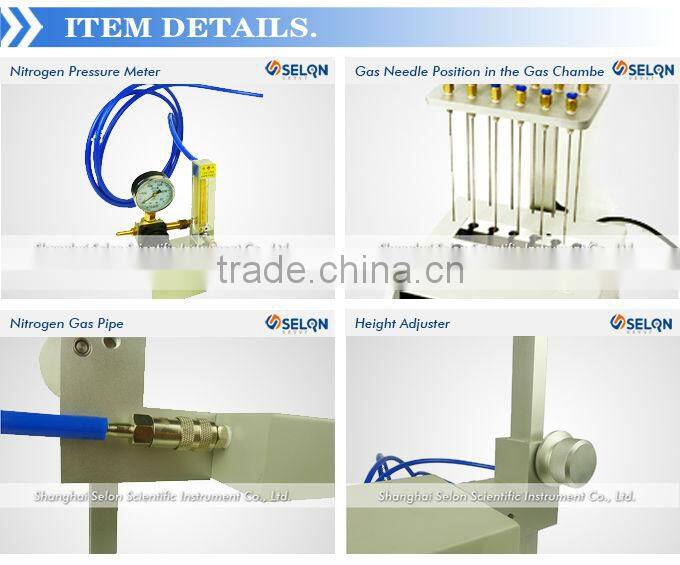

2, Gas needle position in the gas chamber can be changed, suitable for various kinds of tubes.



3, The gas chamber height can be adjusted, the length of standard gas needle is 80 mm.



4, Each blow needle can be controlled independently, can be blown, separate flow regulation, no waste of gas.



5, The entire system can be arranged in the ventilation cabinet when process concentration of toxic solvents,



6, Built in over-temperature protection device, automatic fault detection and alarm function.



7, LED display, temperature and time diminishing display, the operation is simple and convenient.



8, configured standard gas chamber and special adjustable bracket.
