VCAN0870 Philippine home ISDB-T digital tv box MPEG4 full segment USB recorder

RF Input/Demodulation

Connector Type

F-Female x1 for ANT input;F- Female x1 for LOOP THROUGH

Input Frequency

(UHF)470-866MHz,(VHF)170-230MHz

Bandwidth

6,7,8MHz

Signal Input level

-80dBm - -20dBm

Input Impedance

75Ohm

ANT Power

5V(On/Off),Imax=100mA

Demodulation Scheme

QPSK,16-QAM,64-QAM

Demodulation Type

OFDM, fully compliant with ISDB-T Standard

Media Features


JPEG,BMP,PNG

Power Supply

Adapter

AC Input

100-240VAC@50/60Hz±5%

Power Consumption

Max10W

Memory

Flash

32Mbit

DDRII Memory

512Mbit

Physical Characteristics

Physical Size

170mm * 96mm * 40mm

Front Panel

Key

POWER, CH+,CH-

Indicator

LED Indicator for Power On/Off

Remote Control Input

Infra-red receiver

Display

Option for 4 Digits 7-segment LED display

Connector

1xUSB2.0 interface

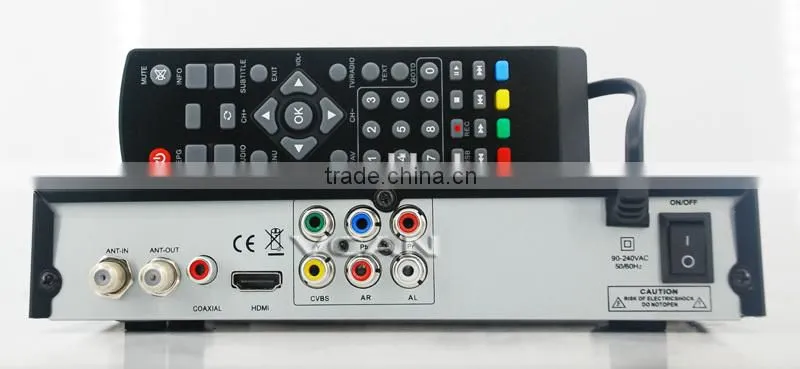

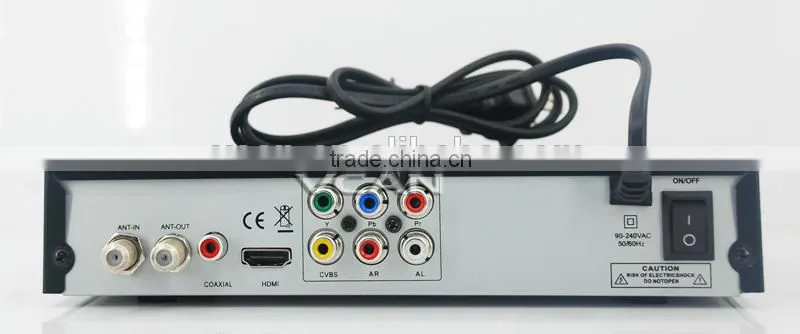

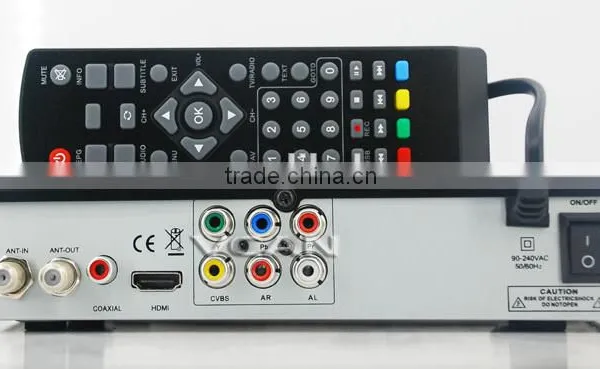

Rear Panel

Connector

2 x F-Female connector for ANT.IN and Loop THROUGH

HDMI 1.3 interface, up to 1080p

1xAV RCA( CVBS, L/R)

1xCOAXIAL

Remote Specifications

Battery

(AAA 1.5V)*2

Operation Distance

8m Min.(front distance from receiver)

Operation Angle Range

±45°(horizontal),±20°(vertical)
